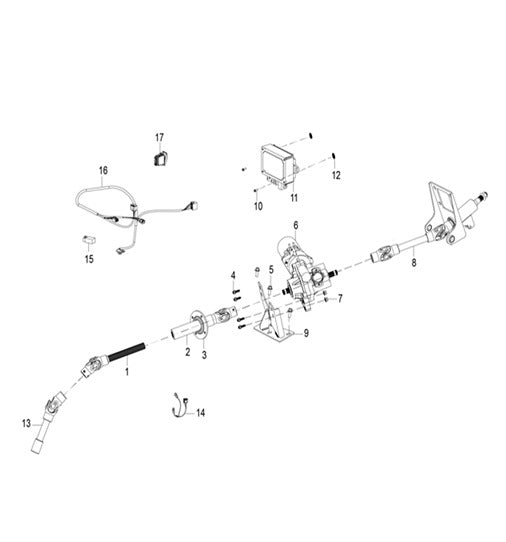

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Steering Drive Shaft Assy VB16217200 $77.08 |
B16217200 | $77.08 | |
| 2 | Steering Drive Shaft Assy IVB16217100 $82.14 |
B16217100 | $82.14 | |
| 3 | Steering Shaft Boot AssyB16210A10 $14.58 |
B16210A10 | $14.58 | |
| 4 | Hex bolt with flange M8×30GB/T 16674-M8×30 $1.12 |
GB/T 16674-M8×30 | $1.12 | |
| 5 | Hex bolt with flange M10× 1.25×25BGB16674-M10×1.25×25 $0.83 |
BGB16674-M10×1.25×25 | $0.83 | |
| 6 | EPS MotorP318001622500000 $1,307.83 |
P318001622500000 | $1,307.83 | |
| 7 | Non-metallic insert hexagon lock nut M8BGB6183.2-M8 $0.43 |
BGB6183.2-M8 | $0.43 | |
| 8 | Steering Column AssyB16211010 $271.68 |
B16211010 | $271.68 | |
| 9 | EPS Mounting BracketB16220100 $58.81 |
B16220100 | $58.81 | |
| 10 | Hex bolt with flange M6×25BGB16674-M6×25 $0.82 |
BGB16674-M6×25 | $0.82 | |
| 11 | Power Steering Controller AssyP309001623500000 $758.16 |
P309001623500000 | $758.16 | |
| 12 | Washer 6BGB96.1-6 $0.10 |
BGB96.1-6 | $0.10 | |
| 13 | Steering drive shaft assy IIB16217201 $48.60 |
B16217201 | $48.60 | |
| 14 | EPS Power LineB13433000 $54.67 |
B13433000 | $54.67 | |
| 15 | Cut-off relayP115000377200000 $14.58 |
P115000377200000 | $14.58 | |
| 16 | Power Steering Adapter CableB13445302 $46.18 |
B13445302 | $46.18 | |
| 17 | Power Steering Control SwitchB13715600 $12.64 |
B13715600 | $12.64 |
Description
Accessories Electric Power Steering El Diablo
