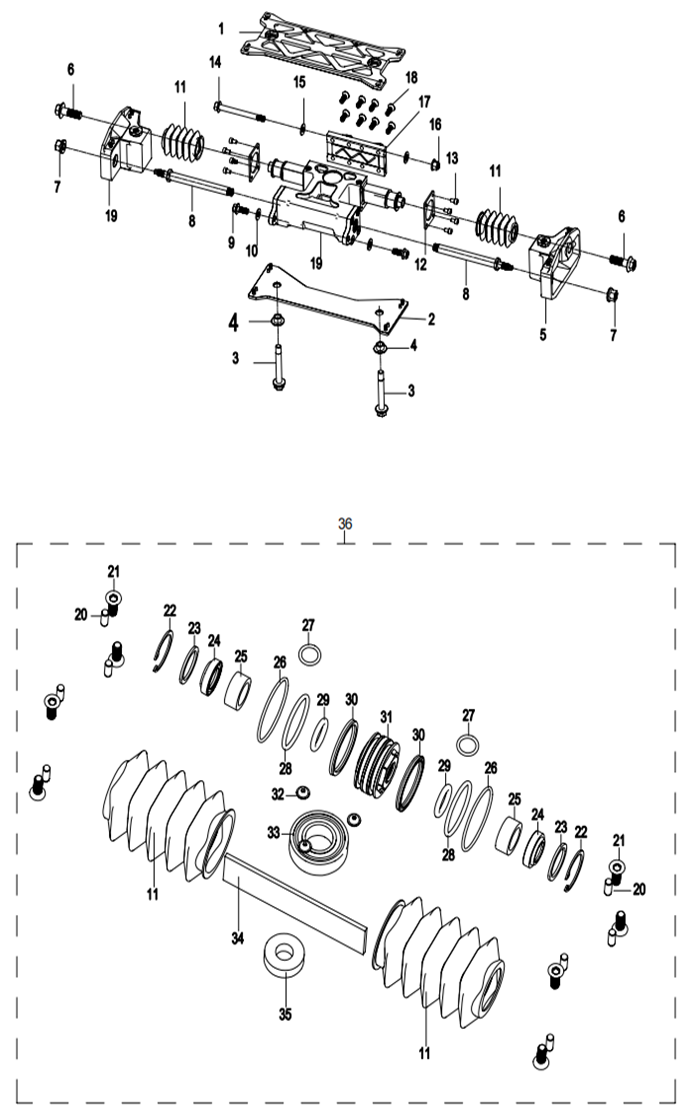

Product Mapper

Item Number Description Part Number Price
1
Upper cover plate
B1641000A $173.87
B1641000A $173.87
2
Lower cover plate
B1641000C $144.06
B1641000C $144.06
3
Bolt M12× 1.25×88
B19010300 $14.04
B19010300 $14.04
4
Nut M12× 1.25×16.5
B19030200 $8.37
B19030200 $8.37
5
Left, Steering Rack Endcap
B1641000E $299.00
B1641000E $299.00
6
Hex bolt with flange M14×45
B1641000F $9.59
B1641000F $9.59
7
Hex nut with flange M12
B1641000G $2.84
B1641000G $2.84
8
Piston rod
B1641000H $50.75
B1641000H $50.75
9
Hex bolt with flange M10×1.25×25
BGB16674-M10×1.25×25 $2.43
BGB16674-M10×1.25×25 $2.43
10
Washer 10×22×2
PJ00000906000600 $1.08
PJ00000906000600 $1.08
11
Dust-free rubber sleeve
1000U-08-Q-080022 $8.34
1000U-08-Q-080022 $8.34
12
Rack side cover
B1641000L $19.76
B1641000L $19.76
13
Inner hex bolt with flange M6×10
B1641000M $0.41
B1641000M $0.41
14
Hex bolt with flange M10×1.25×110
BGB16674-M10×1.25×110 $10.53
BGB16674-M10×1.25×110 $10.53
15
Washer 10×22×2
PJ00000906000600 $1.08
PJ00000906000600 $1.08
16
Hex nut with flange M10×1.25
Q1851025-0 $0.95
Q1851025-0 $0.95
17
Rack rear cover
1000U-08-Q-080005 $80.39
1000U-08-Q-080005 $80.39
18
Screw
B1641000P $1.22
B1641000P $1.22
19
Right, Steering Rack Endcap
B1641000R $299.00
B1641000R $299.00
20
Locating pin
1000U-08-Q-080023 $0.81
1000U-08-Q-080023 $0.81
21
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
22
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
23
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
24
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
25
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
26
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
27
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
28
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
29
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
30
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
31
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
32
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
33
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
34
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
35
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
36
Hexagon socket countersunk head screw M6×10
B1641000T $0.27
B1641000T $0.27
Description
Steering, Rack
