Seat assembly(Suede Standard&Foam)

$899.53 View Item

Seat Assembly(Suede Standard&Air)

$886.90 View Item

Seat Assembly(Vinyl Standard&Foam)

$931.13 View Item

Seat Assembly(Vinyle Standard&Air)

$918.49 View Item

Seatbelt (Rear w/o sensor)

$153.48 View Item

Hex bolt with flange M10× 1.25×30

$2.44 View Item

Hex bolt with flange M10× 1.25×25

$0.83 View Item

Hex bolt with flange M8× 16

$0.43 View Item

Seat mount bracket assembly I

$10.55 View Item

Rectangular screw damping pad C

$4.62 View Item

Hex nut with flange M8

$0.97 View Item

Product Mapper

Item Number Description Part Number Price
1-1
Seat assembly(Suede Standard&Foam)
B17141000 $899.53 		B17141000 $899.53
1-2
Seat Assembly(Suede Standard&Air)
B17141020 $886.90 		B17141020 $886.90
1-3
Seat Assembly(Vinyl Standard&Foam)
B17141030 $931.13 		B17141030 $931.13
1-4
Seat Assembly(Vinyle Standard&Air)
B17141040 $918.49 		B17141040 $918.49
2
Seatbelt (Rear w/o sensor)
B17511010 $153.48 		B17511010 $153.48
3
Hex bolt with flange M10× 1.25×30
BGB16674-M10×1.25×30 $2.44 		BGB16674-M10×1.25×30 $2.44
4
Hex bolt with flange M10× 1.25×25
BGB16674-M10×1.25×25 $0.83 		BGB16674-M10×1.25×25 $0.83
5
Hex bolt with flange M8× 16
BGB16674-M8×16 $0.43 		BGB16674-M8×16 $0.43
6
Seat mount bracket assembly I
B17151001 $10.55 		B17151001 $10.55
7
Rectangular screw damping pad C
PJ00000931550200 $4.62 		PJ00000931550200 $4.62
8
Hex nut with flange M8
BGB6177.1-M8 $0.97 		BGB6177.1-M8 $0.97
Description

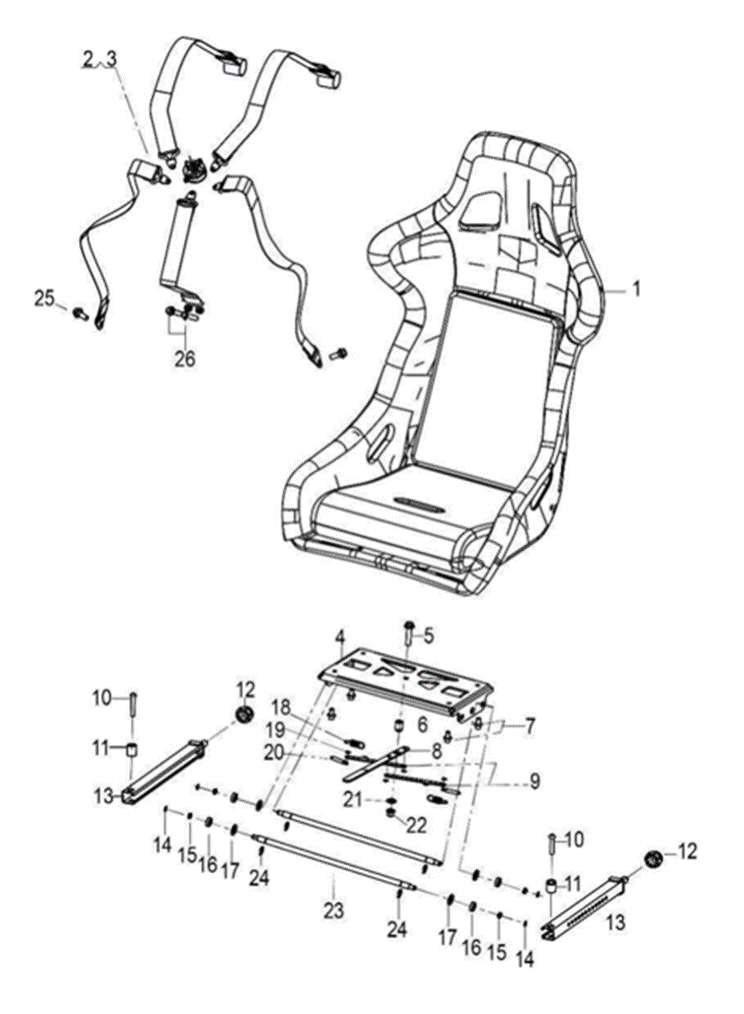

Seat, Rear
