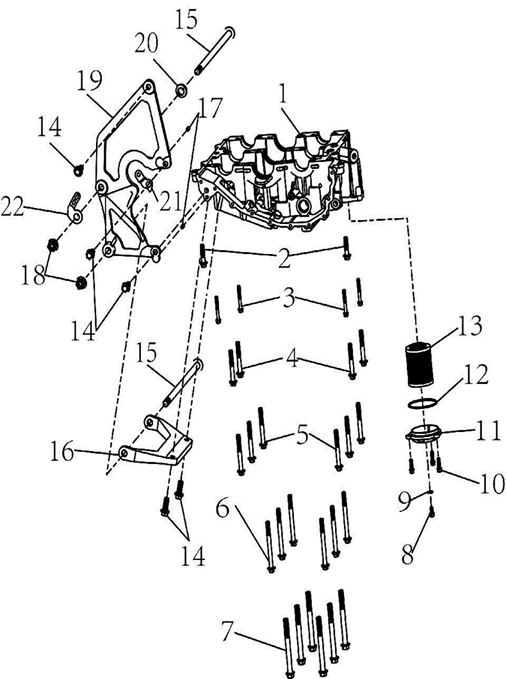

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Lower crankcase'E01120000 $499.61 |
'E01120000 | $499.61 | |
| 2 | Hex bolt with flange M8× 35'BGB16674-M8×35 $1.35 |
'BGB16674-M8×35 | $1.35 | |
| 3 | Hex bolt with flange M6×45'BGB5787-M6×45 $0.81 |
'BGB5787-M6×45 | $0.81 | |
| 4 | Hex bolt with flange M8× 60'BGB16674-M8×60 $1.76 |
'BGB16674-M8×60 | $1.76 | |
| 5 | Hex bolt with flange M8×70'BGB16674-M8×70 $2.03 |
'BGB16674-M8×70 | $2.03 | |
| 6 | Hex bolt with flange M8×90'BGB16674-M8×90 $2.70 |
'BGB16674-M8×90 | $2.70 | |
| 7 | Hex bolt with flange M10×105-32'BGB5787-M10×105-32 $10.40 |
'BGB5787-M10×105-32 | $10.40 | |
| 8 | Hex bolt with flange M6×10'BGB5787-M6×10 $0.41 |
'BGB5787-M6×10 | $0.41 | |
| 9 | Aluminum washer 6×12×1.5'PJ00000906010100 $0.41 |
'PJ00000906010100 | $0.41 | |
| 10 | Hex bolt with flange M6× 20'BGB5787-M6×20 $0.54 |
'BGB5787-M6×20 | $0.54 | |
| 11 | Oil filter coverE01520500 $19.98 |
E01520500 | $19.98 | |
| 12 | O-ring 61.5×2.4'PJ00000912016400 $11.07 |
'PJ00000912016400 | $11.07 | |
| 13 | Oil Filter'E01522A00 $45.00 |
'E01522A00 | $45.00 | |
| 14 | Hex bolt with flange M10× 1.25×25'BGB16674-M10×1.25×25 $2.43 |
'BGB16674-M10×1.25×25 | $2.43 | |
| 15 | Hex bolt with flange M12×1.25×310E02720300 $19.93 |
E02720300 | $19.93 | |
| 16 | Lower engine mount'E00010400 $97.20 |
'E00010400 | $97.20 | |
| 17 | Cylindrical pin φ6×12'PJ00000908010100 $1.76 |
'PJ00000908010100 | $1.76 | |
| 18 | Nut M12× 1.25×16.5B19030200 $8.24 |
B19030200 | $8.24 | |
| 19 | Front engine mount'E00010300 $127.58 |
'E00010300 | $127.58 | |
| 20 | Flat washer φ15×φ28×2BGB97.1-14 $0.68 |
BGB97.1-14 | $0.68 | |
| 21 | Flat washer φ15×φ28×2BGB97.1-14 $0.68 |
BGB97.1-14 | $0.68 | |
| 22 | Flat washer φ15×φ28×2BGB97.1-14 $0.68 |
BGB97.1-14 | $0.68 |
Description
ENGINE - LOWER CRANKCASE ASSEMBLY 1
