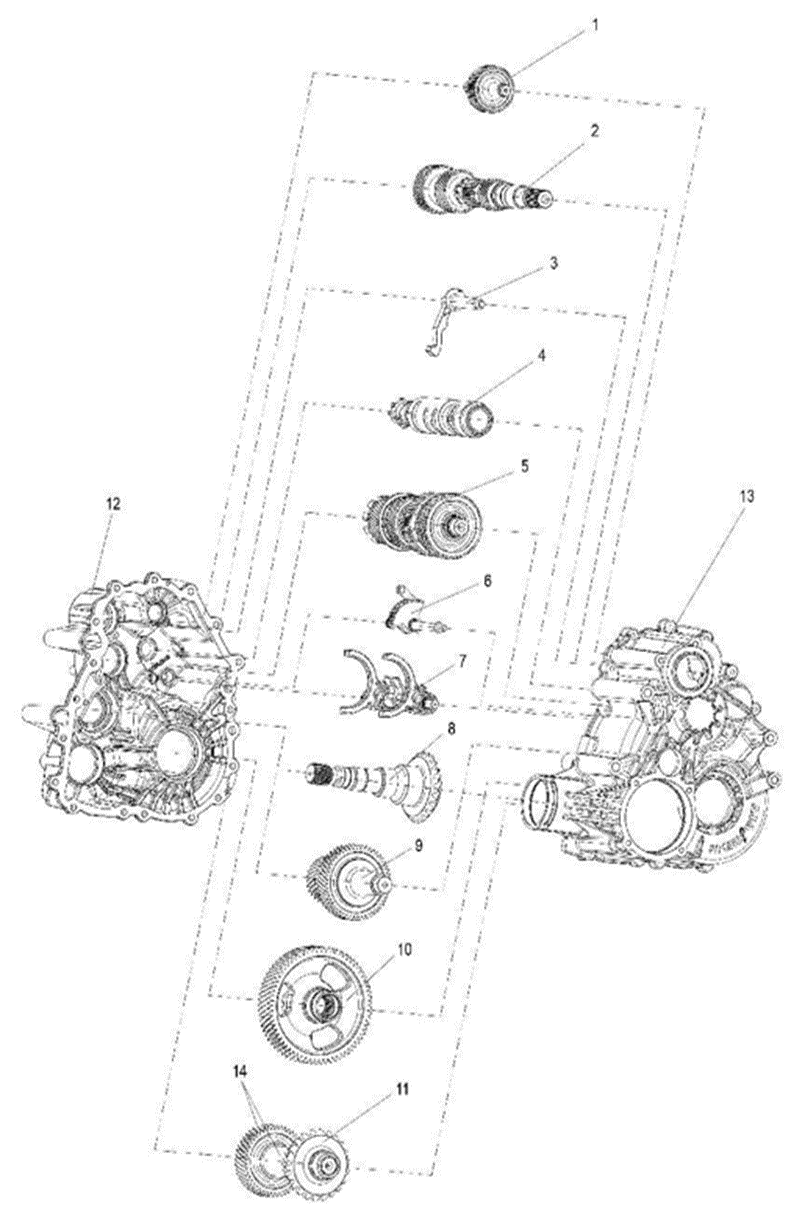

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Reverse intermediate shaftE02326000 $165.36 |
E02326000 | $165.36 | |
| 2 | Input shaftE02321000 $347.69 |
E02321000 | $347.69 | |
| 3 | Parking component20001337001 $9.56 |
20001337001 | $9.56 | |
| 4 | Shifting drum26014337002 $610.62 |
26014337002 | $610.62 | |
| 5 | Intermediate shaft I assemblyE02227A00 $975.20 |
E02227A00 | $975.20 | |
| 6 | Gear shift component20002337001 $49.82 |
20002337001 | $49.82 | |
| 7 | Fork assy20003337001 $302.05 |
20003337001 | $302.05 | |
| 8 | Rear diff output driven gearE02712302 $463.36 |
E02712302 | $463.36 | |
| 9 | Countershaft Ⅱ assyE02323000 $212.02 |
E02323000 | $212.02 | |
| 10 | CVJ output gear20004337001 $357.21 |
20004337001 | $357.21 | |
| 11 | Rear diff output main gearE02712301 $239.52 |
E02712301 | $239.52 | |
| 12 | Rear diff case coverE02720100 $625.00 |
E02720100 | $625.00 | |
| 13 | Rear diff case bodyE02720200 $790.68 |
E02720200 | $790.68 | |
| 14 | Intermediate shaft III assemblyE02324A00 $509.29 |
E02324A00 | $509.29 |
Description
Rear Differential
