Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Left front coverE01140100 $200.15 |
E01140100 | $200.15 | |
| 2 | Positioning pin φ8×φ6.5×12PJ00000908020100 $0.08 |
PJ00000908020100 | $0.08 | |
| 3 | Left front cover gasketE01140201 $24.30 |
E01140201 | $24.30 | |
| 4 | Inner hex cylindrical head screw M5×12BGB70-M5×12 $0.20 |
BGB70-M5×12 | $0.20 | |
| 5 | Spring washer 5BGB93-5 $0.04 |
BGB93-5 | $0.04 | |
| 6 | Crankshaft position sensorE03911001 $35.32 |
E03911001 | $35.32 | |
| 7 | Oil duct plug M18 × 1.5 ×8.5E01120510 $2.03 |
E01120510 | $2.03 | |
| 8 | Combined seal ringφ18.4×φ25×290617000001 $15.39 |
90617000001 | $15.39 | |
| 9 | Hex bolt with flange M6×20BGB5787-M6×20 $0.16 |
BGB5787-M6×20 | $0.16 | |
| 10 | Hex bolt with flange M6×35BGB5787-M6×35 $0.24 |
BGB5787-M6×35 | $0.24 | |
| 11 | Hex bolt with flange M6×30BGB5787-M6×30 $0.20 |
BGB5787-M6×30 | $0.20 | |
| 12 | O-ring 13.4 × 2.35PJ00000912011400 $2.71 |
PJ00000912011400 | $2.71 | |
| 13 | Viewing hole coverE01100200 $2.39 |
E01100200 | $2.39 | |
| 14 | Oil seals 36×55×8PJ00000911014601 $11.50 |
PJ00000911014601 | $11.50 | |
| 15 | Left front cover oil seal pressing plateE09311700 $9.11 |
E09311700 | $9.11 | |
| 16 | Hex countersunk screw M4×10BGB70.3-M4×10 $0.73 |
BGB70.3-M4×10 | $0.73 | |
| 17 | Aluminum washer 6×12×1.5PJ00000906010100 $0.41 |
PJ00000906010100 | $0.41 | |
| 18 | Hex bolt with flange M6×12BGB5787-M6×12 $0.16 |
BGB5787-M6×12 | $0.16 | |
| 19 | O-ring 34.2×2.5'PJ00000912014500 $3.77 |
'PJ00000912014500 | $3.77 | |
| 20 | Water pump assemblyE01970000 $113.12 |
E01970000 | $113.12 | |
| 21 | Water pump assemblyE01970000 $113.12 |
E01970000 | $113.12 | |
| 22 | Water pump assemblyE01970000 $113.12 |
E01970000 | $113.12 | |
| 23 | Water pump assemblyE01970000 $113.12 |
E01970000 | $113.12 | |
| 24 | Water pump assemblyE01970000 $113.12 |
E01970000 | $113.12 |
Description

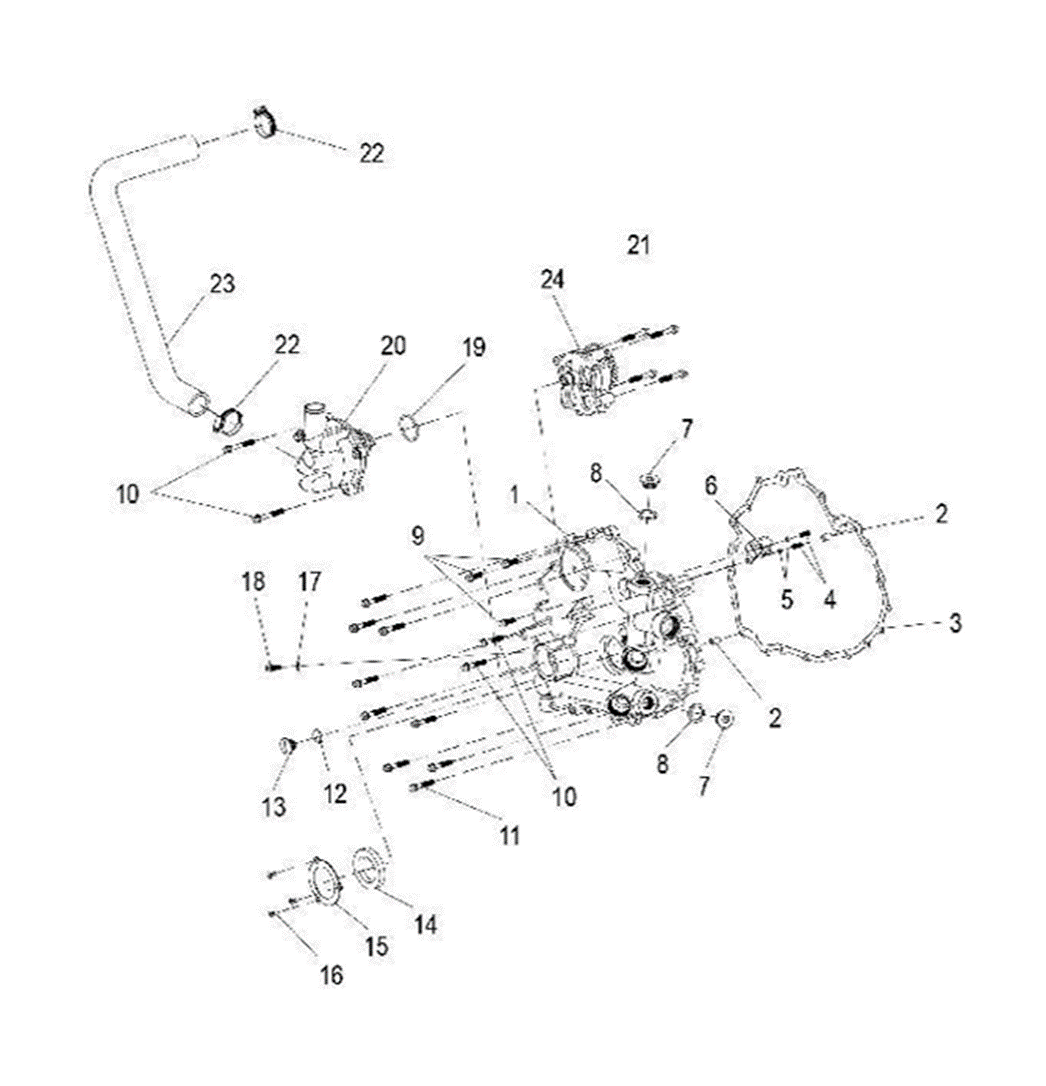

Engine Left Front Cover Assembly
