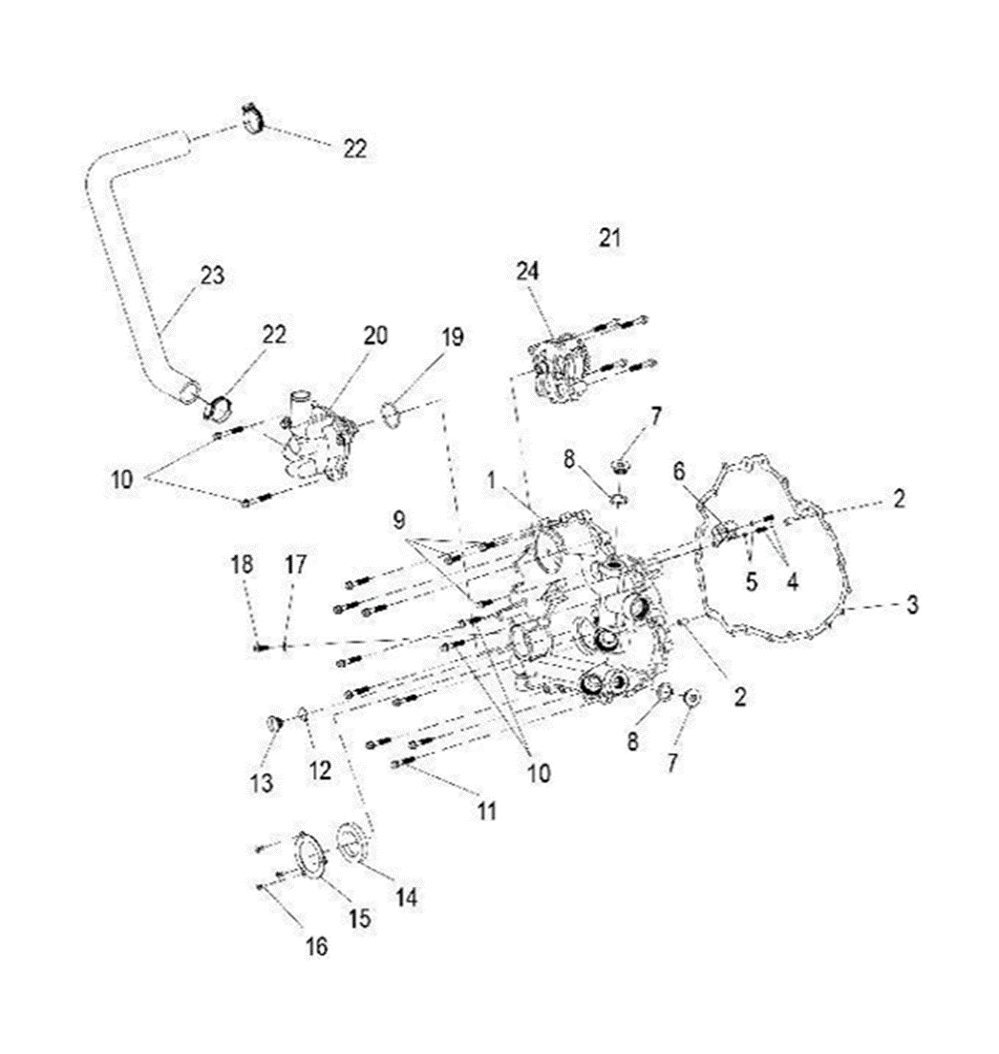

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Left front coverE01140100 $240.18 |
E01140100 | $240.18 | |
| 2 | Positioning pin φ8×φ6.5×12PJ00000908020100 $0.10 |
PJ00000908020100 | $0.10 | |
| 3 | Left front cover gasketE01140201 $29.16 |
E01140201 | $29.16 | |
| 4 | Inner hex cylindrical head screw M5×12BGB70-M5×12 $0.24 |
BGB70-M5×12 | $0.24 | |
| 5 | Spring washer 5BGB93-5 $0.05 |
BGB93-5 | $0.05 | |
| 6 | Crankshaft position sensorE03911001 $42.38 |
E03911001 | $42.38 | |
| 7 | Oil duct plug M18 × 1.5 ×8.5E01120510 $2.44 |
E01120510 | $2.44 | |
| 8 | Combined seal ringφ18.4×φ25×290617000001 $18.47 |
90617000001 | $18.47 | |
| 9 | Hex bolt with flange M6× 20BGB5787-M6×20 $0.65 |
BGB5787-M6×20 | $0.65 | |
| 10 | Hex bolt with flange M6×35BGB5787-M6×35 $0.97 |
BGB5787-M6×35 | $0.97 | |
| 11 | Hex bolt with flange M6×30BGB5787-M6×30 $0.82 |
BGB5787-M6×30 | $0.82 | |
| 12 | MSRP: |
MSRP: |
Liquid error (snippets/part-product-form line 13): product form must be given a product
|
|
| 13 | Viewing hole coverE01100200 $2.87 |
E01100200 | $2.87 | |
| 14 | Oil seals 36×55×8PJ00000911014601 $13.80 |
PJ00000911014601 | $13.80 | |
| 15 | Left front cover oil seal pressing plateE09311700 $10.93 |
E09311700 | $10.93 | |
| 16 | Hex countersunk screw M4×10BGB70.3-M4×10 $2.92 |
BGB70.3-M4×10 | $2.92 | |
| 17 | Aluminum washer 6×12×1.5PJ00000906010100 $0.49 |
PJ00000906010100 | $0.49 | |
| 18 | Hex bolt with flange M6×12BGB5787-M6×12 $0.65 |
BGB5787-M6×12 | $0.65 | |
| 19 | MSRP: |
MSRP: |
Liquid error (snippets/part-product-form line 13): product form must be given a product
|
|
| 20 | Water pump assemblyE01970000 $135.74 |
E01970000 | $135.74 | |
| 21 | Hex bolt with flange M6×40BGB5787-M6×40 $0.97 |
BGB5787-M6×40 | $0.97 | |
| 22 | Hex bolt with flange M6×40BGB5787-M6×40 $0.97 |
BGB5787-M6×40 | $0.97 | |
| 23 | Hex bolt with flange M6×40BGB5787-M6×40 $0.97 |
BGB5787-M6×40 | $0.97 | |
| 24 | Hex bolt with flange M6×40BGB5787-M6×40 $0.97 |
BGB5787-M6×40 | $0.97 |
Description
engine left front cover assembly el diablo
