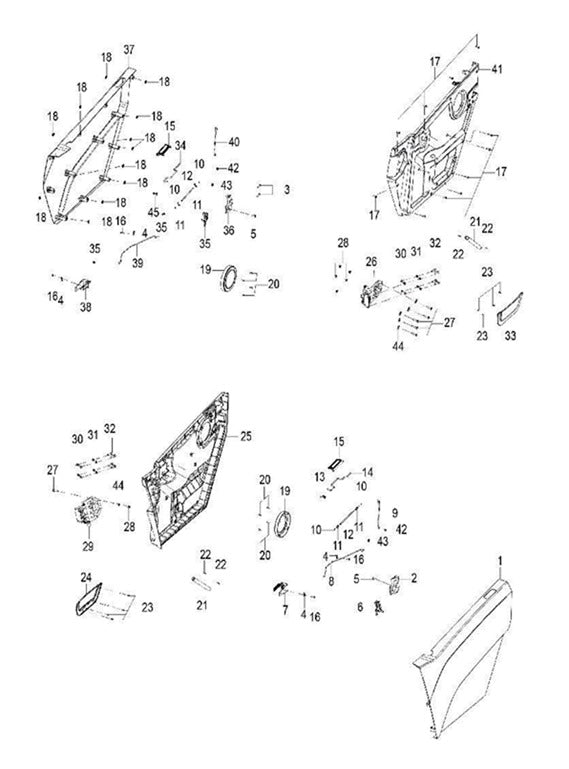

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Left door outer guard board ⅠB18245000 $182.98 |
B18245000 | $182.98 | |
| 2 | Outter door latch seat assembly (left)B15193000 $17.50 |
B15193000 | $17.50 | |
| 3 | Inner hex bolt with washer M6×30PJ00000902250500 $1.46 |
PJ00000902250500 | $1.46 | |
| 4 | Cable clampP115000446600000 $7.13 |
P115000446600000 | $7.13 | |
| 5 | Inner hex bolt with washer M6×20PJ00000902250400 $1.30 |
PJ00000902250400 | $1.30 | |
| 6 | Door latch holder (R)B18454000 $78.05 |
B18454000 | $78.05 | |
| 7 | Front door latch inner handle assembly (R)B18452200 $37.03 |
B18452200 | $37.03 | |
| 8 | Latch lever FL IB18451A00 $14.58 |
B18451A00 | $14.58 | |
| 9 | Latch lever FL IIB18451B00 $6.32 |
B18451B00 | $6.32 | |
| 10 | Split ring 5BGB896-5 $0.10 |
BGB896-5 | $0.10 | |
| 11 | Door connect plateB15110900 $2.92 |
B15110900 | $2.92 | |
| 12 | Slotted pin φ6×158B19297300 $11.18 |
B19297300 | $11.18 | |
| 13 | Torsion spring ALB19630036 $3.24 |
B19630036 | $3.24 | |
| 14 | Door latch turning lever FLB18451C00 $12.96 |
B18451C00 | $12.96 | |
| 15 | Top lock handle assembly IB18451100 $7.44 |
B18451100 | $7.44 | |
| 16 | Inner hex bolt with washer M6×16PJ00000902250100 $1.14 |
PJ00000902250100 | $1.14 | |
| 17 | Inner hex bolt with washer M6×16PJ00000902250100 $1.14 |
PJ00000902250100 | $1.14 | |
| 18 | Nut clamp M6×6PJ00000903500200 $1.08 |
PJ00000903500200 | $1.08 | |
| 19 | Speaker coverB18243000 $10.79 |
B18243000 | $10.79 | |
| 20 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 21 | Door handle IB15110700 $5.69 |
B15110700 | $5.69 | |
| 22 | Door handle IB15110700 $5.69 |
B15110700 | $5.69 | |
| 23 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 24 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 25 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 26 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 27 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 28 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 29 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 30 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 31 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 32 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 33 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 34 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 35 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 36 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 37 | Hex countersunk screw M4×16BGB70.3-M4×16 $0.19 |
BGB70.3-M4×16 | $0.19 | |
| 38 | Front door latch inner handle assembly (R)B18452200 $37.03 |
B18452200 | $37.03 | |
| 39 | Front door latch inner handle assembly (R)B18452200 $37.03 |
B18452200 | $37.03 | |
| 40 | Latch lever FL IIB18451B00 $6.32 |
B18451B00 | $6.32 | |
| 41 | Latch lever FL IIB18451B00 $6.32 |
B18451B00 | $6.32 | |
| 42 | Latch lever FL IIB18451B00 $6.32 |
B18451B00 | $6.32 | |
| 43 | Latch lever FL IIB18451B00 $6.32 |
B18451B00 | $6.32 | |
| 44 | Latch lever FL IIB18451B00 $6.32 |
B18451B00 | $6.32 | |
| 45 | Latch lever FL IIB18451B00 $6.32 |
B18451B00 | $6.32 |
Description
body door front el diablo
