Seat assembly(Suede Standard&Foam)

$1,016.55 View Item

Seat Belt Assy(With Wire-Front Seat)

$173.75 View Item

Seat Belt Assy(Without Wire)

$157.95 View Item

Seat mount plate

$59.33 View Item

Hex bolt with flange M10× 1.25×45

$2.84 View Item

Slide rail fixing sleeve

$5.00 View Item

Hex bolt with flange M8× 16

$1.22 View Item

Slide rail adjust lever assembly

$2.75 View Item

Spring retention plate

$3.73 View Item

Inner hex round head screw M8×50

$1.20 View Item

Cylindrical bushing φ10×φ20×24

$3.85 View Item

Seat pin rubber seat

$1.78 View Item

Slide rail assembly Ⅰ

$23.81 View Item

Cylindrical bushing φ9×φ12×4

$7.70 View Item

Nylon bearings φ6×φ24×14

$11.21 View Item

Flat washer φ12.5×φ24×2

$0.54 View Item

Tension spring N (seat slide rail)

$1.22 View Item

Split ring 5

$0.08 View Item

Slide rail fixing pin assembly

$3.16 View Item

Flat washer φ10×φ20×2

$0.41 View Item

Flat washer φ10×φ20×2

$0.41 View Item

Flat washer φ10×φ20×2

$0.41 View Item

Flat washer φ10×φ20×2

$0.41 View Item

Flat washer φ10×φ20×2

$0.41 View Item

Flat washer φ10×φ20×2

$0.41 View Item

Flat washer φ10×φ20×2

$0.41 View Item

Product Mapper

Item Number Description Part Number Price
1-1
Seat assembly(Suede Standard&Foam)
B17141050 $1,016.55 		B17141050 $1,016.55
2
Seat Belt Assy(With Wire-Front Seat)
B17511020 $173.75 		B17511020 $173.75
3
Seat Belt Assy(Without Wire)
B17511030 $157.95 		B17511030 $157.95
4
Seat mount plate
B17156000 $59.33 		B17156000 $59.33
5
Hex bolt with flange M10× 1.25×45
BGB16674-M10×1.25×45 $2.84 		BGB16674-M10×1.25×45 $2.84
6
Slide rail fixing sleeve
B171530AB $5.00 		B171530AB $5.00
7
Hex bolt with flange M8× 16
BGB16674-M8×16 $1.22 		BGB16674-M8×16 $1.22
8
Slide rail adjust lever assembly
B17144000 $2.75 		B17144000 $2.75
9
Spring retention plate
B17151300 $3.73 		B17151300 $3.73
10
Inner hex round head screw M8×50
BGB70.2-M8×50 $1.20 		BGB70.2-M8×50 $1.20
11
Cylindrical bushing φ10×φ20×24
B19290H00 $3.85 		B19290H00 $3.85
12
Seat pin rubber seat
PJ00000933400001 $1.78 		PJ00000933400001 $1.78
13
Slide rail assembly Ⅰ
B17154000 $23.81 		B17154000 $23.81
14
Cylindrical bushing φ9×φ12×4
B19290F00 $7.70 		B19290F00 $7.70
15
Nylon bearings φ6×φ24×14
B17153100 $11.21 		B17153100 $11.21
16
Flat washer φ12.5×φ24×2
PJ00000906050800 $0.54 		PJ00000906050800 $0.54
17
Tension spring N (seat slide rail)
PJ00000961001300 $1.22 		PJ00000961001300 $1.22
18
Split ring 5
BGB896-5 $0.08 		BGB896-5 $0.08
19
Slide rail fixing pin assembly
B17143000 $3.16 		B17143000 $3.16
20
Flat washer φ10×φ20×2
'BGB97.1-10 $0.41 		'BGB97.1-10 $0.41
21
Flat washer φ10×φ20×2
'BGB97.1-10 $0.41 		'BGB97.1-10 $0.41
22
Flat washer φ10×φ20×2
'BGB97.1-10 $0.41 		'BGB97.1-10 $0.41
23
Flat washer φ10×φ20×2
'BGB97.1-10 $0.41 		'BGB97.1-10 $0.41
24
Flat washer φ10×φ20×2
'BGB97.1-10 $0.41 		'BGB97.1-10 $0.41
25
Flat washer φ10×φ20×2
'BGB97.1-10 $0.41 		'BGB97.1-10 $0.41
26
Flat washer φ10×φ20×2
'BGB97.1-10 $0.41 		'BGB97.1-10 $0.41

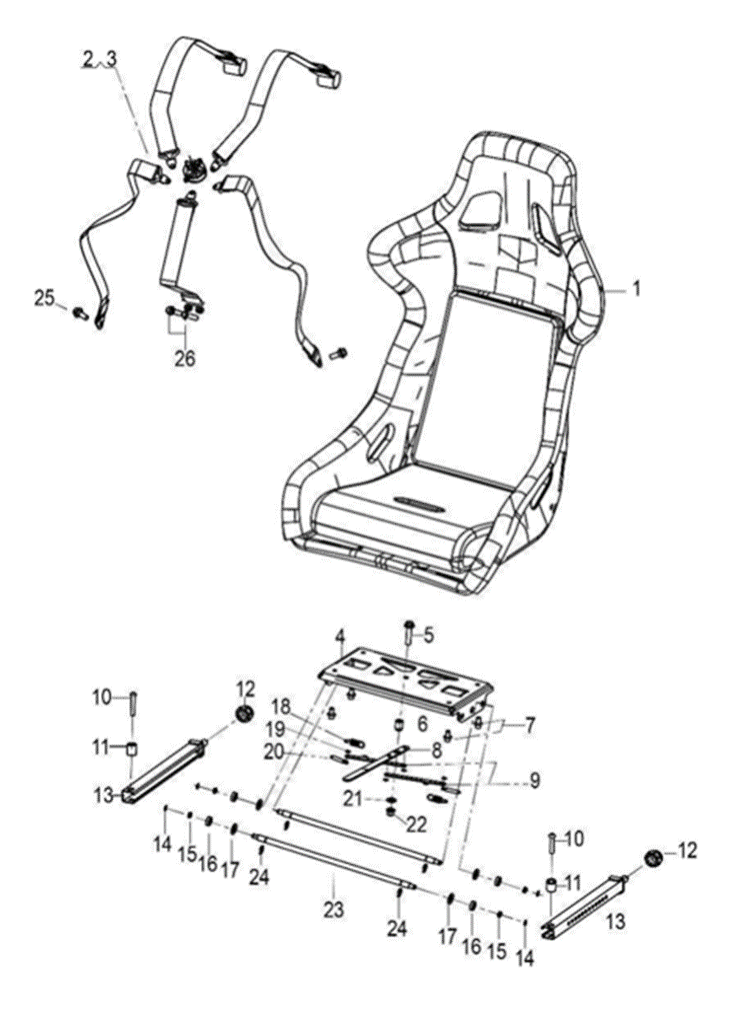

Description
Seat, Front
