| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Cylinder head assemblyE01220A00 $952.56 |
E01220A00 | $952.56 | |
| 2 | SPD Spark plug SR312-10E03330000 $112.43 |
E03330000 | $112.43 | |
| 3 | Spark plug hole gasketE01231300 $6.76 |
E01231300 | $6.76 | |
| 4 | Combined seal ringφ18.4×φ25×290617100001 $15.39 |
90617100001 | $15.39 | |
| 5 | Oil duct plug M18 × 1.5 ×8.5E01120510 $2.03 |
E01120510 | $2.03 | |
| 6 | Washer 10×21×390602100008 $4.59 |
90602100008 | $4.59 | |
| 7 | Stud M10×1.25×12712112337001-0001 $14.45 |
12112337001-0001 | $14.45 | |
| 8 | MSRP: |
MSRP: |
Liquid error (snippets/part-product-form line 13): product form must be given a product
|
|
| 9 | Water outlet pipe assemblyE01927001 $26.69 |
E01927001 | $26.69 | |
| 10 | Hex bolt with flange M6×16BGB5787-M6×16 $0.54 |
BGB5787-M6×16 | $0.54 | |
| 11 | Hex bolt with flange M6×12BGB5787-M6×12 $0.54 |
BGB5787-M6×12 | $0.54 | |
| 12 | Φ25 304 stainless steel clamp with coatingPJ00000907400200 $5.79 |
PJ00000907400200 | $5.79 | |
| 13 | Hex bolt with flange M6×40BGB5787-M6×40 $0.81 |
BGB5787-M6×40 | $0.81 | |
| 14 | Aluminum washer 6×12×1.5PJ00000906010100 $0.41 |
PJ00000906010100 | $0.41 | |
| 15 | Thermostat cover gasketE01941100 $0.36 |
E01941100 | $0.36 | |
| 16 | Thermostat coverE01900900 $5.31 |
E01900900 | $5.31 | |
| 17 | Hex bolt with flange M6×20BGB5787-M6×20 $0.54 |
BGB5787-M6×20 | $0.54 | |
| 18 | Cylinder head gasketE01207A00 $80.80 |
E01207A00 | $80.80 | |
| 19 | Positioning pin 14×16PJ00000908020600 $0.77 |
PJ00000908020600 | $0.77 | |
| 20 | Stud M10×1.25×12512112337003-0001 $14.04 |
12112337003-0001 | $14.04 | |
| 21 | Stud M10×1.25×12512112337003-0001 $14.04 |
12112337003-0001 | $14.04 |
Description

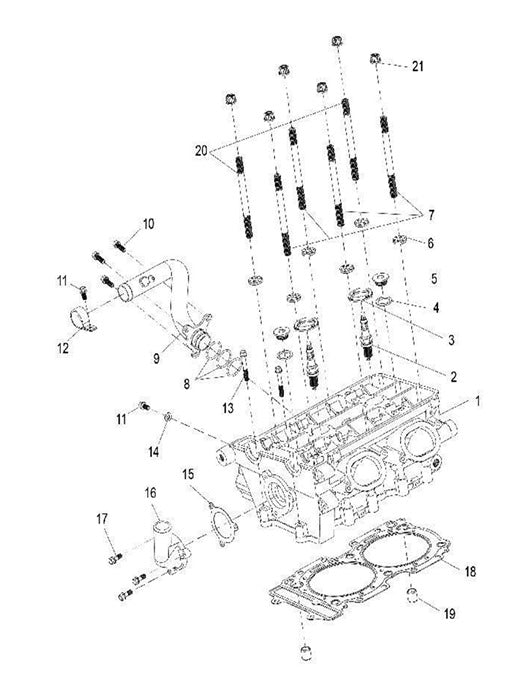

Engine Cylinder Head Assembly El Diablo
