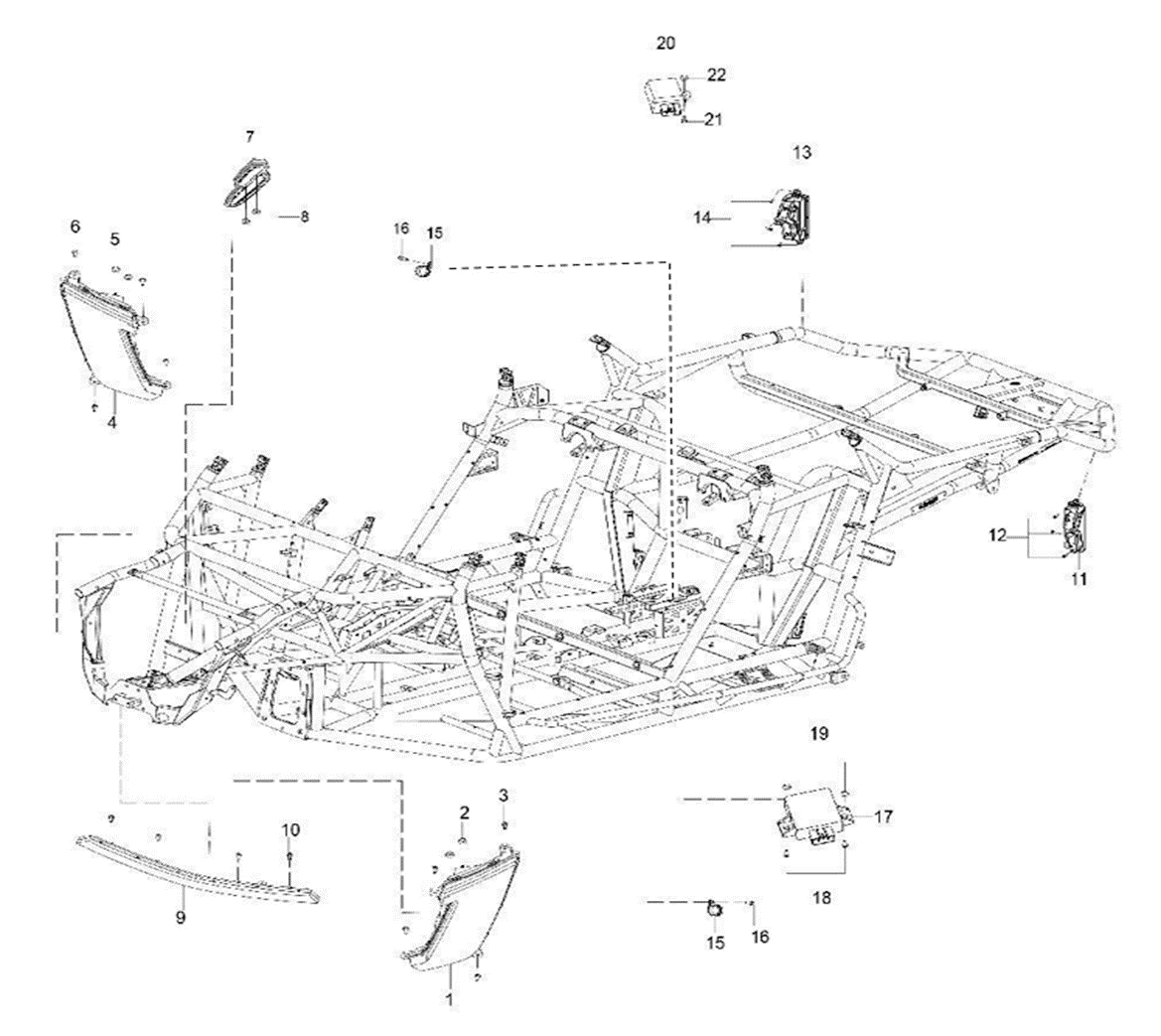

Product Mapper

Item Number Description Part Number Price
1
Left headlight assembly
B13511000 $574.99
B13511000 $574.99
2
Non-metallic insert hex flange lock nut M6
BGB6183.2-M6 $0.82
BGB6183.2-M6 $0.82
3
Inner hex bolt with washer M6×16
PJ00000902250100 $1.14
PJ00000902250100 $1.14
4
Right headlight assembly
B13513000 $574.99
B13513000 $574.99
5
Non-metallic insert hex flange lock nut M6
BGB6183.2-M6 $0.82
BGB6183.2-M6 $0.82
6
Inner hex bolt with washer M6×16
PJ00000902250100 $1.14
PJ00000902250100 $1.14
7
SPEED Logo light
B13534000 $79.37
B13534000 $79.37
8
Hex nut with flange M6
BGB6177.1-M6 $0.49
BGB6177.1-M6 $0.49
9
Center light strip
B13533500 $119.12
B13533500 $119.12
10
Inner hexagon with disk tapping screw ST4.8×16
PJ00000902300000 $0.49
PJ00000902300000 $0.49
11
Left rear light assembly
B13535000 $194.02
B13535000 $194.02
12
Inner hex bolt with washer M6×16
PJ00000902250100 $1.14
PJ00000902250100 $1.14
13
Right rear light assembly
B13537500 $194.02
B13537500 $194.02
14
Inner hex bolt with washer M6×16
PJ00000902250100 $1.14
PJ00000902250100 $1.14
15
304 stainless steel adhesive clamp Φ19
PJ00000907400800 $3.79
PJ00000907400800 $3.79
16
Inner hex cylindrical head screwM6×16
BGB16674-M6×16 $0.48
BGB16674-M6×16 $0.48
17
Vehicle data recorder
B13010101 $174.96
B13010101 $174.96
18
Inner hex bolt with washer M6×20
PJ00000902250400 $1.30
PJ00000902250400 $1.30
19
Non-metallic insert hex flange lock nut M6
BGB6183.2-M6 $0.82
BGB6183.2-M6 $0.82
20
ECU control relay
B13771000 $43.74
B13771000 $43.74
21
Inner hex bolt with washer M6×20
PJ00000902250400 $1.30
PJ00000902250400 $1.30
22
Non-metallic insert hex flange lock nut M6
BGB6183.2-M6 $0.82
BGB6183.2-M6 $0.82
Description
electrical lighting eldiablo
