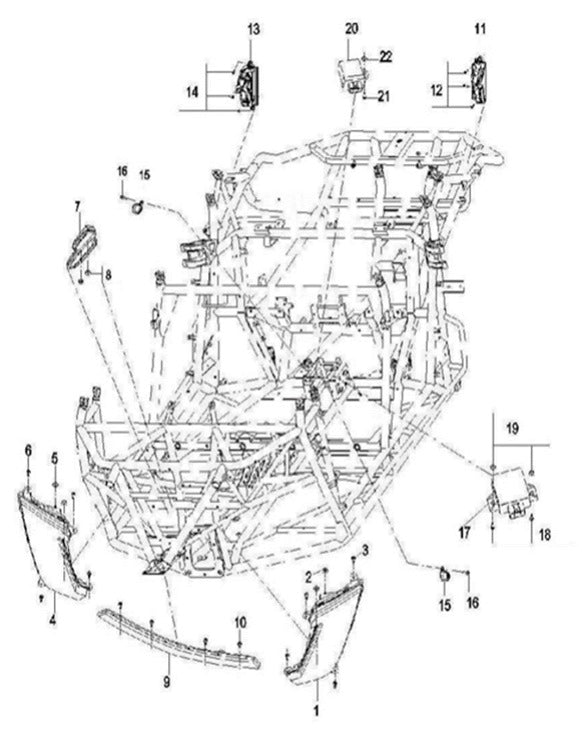

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Left headlight assemblyB13511000 $479.16 |
B13511000 | $479.16 | |
| 2 | Non-metallic insert hex flange lock nut M6BGB6183.2-M6 $0.20 |
BGB6183.2-M6 | $0.20 | |
| 3 | Inner hex bolt with washer M6×16PJ00000902250100 $0.24 |
PJ00000902250100 | $0.24 | |
| 4 | Right headlight assemblyB13513000 $479.16 |
B13513000 | $479.16 | |
| 5 | Non-metallic insert hex flange lock nut M6BGB6183.2-M6 $0.20 |
BGB6183.2-M6 | $0.20 | |
| 6 | Inner hex bolt with washer M6×16PJ00000902250100 $0.24 |
PJ00000902250100 | $0.24 | |
| 7 | SPEED Logo lightB13534000 $66.14 |
B13534000 | $66.14 | |
| 8 | Hex nut with flange M6BGB6177.1-M6 $0.12 |
BGB6177.1-M6 | $0.12 | |
| 9 | Center light stripB13533500 $99.27 |
B13533500 | $99.27 | |
| 10 | Inner hexagon with disk tapping screw ST4.8×16PJ00000902300000 $0.41 |
PJ00000902300000 | $0.41 | |
| 11 | Left rear light assemblyB13535000 $161.68 |
B13535000 | $161.68 | |
| 12 | Inner hex bolt with washer M6×16PJ00000902250100 $0.24 |
PJ00000902250100 | $0.24 | |
| 13 | Right rear light assemblyB13537500 $161.68 |
B13537500 | $161.68 | |
| 14 | Inner hex bolt with washer M6×16PJ00000902250100 $0.24 |
PJ00000902250100 | $0.24 | |
| 15 | 304 stainless steel adhesive clamp Φ19PJ00000907400800 $3.16 |
PJ00000907400800 | $3.16 | |
| 16 | Hexagon flange bolt M6×16BGB16674-M6×16 $0.16 |
BGB16674-M6×16 | $0.16 | |
| 17 | Vehicle data recorderB13010101 $145.80 |
B13010101 | $145.80 | |
| 18 | Inner hex bolt with washer M6×20PJ00000902250400 $1.08 |
PJ00000902250400 | $1.08 | |
| 19 | Non-metallic insert hex flange lock nut M6BGB6183.2-M6 $0.20 |
BGB6183.2-M6 | $0.20 | |
| 20 | ECU control relayB13771000 $36.45 |
B13771000 | $36.45 | |
| 21 | Inner hex bolt with washer M6×20PJ00000902250400 $1.08 |
PJ00000902250400 | $1.08 | |
| 22 | Non-metallic insert hex flange lock nut M6BGB6183.2-M6 $0.20 |
BGB6183.2-M6 | $0.20 |
Description
Electrical Lighting El Jefe
