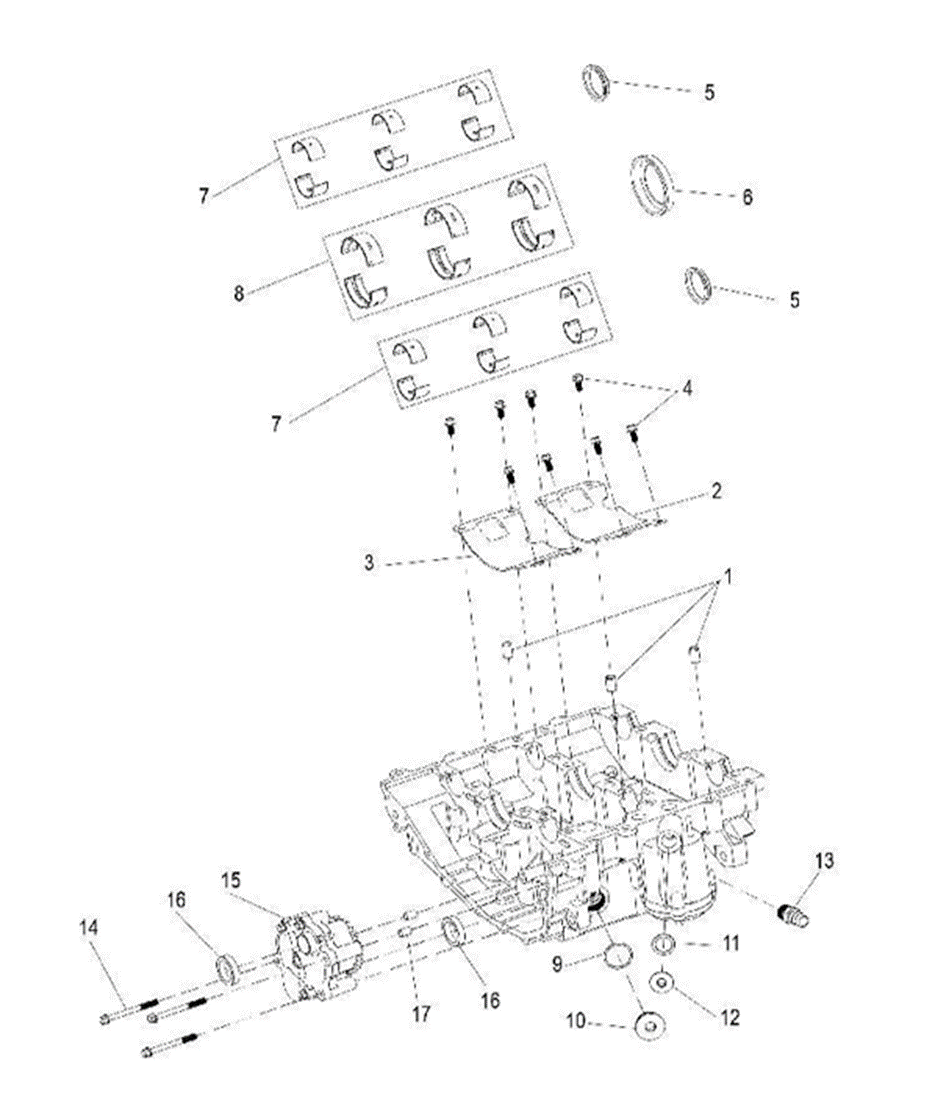

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Positioning pin 10×16PJ00000908020300 $0.64 |
PJ00000908020300 | $0.64 | |
| 2 | Oil baffle plate ⅠE01102910 $4.18 |
E01102910 | $4.18 | |
| 3 | Oil baffle plate ⅡE01102920 $4.27 |
E01102920 | $4.27 | |
| 4 | Hex bolt with flange M6× 16BGB5787-M6×16 $0.65 |
BGB5787-M6×16 | $0.65 | |
| 5 | Oil sealing plug 37×5E09110200 $13.32 |
E09110200 | $13.32 | |
| 6 | Oil seal 68×48×10.6E09110100 $29.59 |
E09110100 | $29.59 | |
| 7 | Bearing shell φ35×19×1.5 green (balance shaft)E09220301 $23.92 |
E09220301 | $23.92 | |
| 8 | Bearing shell φ52×20×2 green (main journal)E09220101 $15.65 |
E09220101 | $15.65 | |
| 9 | Combined seal ringφ26.6×φ34.6×290617000003 $20.90 |
90617000003 | $20.90 | |
| 10 | Oil duct plug M26 × 1.5 ×11E01120520 $3.55 |
E01120520 | $3.55 | |
| 11 | Combined seal ringφ18.4×φ25×290617000001 $18.47 |
90617000001 | $18.47 | |
| 12 | Oil duct plug M18 × 1.5 ×8.5E01120510 $2.44 |
E01120510 | $2.44 | |
| 13 | Water pipe connector R23/8×38E01130600 $2.92 |
E01130600 | $2.92 | |
| 14 | Hex bolt with flange M6×60BGB5787-M6×60 $1.30 |
BGB5787-M6×60 | $1.30 | |
| 15 | Oil pump assembly IE01511010 $94.57 |
E01511010 | $94.57 | |
| 16 | Flat rubber washer 24×33 × 7.5E09311000 $7.34 |
E09311000 | $7.34 | |
| 17 | Positioning pin φ8×φ6.5×12PJ00000908020100 $0.10 |
PJ00000908020100 | $0.10 |
Description
Lower Crank Case Assembly 2
