Turbine housing assembly

$2,474.55 View Item

Vortex end pressure plate

$9.11 View Item

Bolt 3/4

$3.65 View Item

intermediate

$1,458.00 View Item

Turbine compressor casing

$1,093.50 View Item

Actuator

$303.75 View Item

Circlip

$10.13 View Item

Hexagon flange nut M5

$14.18 View Item

bolt M8×16×5/8

$14.18 View Item

bolt M8×18×5/8

$16.20 View Item

bolt M8×12×5/8

$14.18 View Item

Pressure end pressing plate

$12.15 View Item

Locating pin 2×5

$4.05 View Item

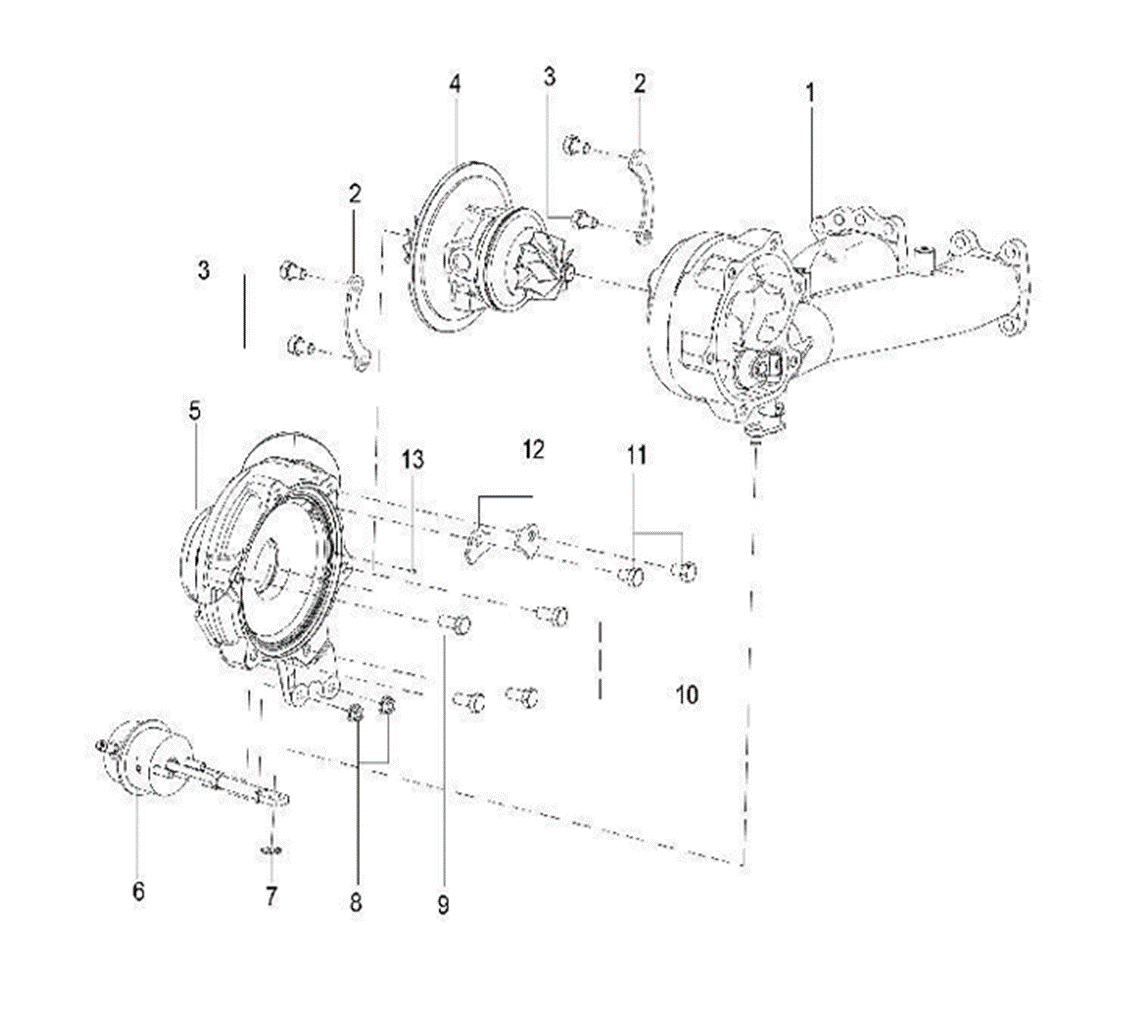

Product Mapper

Item Number Description Part Number Price
1
Turbine housing assembly
18005337002 $2,474.55 		18005337002 $2,474.55
2
Vortex end pressure plate
18033337002 $9.11 		18033337002 $9.11
3
Bolt 3/4
$3.65 		$3.65
4
intermediate
18030337001 $1,458.00 		18030337001 $1,458.00
5
Turbine compressor casing
18029337001 $1,093.50 		18029337001 $1,093.50
6
Actuator
18031337001 $303.75 		18031337001 $303.75
7
Circlip
91001000007 $10.13 		91001000007 $10.13
8
Hexagon flange nut M5
90303000015 $14.18 		90303000015 $14.18
9
bolt M8×16×5/8
90101000009 $14.18 		90101000009 $14.18
10
bolt M8×18×5/8
90101000010 $16.20 		90101000010 $16.20
11
bolt M8×12×5/8
90101000008 $14.18 		90101000008 $14.18
12
Pressure end pressing plate
18033337001 $12.15 		18033337001 $12.15
13
Locating pin 2×5
90901000012 $4.05 		90901000012 $4.05
Description
Turbo Assembly eljefe
