Product Mapper

Item Number Description Part Number Price
1
Bulkhead assembly
E02710000 $5,864.76
E02710000 $5,864.76
2
Bulkhead upper plate assembly
B15110500 $14.68
B15110500 $14.68
3
Front swaybar fixing plate
B15166800 $41.32
B15166800 $41.32
4
Hex bolt with flange M10×30
BGB70.1-M10×1.25x30 $2.11
BGB70.1-M10×1.25x30 $2.11
5
Washer 10×22×2.5
PJ00000906000600 $0.38
PJ00000906000600 $0.38
6
Hex bolt with flange M10×1.25×40
BGB16674-M10×1.25×40 $3.08
BGB16674-M10×1.25×40 $3.08
7
Metal hex flange lock nut M10×1.25
BGB6187-M10×1.25 $0.68
BGB6187-M10×1.25 $0.68
8
Hex bolt with flange M10×25
BGB16674-M10×25 $3.89
BGB16674-M10×25 $3.89
Description

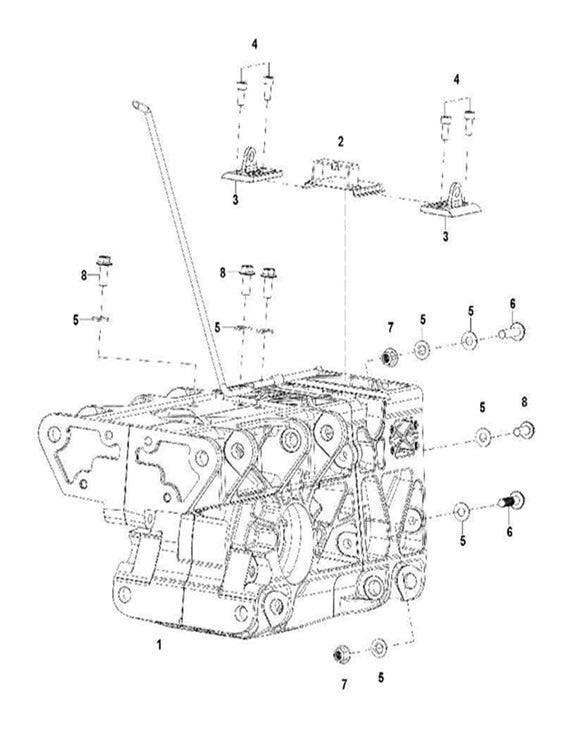

Transmission Front Differential Mounting El Diablo
