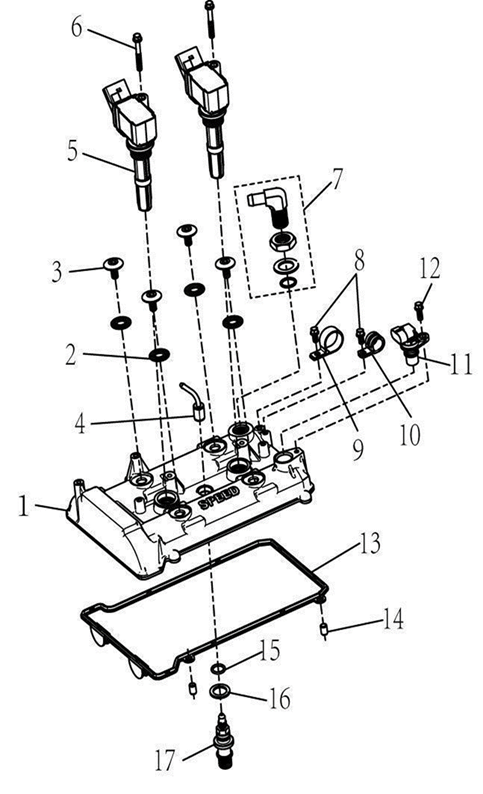

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Cylinder head cover'E01231100 $50.06 |
'E01231100 | $50.06 | |
| 2 | Cylinder head cover bolt gasketE01231500 $4.54 |
E01231500 | $4.54 | |
| 3 | Cylinder head bolt M8× 1.25×17.5E01232600 $2.03 |
E01232600 | $2.03 | |
| 4 | Vent assemblyE01120800 $6.76 |
E01120800 | $6.76 | |
| 5 | IGNITION COIL 28454712E03451002 $75.00 |
E03451002 | $75.00 | |
| 6 | Hex bolt with flange M6×45BGB5787-M6×45 $0.24 |
BGB5787-M6×45 | $0.24 | |
| 7 | Air Oil Seperator connector AB11742000 $17.62 |
B11742000 | $17.62 | |
| 8 | Hex bolt with flange M6× 16BGB5787-M6×16 $0.16 |
BGB5787-M6×16 | $0.16 | |
| 9 | Φ14 304 stainless steel clamp with coatingPJ00000907400100 $1.54 |
PJ00000907400100 | $1.54 | |
| 10 | Φ8 304 stainless steel clamp with coatingPJ00000907400000 $1.13 |
PJ00000907400000 | $1.13 | |
| 11 | Camshaft position sensorE01421501 $105.30 |
E01421501 | $105.30 | |
| 12 | Hex bolt with flange M6× 16BGB5787-M6×16 $0.16 |
BGB5787-M6×16 | $0.16 | |
| 13 | Cylinder head gasketE01207A00 $80.80 |
E01207A00 | $80.80 | |
| 14 | Positioning pin φ8×φ6.5×12PJ00000908020100 $0.08 |
PJ00000908020100 | $0.08 | |
| 15 | O-ring 12.5 × 2.4PJ00000912011200 $1.09 |
PJ00000912011200 | $1.09 | |
| 16 | Flat rubber washer 17.5×25.4×2E09311001 $17.42 |
E09311001 | $17.42 | |
| 17 | Breather connectorE01120900 $18.23 |
E01120900 | $18.23 |
Description
Engine Cylinder Cover Assembly El Jefe
