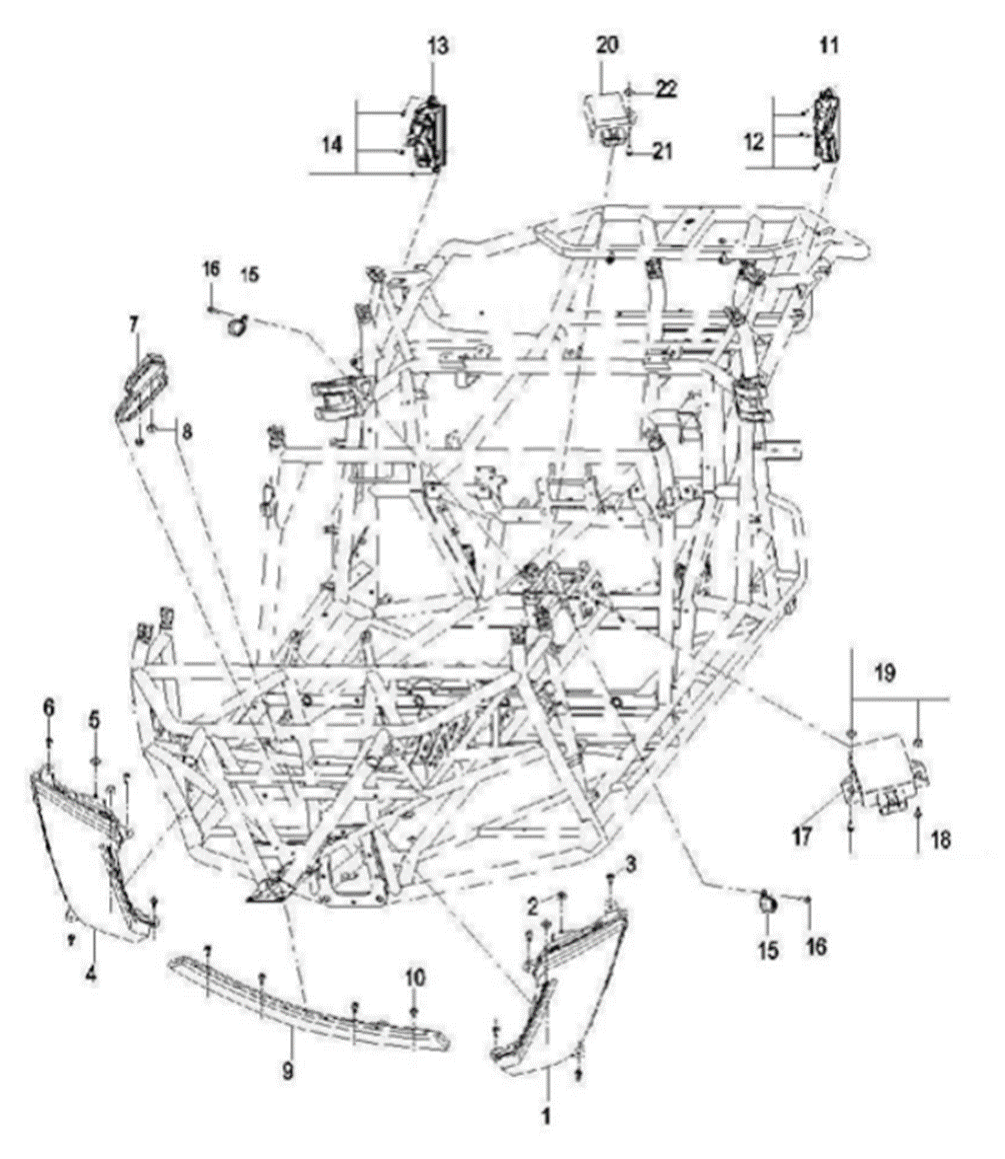

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Left headlight assemblyB13511000 $574.99 |
B13511000 | $574.99 | |
| 2 | Non-metallic insert hex flange lock nut M6BGB6183.2-M6 $0.82 |
BGB6183.2-M6 | $0.82 | |
| 3 | Inner hex bolt with washer M6×16PJ00000902250100 $1.14 |
PJ00000902250100 | $1.14 | |
| 4 | Right headlight assemblyB13513000 $574.99 |
B13513000 | $574.99 | |
| 5 | Inner hex bolt with washer M6×20PJ00000902250400 $1.30 |
PJ00000902250400 | $1.30 | |
| 6 | ECU control relayB13771000 $43.74 |
B13771000 | $43.74 | |
| 7 | SPEED Logo lightB13534000 $79.37 |
B13534000 | $79.37 | |
| 8 | Hex nut with flange M6BGB6177.1-M6 $0.49 |
BGB6177.1-M6 | $0.49 | |
| 9 | Center light stripB13533500 $119.12 |
B13533500 | $119.12 | |
| 10 | Inner hexagon with disk tapping screw ST4.8×16PJ00000902300000 $0.49 |
PJ00000902300000 | $0.49 | |
| 11 | Left rear light assemblyB13535000 $194.02 |
B13535000 | $194.02 | |
| 12 | Vehicle data recorderB13010101 $174.96 |
B13010101 | $174.96 | |
| 13 | Right rear light assemblyB13537500 $194.02 |
B13537500 | $194.02 | |
| 14 | 304 stainless steel adhesive clamp Φ19PJ00000907400800 $3.79 |
PJ00000907400800 | $3.79 | |
| 15 | Inner hex cylindrical head screwM6×16BGB16674-M6×16 $0.48 |
BGB16674-M6×16 | $0.48 | |
| 16 | Hexagon flange bolt M6×16BGB16674-M6×16 $0.48 |
BGB16674-M6×16 | $0.48 | |
| 17 | Vehicle data recorderB13010101 $174.96 |
B13010101 | $174.96 | |
| 18 | Inner hex bolt with washer M6×20PJ00000902250400 $1.30 |
PJ00000902250400 | $1.30 | |
| 19 | Non-metallic insert hex flange lock nut M6BGB6183.2-M6 $0.82 |
BGB6183.2-M6 | $0.82 | |
| 20 | ECU control relayB13771000 $43.74 |
B13771000 | $43.74 | |
| 21 | ECU control relayB13771000 $43.74 |
B13771000 | $43.74 | |
| 22 | ECU control relayB13771000 $43.74 |
B13771000 | $43.74 |
Description
Electrical Lighting
