Lower crankcase

$599.53 View Item

Hex bolt with flange M8× 35

$0.43 View Item

Hex bolt with flange M6×45

$0.97 View Item

Hex bolt with flange M8× 60

$0.64 View Item

Hex bolt with flange M8×70

$2.44 View Item

Hex bolt with flange M8×90

$3.24 View Item

Hex bolt with flange M10×105-32

$12.48 View Item

Hex bolt with flange M6×10

$0.49 View Item

Aluminum washer 6×12×1.5

$0.49 View Item

Hex bolt with flange M6× 20

$0.65 View Item

Oil filter cover

$7.19 View Item

O-ring 61.5×2.4

$3.98 View Item

Oil Filter

$66.00 View Item

Hex bolt with flange M10× 1.25×25

$0.83 View Item

Hex bolt with flange M12×1.25×310

$23.92 View Item

Lower engine mount

$116.64 View Item

Cylindrical pin φ6×12

$0.64 View Item

Nut M12× 1.25×16.5

$3.01 View Item

Front engine mount

$153.10 View Item

Flat washer 14

$0.24 View Item

Flat washer 14

$0.24 View Item

Flat washer 14

$0.24 View Item

Flat washer 14

$0.24 View Item

Flat washer 14

$0.24 View Item

Flat washer 14

$0.24 View Item

Product Mapper

Item Number Description Part Number Price
1
Lower crankcase
E01120000 $599.53 		E01120000 $599.53
2
Hex bolt with flange M8× 35
BGB16674-M8×35 $0.43 		BGB16674-M8×35 $0.43
3
Hex bolt with flange M6×45
BGB5787-M6×45 $0.97 		BGB5787-M6×45 $0.97
4
Hex bolt with flange M8× 60
BGB16674-M8×60 $0.64 		BGB16674-M8×60 $0.64
5
Hex bolt with flange M8×70
BGB16674-M8×70 $2.44 		BGB16674-M8×70 $2.44
6
Hex bolt with flange M8×90
BGB16674-M8×90 $3.24 		BGB16674-M8×90 $3.24
7
Hex bolt with flange M10×105-32
BGB16674-M10×105-32 $12.48 		BGB16674-M10×105-32 $12.48
8
Hex bolt with flange M6×10
BGB5787-M6×10 $0.49 		BGB5787-M6×10 $0.49
9
Aluminum washer 6×12×1.5
PJ00000906010100 $0.49 		PJ00000906010100 $0.49
10
Hex bolt with flange M6× 20
BGB5787-M6×20 $0.65 		BGB5787-M6×20 $0.65
11
Oil filter cover
E01520500 $7.19 		E01520500 $7.19
12
O-ring 61.5×2.4
PJ00000912016400 $3.98 		PJ00000912016400 $3.98
13
Oil Filter
E01522A00 $66.00 		E01522A00 $66.00
14
Hex bolt with flange M10× 1.25×25
BGB16674-M10×1.25×25 $0.83 		BGB16674-M10×1.25×25 $0.83
15
Hex bolt with flange M12×1.25×310
E02720300 $23.92 		E02720300 $23.92
16
Lower engine mount
E00010400 $116.64 		E00010400 $116.64
17
Cylindrical pin φ6×12
PJ00000908010100 $0.64 		PJ00000908010100 $0.64
18
Nut M12× 1.25×16.5
B19030200 $3.01 		B19030200 $3.01
19
Front engine mount
E00010300 $153.10 		E00010300 $153.10
20
Flat washer 14
BGB97.1-14 $0.24 		BGB97.1-14 $0.24
21
Flat washer 14
BGB97.1-14 $0.24 		BGB97.1-14 $0.24
22
Flat washer 14
BGB97.1-14 $0.24 		BGB97.1-14 $0.24
23
Flat washer 14
BGB97.1-14 $0.24 		BGB97.1-14 $0.24
24
Flat washer 14
BGB97.1-14 $0.24 		BGB97.1-14 $0.24
25
Flat washer 14
BGB97.1-14 $0.24 		BGB97.1-14 $0.24
Description

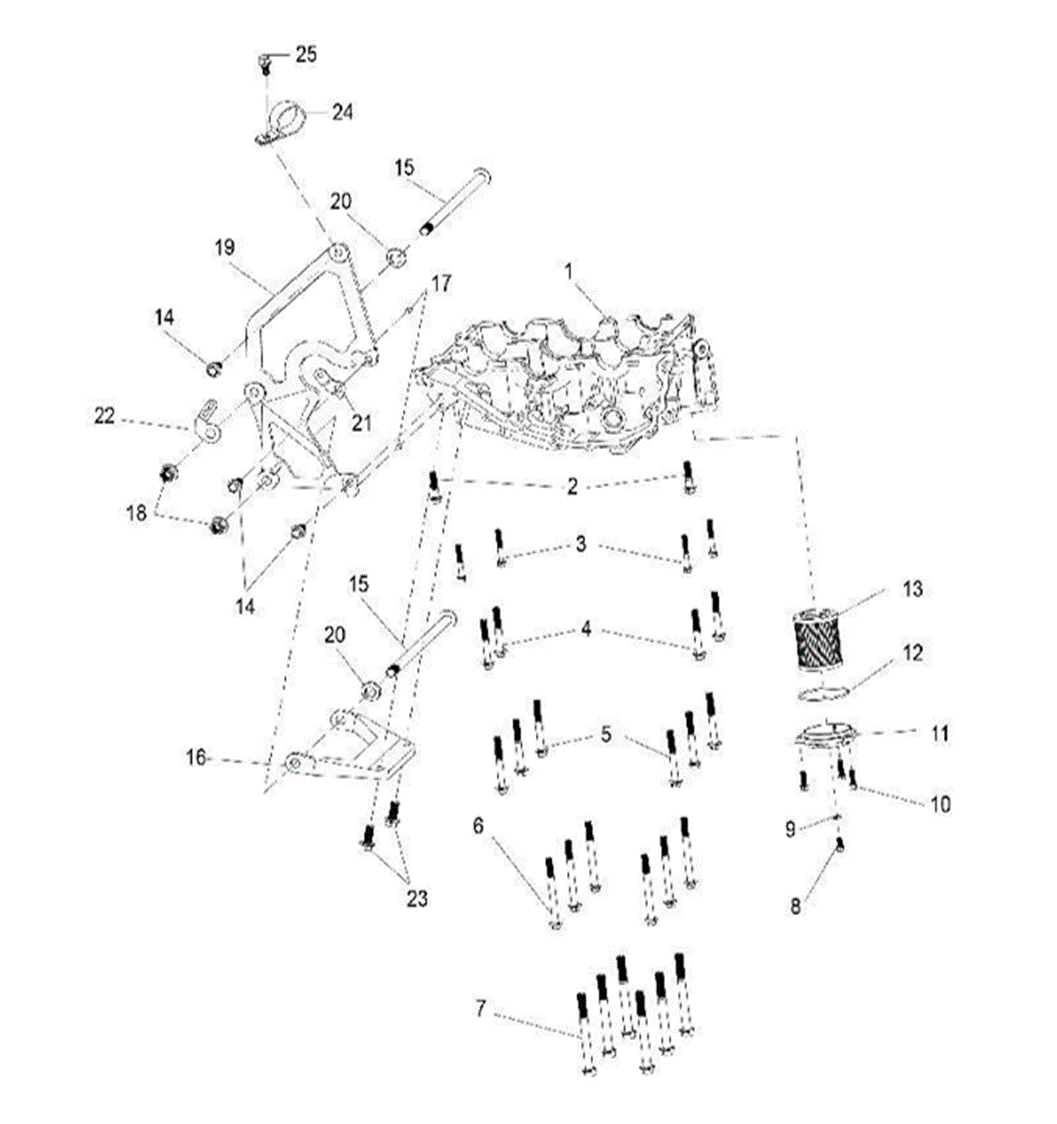

engine lower crankcase assembly 1
