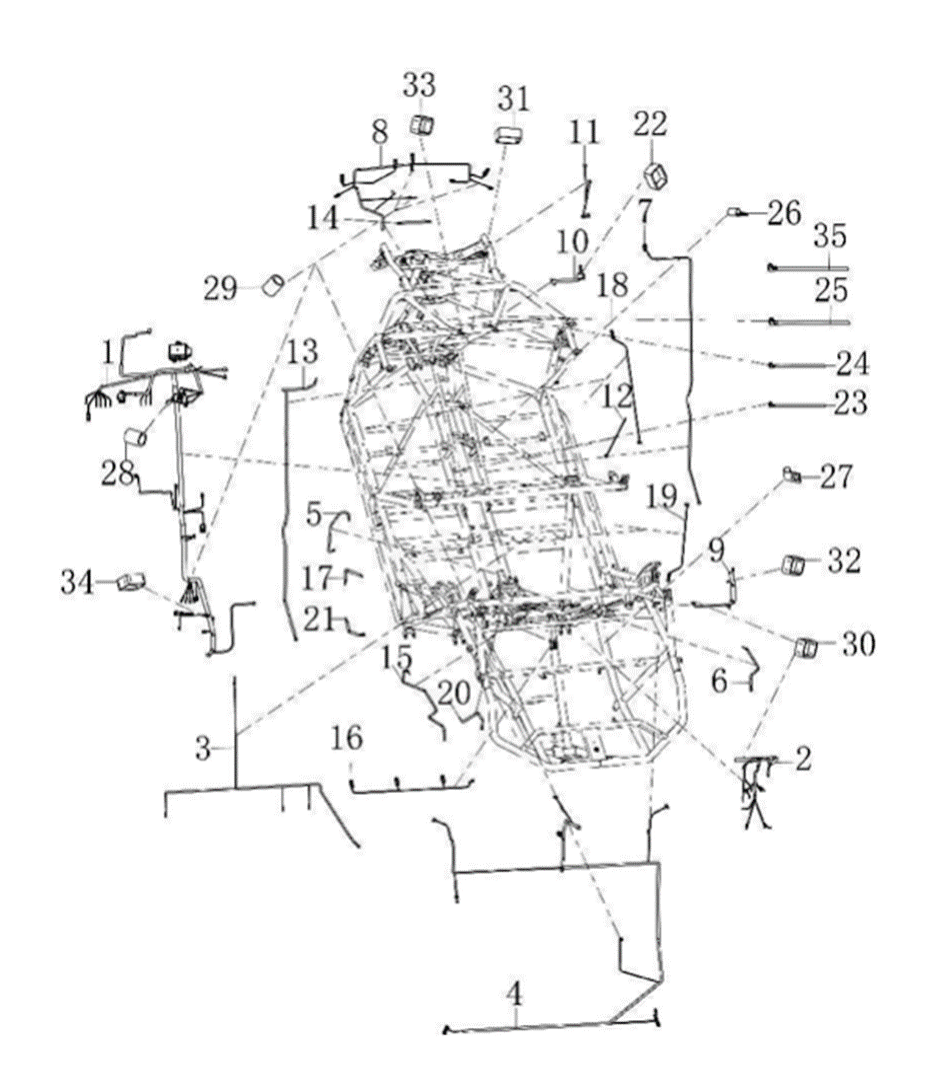

Product Mapper

Item Number Description Part Number Price
1
Main cable component
B13410000 $3,834.74
B13410000 $3,834.74
2
Electric spray cable components
B13420001 $897.64
B13420001 $897.64
3
Ceiling cable components
B13412000 $134.14
B13412000 $134.14
4
Rear cable component
B13411500 $902.83
B13411500 $902.83
5
Power supply positive line
B13431000 $13.45
B13431000 $13.45
6
Power supply negative connection cable
B13432000 $37.71
B13432000 $37.71
7
Pedal attachment wire
B13411900 $41.47
B13411900 $41.47
8
Bumper wire attached
B13412400 $546.30
B13412400 $546.30
9
ECU attached cable
B13412202 $1,110.31
B13412202 $1,110.31
10
Auxiliary instrument attached wire
B13412300 $67.88
B13412300 $67.88
11
Differential wire attached
B13411700 $16.32
B13411700 $16.32
12
Air pump power transfer cable
B13411600 $20.01
B13411600 $20.01
13
Positive terminal post connection wire
B13431700 $902.83
B13431700 $902.83
14
Power amplifier power cable
B13431200 $14.09
B13431200 $14.09
15
Generator output line
B13434101 $54.39
B13434101 $54.39
16
Fan attachment cable
B13412600 $361.83
B13412600 $361.83
17
Safety relay line
B13440300 $42.73
B13440300 $42.73
18
Horn transfer cable 1
B13413000 $14.74
B13413000 $14.74
19
Speaker conversion cable 2
B13413100 $12.39
B13413100 $12.39
20
Ground grounding wire
B13445000 $42.97
B13445000 $42.97
21
Line of safety
B13440200 $37.46
B13440200 $37.46
22
26 grade double row socket waterproof plug
B19350509 $1.94
B19350509 $1.94
23
Stainless steel inlaid cable ties-300
P115000896520011 $1.01
P115000896520011 $1.01
24
Zip tie-200(White)
P115000896510020 $0.95
P115000896510020 $0.95
25
Ground grounding wire
B13445000 $42.97
B13445000 $42.97
26
Φ 12 304 stainless steel adhesive clamp( Φ6)
PJ00000907400400 $1.94
PJ00000907400400 $1.94
27
Φ 32 304 stainless steel adhesive clamp( Φ6)
PJ00000907400700 $3.65
PJ00000907400700 $3.65
28
Double Lotus Audio Interface Waterproof Plug
B19350500 $0.61
B19350500 $0.61
29
AF waterproof plug of four grade ring socket
B19350501 $0.73
B19350501 $0.73
30
Ground grounding wire
B13445000 $42.97
B13445000 $42.97
31
Eight grade four row socket waterproof plug
B19350507 $1.54
B19350507 $1.54
32
Four grade double row socket waterproof plug B
B19350508 $1.54
B19350508 $1.54
33
Four grade double row socket waterproof plug A
B19350504 $1.54
B19350504 $1.54
34
Eight grade double row socket waterproof plug
B19350505 $1.66
B19350505 $1.66
35
Zip tie-200(Black)
P115000896510000 $0.41
P115000896510000 $0.41
Description
Electrical Harness
