Product Mapper

Item Number Description Part Number Price
1
Condensing pot welding combination
B10064100 $527.67
B10064100 $527.67
2
Refueling cap
B100640AD $17.01
B100640AD $17.01
3
Flat rubber washer φ48×φ54.4×1.8
PJ00000931101100 $2.43
PJ00000931101100 $2.43
4
Hex bolt with flange M6× 20
BGB16674-M6×20 $0.16
BGB16674-M6×20 $0.16
5
Dry-sump tank upper cap
B100640BN $42.61
B100640BN $42.61
6
Oil level separator
B100640BS $7.61
B100640BS $7.61
7
O-ring 113.8×3.1
PJ00000912018400 $6.08
PJ00000912018400 $6.08
8
O-ring 19 x 2.65
PJ00000912012700 $2.79
PJ00000912012700 $2.79
9
Conduit joint
B100640BG $12.15
B100640BG $12.15
10
Buffer sleeve
B100640AS $7.70
B100640AS $7.70
11
Dry-sump tank lower cap
B100640BM $45.32
B100640BM $45.32
12
Oil Filter
B11512200 $42.40
B11512200 $42.40
13
Oil duct plug M18 × 1.5 ×8.5
E01120510 $2.03
E01120510 $2.03
14
Combination washer φ18.4× ring φ25×2.5
PJ00000906280300 $15.26
PJ00000906280300 $15.26
15
Bolt (magnetic) M14× 1.5×16
P010000110150000 $2.23
P010000110150000 $2.23
16
Copper gasket 14×20×2.5
PJ00000906280200 $13.23
PJ00000906280200 $13.23
17
Crankcase oil duct plug M10× 1.25×12
P010000112050000 $0.53
P010000112050000 $0.53
18
Oil condensate pot assembly
B10064000 $842.40
B10064000 $842.40
19
Dry sump tank lower connector B
B100640AV $17.54
B100640AV $17.54
20
Filter connector
B100640AM $9.11
B100640AM $9.11
21
Filter connector
B100640AM $9.11
B100640AM $9.11
22
Filter connector
B100640AM $9.11
B100640AM $9.11
23
Filter connector
B100640AM $9.11
B100640AM $9.11
24
Filter connector
B100640AM $9.11
B100640AM $9.11
25
Filter connector
B100640AM $9.11
B100640AM $9.11
26
Filter connector
B100640AM $9.11
B100640AM $9.11
27
Filter connector
B100640AM $9.11
B100640AM $9.11
28
Filter connector
B100640AM $9.11
B100640AM $9.11
29
Filter connector
B100640AM $9.11
B100640AM $9.11
30
Filter connector
B100640AM $9.11
B100640AM $9.11
31
Filter connector
B100640AM $9.11
B100640AM $9.11
Description

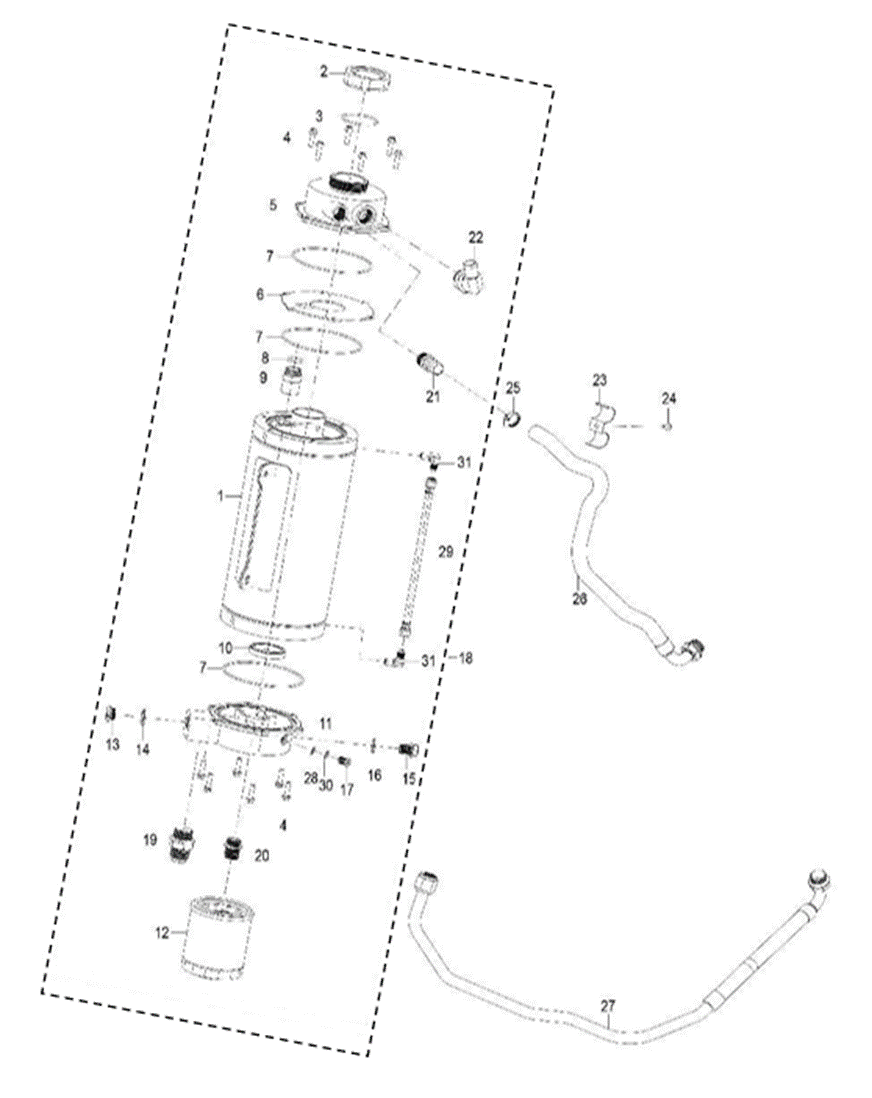

Cooling Oil Cooler El Jefe
