Deep-groove ball bearing 6903

$12.16 View Item

Deep-groove ball bearing 6207

$43.74 View Item

Needle bearing NK404712

$16.37 View Item

Deep-groove ball bearing 6205

$19.10 View Item

Guid plate

$5.35 View Item

Deep-groove ball bearing 6205

$19.10 View Item

Deep-groove ball bearing 6010

$42.43 View Item

Input shaft oil seal φ35×φ52×7

$13.02 View Item

Output CVJ oil seal φ45×φ72×8

$28.78 View Item

Hex flat round head screw M4×12

$0.32 View Item

O-ring 106×2.5

$8.59 View Item

X bearing seat gasket

$5.83 View Item

Deep-groove ball bearing 6208

$49.57 View Item

X bearing seat

$42.38 View Item

Hex bolt with flange M6× 20

$0.65 View Item

Circlip for shaft φ38

$1.94 View Item

Flat washer φ35.2×φ43×0.7

$5.18 View Item

double row angular contact ball bearing 3207-2RS

$88.94 View Item

Needle bearing NK607225

$145.07 View Item

Output shaft oil seal φ35×φ72×10

$20.84 View Item

Output shaft oil seal φ35×φ72×10

$20.84 View Item

Output shaft oil seal φ35×φ72×10

$20.84 View Item

Product Mapper

Item Number Description Part Number Price
1
Deep-groove ball bearing 6903
BGB276-6903 $12.16 		BGB276-6903 $12.16
2
Deep-groove ball bearing 6207
BGB276-6207 $43.74 		BGB276-6207 $43.74
3
Needle bearing NK404712
BGB 290-NK404712 $16.37 		BGB 290-NK404712 $16.37
4
Deep-groove ball bearing 6205
BGB276-6205 $19.10 		BGB276-6205 $19.10
5
Guid plate
20008337001 $5.35 		20008337001 $5.35
6
Deep-groove ball bearing 6205
BGB276-6205 $19.10 		BGB276-6205 $19.10
7
Deep-groove ball bearing 6010
BGB276-6010 $42.43 		BGB276-6010 $42.43
8
Input shaft oil seal φ35×φ52×7
90704000010 $13.02 		90704000010 $13.02
9
Output CVJ oil seal φ45×φ72×8
90704000009 $28.78 		90704000009 $28.78
10
Hex flat round head screw M4×12
90506000017 $0.32 		90506000017 $0.32
11
O-ring 106×2.5
90701000038 $8.59 		90701000038 $8.59
12
X bearing seat gasket
20009337001 $5.83 		20009337001 $5.83
13
Deep-groove ball bearing 6208
BGB276-6208 $49.57 		BGB276-6208 $49.57
14
X bearing seat
H01121100 $42.38 		H01121100 $42.38
15
Hex bolt with flange M6× 20
BGB5787-M6×20 $0.65 		BGB5787-M6×20 $0.65
16
Circlip for shaft φ38
BGB894.1-38 $1.94 		BGB894.1-38 $1.94
17
Flat washer φ35.2×φ43×0.7
90609000015 $5.18 		90609000015 $5.18
18
double row angular contact ball bearing 3207-2RS
91104000001 $88.94 		91104000001 $88.94
19
Needle bearing NK607225
91101000003 $145.07 		91101000003 $145.07
20
Output shaft oil seal φ35×φ72×10
90704000011 $20.84 		90704000011 $20.84
21
Output shaft oil seal φ35×φ72×10
90704000011 $20.84 		90704000011 $20.84
22
Output shaft oil seal φ35×φ72×10
90704000011 $20.84 		90704000011 $20.84
Description

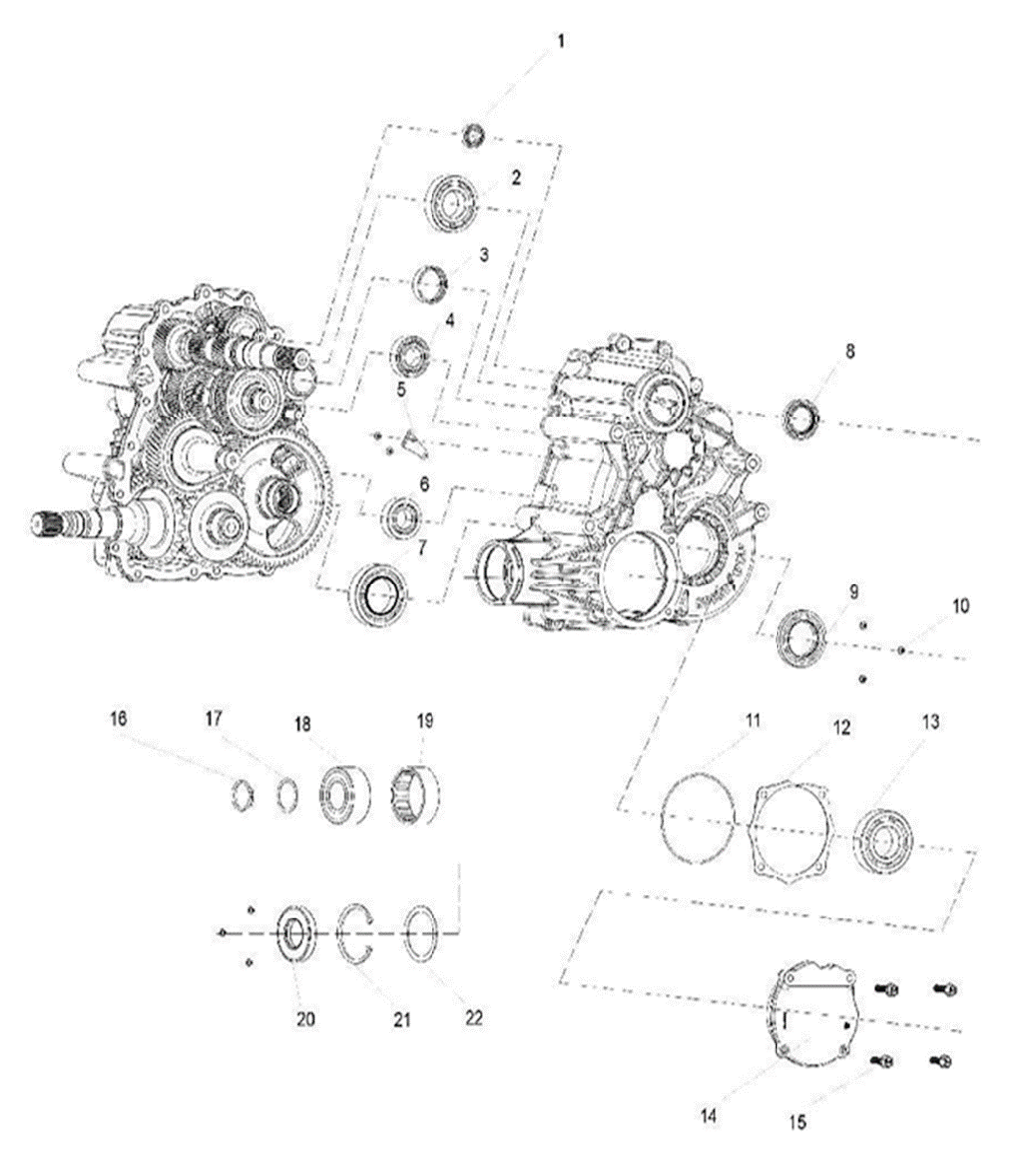

Rear Differential Case
