Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Water temperature sensor'P010000391300010 $27.18 |
'P010000391300010 | $27.18 | |
| 2 | Water pipe connector R23/8×38'E01130600 $8.10 |
'E01130600 | $8.10 | |
| 3 | Hex bolt with flange M6× 20'BGB5787-M6×20 $0.54 |
'BGB5787-M6×20 | $0.54 | |
| 4 | Thermostat coverE01900900 $17.69 |
E01900900 | $17.69 | |
| 5 | Thermostat 82℃'E01941A00 $14.34 |
'E01941A00 | $14.34 | |
| 6 | Combined seal ringφ10.4×φ16×290617000004 $10.13 |
90617000004 | $10.13 | |
| 7 | Oil duct plug M10 × 1.25 ×7E01120500 $5.13 |
E01120500 | $5.13 | |
| 8 | Regulator valve springE01570200 $3.24 |
E01570200 | $3.24 | |
| 9 | Steel ball S φ16.669'BGB308-16.7 $5.27 |
'BGB308-16.7 | $5.27 | |
| 10 | Regulator seat'E01570100 $21.99 |
'E01570100 | $21.99 | |
| 11 | Combined seal ringφ18.4×φ25×290617100001 $15.39 |
90617100001 | $15.39 | |
| 12 | Oil duct plug M18 × 1.5 ×8.5E01120510 $6.75 |
E01120510 | $6.75 | |
| 13 | Inner hex cylindrical head screw M8×38E01200200 $8.64 |
E01200200 | $8.64 | |
| 14 | Inner hex cylindrical head screw M8×31E01200100 $8.51 |
E01200100 | $8.51 | |
| 15 | Gasket 8×13×1.5E01101220 $0.41 |
E01101220 | $0.41 | |
| 16 | Hex nut M10BGB6107-M10 $0.24 |
BGB6107-M10 | $0.24 | |
| 17 | Combined seal ringφ10.4×φ16×290617000004 $10.13 |
90617000004 | $10.13 | |
| 18 | Tensioning plate limit screwE01415300 $2.27 |
E01415300 | $2.27 | |
| 19 | Pipe-coolant sensor19026337001 $10.13 |
19026337001 | $10.13 | |
| 20 | Screw lock clamp Tφ25-35PJ00000907301900 $2.39 |
PJ00000907301900 | $2.39 | |
| 21 | Screw lock clamp Tφ25-35PJ00000907301900 $2.39 |
PJ00000907301900 | $2.39 |
Description

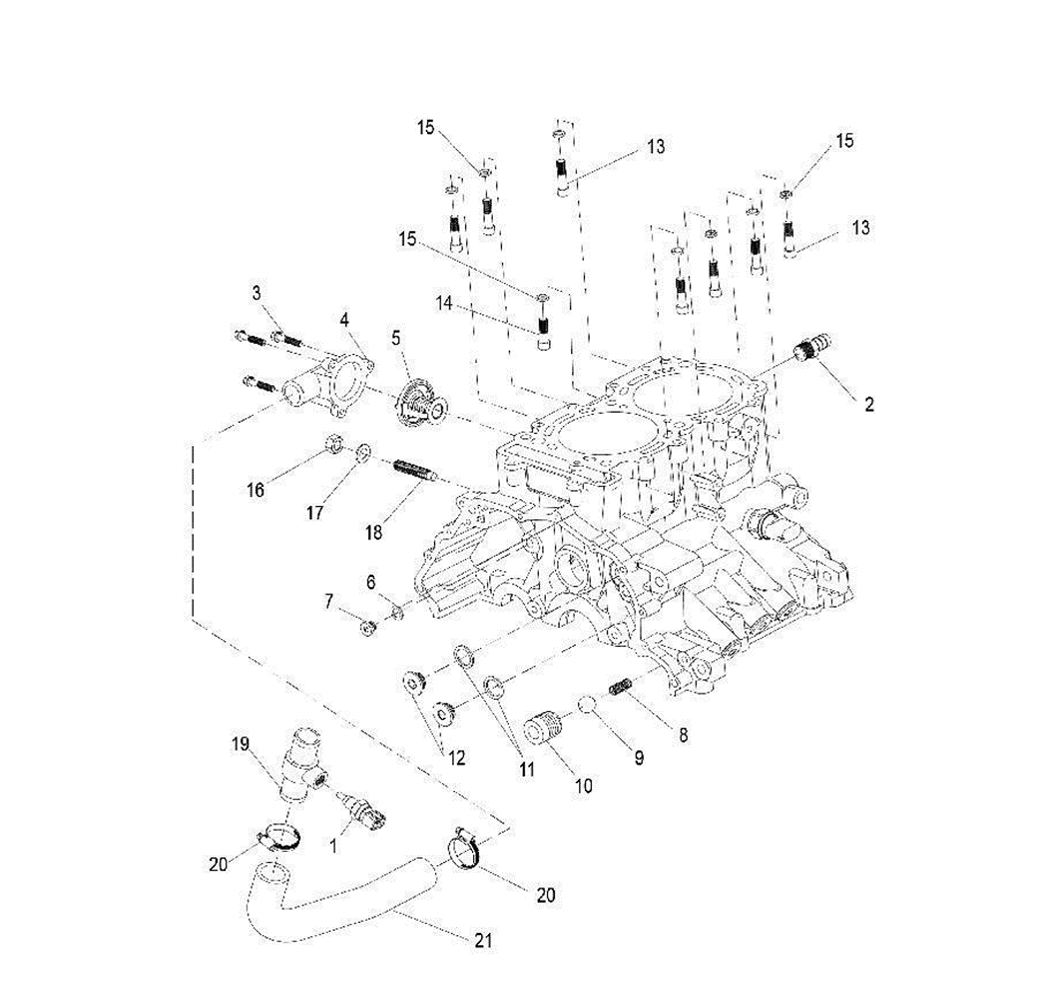

ENGINE - UPPER CRANKCASE ASSEMBLY 2
