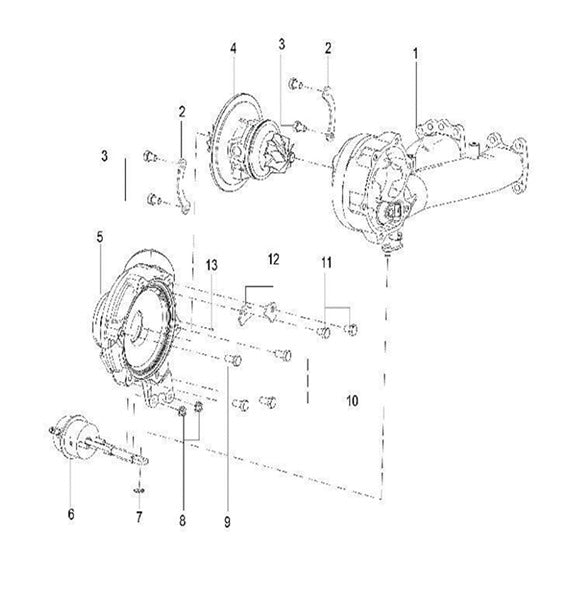

Product Mapper

Item Number Description Part Number Price
1
Turbine housing assembly
18005337002 $2,474.55
18005337002 $2,474.55
2
Vortex end pressure plate
18033337002 $9.11
18033337002 $9.11
3
Bolt 3/4
$3.65
$3.65
4
intermediate
18030337001 $1,458.00
18030337001 $1,458.00
5
Turbine compressor casing
18029337001 $1,093.50
18029337001 $1,093.50
6
Actuator
18031337001 $303.75
18031337001 $303.75
7
Circlip
91001000007 $10.13
91001000007 $10.13
8
Hexagon flange nut M5
90303000015 $14.18
90303000015 $14.18
9
bolt M8×16×5/8
90101000009 $14.18
90101000009 $14.18
10
bolt M8×18×5/8
90101000010 $16.20
90101000010 $16.20
11
bolt M8×12×5/8
90101000008 $14.18
90101000008 $14.18
12
Pressure end pressing plate
18033337001 $12.15
18033337001 $12.15
13
Locating pin 2×5
90901000012 $4.05
90901000012 $4.05
Description
Turbo Assembly El Diablo
