Liquid error (snippets/part-product-form line 13): product form must be given a product

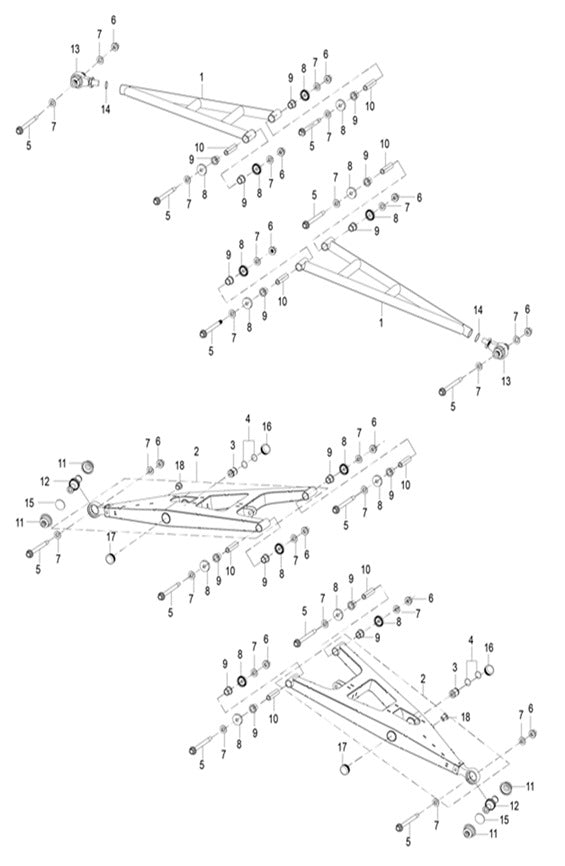

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Front upper A-arm weld asembly (orange)B15230A00 $478.80 |
B15230A00 | $478.80 | |
| 2 | Front Lower A-arm weld asembly (orange)B15230A00 $478.80 |
B15230A00 | $478.80 | |
| 3 | Rear A-arm lower damping bushingB15510400 $7.92 |
B15510400 | $7.92 | |
| 4 | O-ring 20.7×2.6PJ00000912013000 $2.58 |
PJ00000912013000 | $2.58 | |
| 5 | Bolt M12× 1.25×132B19010200 $29.99 |
B19010200 | $29.99 | |
| 6 | Nut M12× 1.25×16.5B19030200 $3.01 |
B19030200 | $3.01 | |
| 7 | Washer 12×27×2B19060100 $5.68 |
B19060100 | $5.68 | |
| 8 | MSRP: |
MSRP: |
Liquid error (snippets/part-product-form line 13): product form must be given a product
|
|
| 9 | Flanged bushing φ18×φ22×20B19293B00 $14.52 |
B19293B00 | $14.52 | |
| 10 | Cylindrical bushing φ12×φ18×70B1929A100 $12.00 |
B1929A100 | $12.00 | |
| 11 | Rubber boot BB1525A200 $5.74 |
B1525A200 | $5.74 | |
| 12 | Knuckle ball stud assy BB15251000 $62.70 |
B15251000 | $62.70 | |
| 13 | Knuckle ball stud BB15250000 $116.05 |
B15250000 | $116.05 | |
| 14 | Double-lapped lock washer M22B15250300 $1.90 |
B15250300 | $1.90 | |
| 15 | Helical elastic circlip-EH38B15250200 $2.18 |
B15250200 | $2.18 | |
| 16 | Front A arm shock bolt plastic capB19244004 $0.49 |
B19244004 | $0.49 | |
| 17 | Cicular plastic plug φ38B19244003 $11.99 |
B19244003 | $11.99 | |
| 18 | Jack SupportB15235ABD $4.48 |
B15235ABD | $4.48 |
Description
Suspension Front Suspension Arms El Diablo
