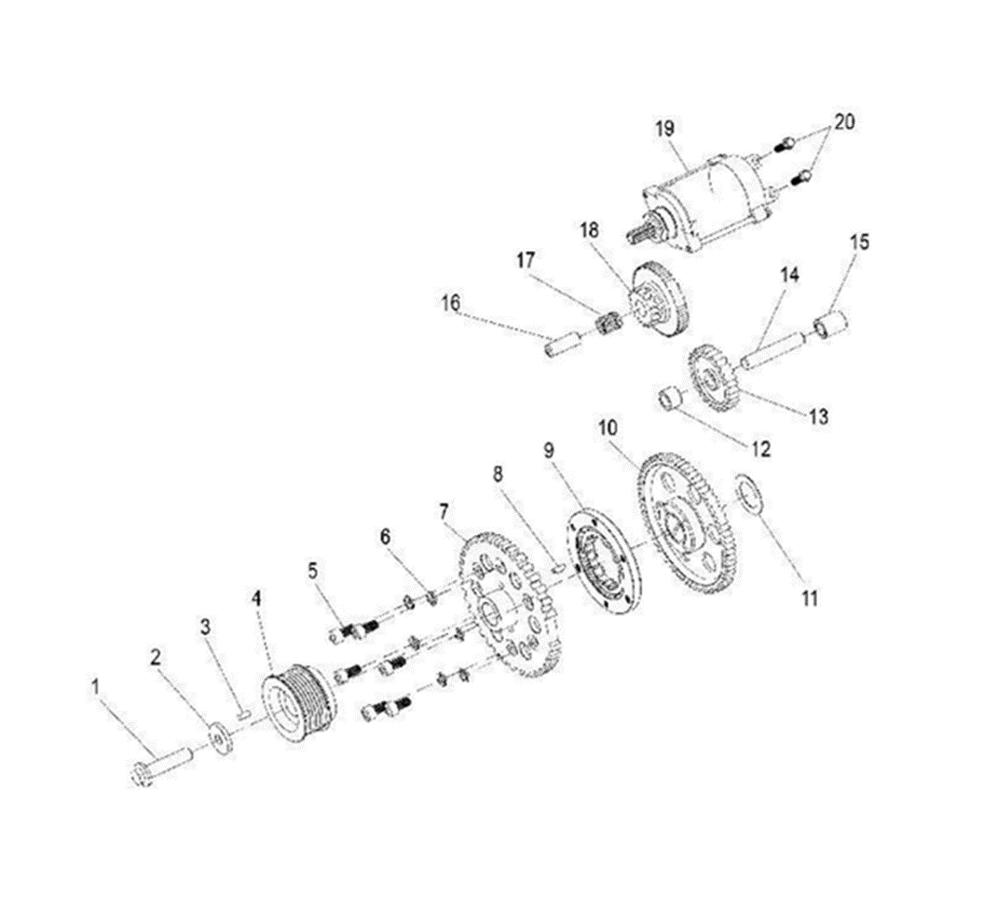

Item Number | Description | Part Number | Price | |
---|---|---|---|---|
1 | Hex bolt with flange M12×1.25×50E03159300 $10.80 |
E03159300 | $10.80 | |
2 | Flat washer Φ12.5×37×3E09060100 $1.76 |
E09060100 | $1.76 | |
3 | Flat key B5×10BGB1096-B5×10 $0.73 |
BGB1096-B5×10 | $0.73 | |
4 | Belt driving pulleyE03159100 $50.06 |
E03159100 | $50.06 | |
5 | Pan head socket head cap screw M8×16PJ00000902260100 $1.35 |
PJ00000902260100 | $1.35 | |
6 | Spring washer 8BGB93-8 $0.08 |
BGB93-8 | $0.08 | |
7 | Crankshaft signal discE01342900 $81.41 |
E01342900 | $81.41 | |
8 | Semicircle keyE01320100 $0.24 |
E01320100 | $0.24 | |
9 | Stater clutch assemblyP010000243100000 $51.88 |
P010000243100000 | $51.88 | |
10 | Disc gear assemblyE02440A00 $69.09 |
E02440A00 | $69.09 | |
11 | Flat washer Φ26× Φ40×1E09060000 $2.84 |
E09060000 | $2.84 | |
12 | Bushing Φ12×Φ19×13E01103500 $2.39 |
E01103500 | $2.39 | |
13 | Starter bridge gearE02441200 $37.95 |
E02441200 | $37.95 | |
14 | Starter bridge gear shaftE02450700 $2.67 |
E02450700 | $2.67 | |
15 | Bushing Φ12×Φ19×23.4E01103600 $2.96 |
E01103600 | $2.96 | |
16 | Double gear shaftP004000245040000 $1.38 |
P004000245040000 | $1.38 | |
17 | Needle bearing KBK121618P121618937000000 $5.06 |
P121618937000000 | $5.06 | |
18 | Double gearE02450300 $33.78 |
E02450300 | $33.78 | |
19 | Starter motor assemblyE03120000 $234.13 |
E03120000 | $234.13 | |
20 | Hex bolt with flange M6×25BGB16674-M6×25 $0.68 |
BGB16674-M6×25 | $0.68 |
