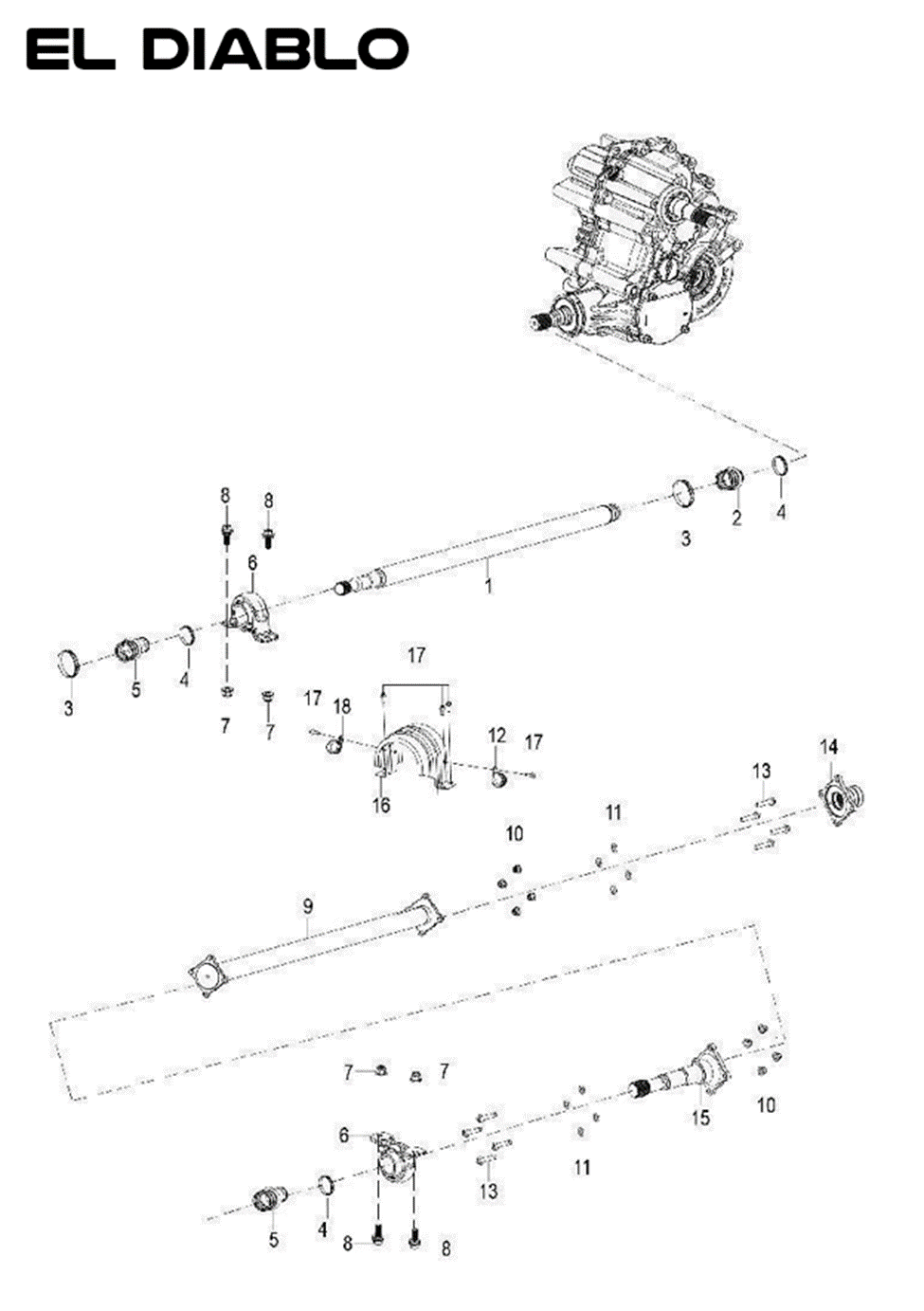

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | El Diablo Rear driveshaft assyB32531000 $187.96 |
B32531000 | $187.96 | |
| 2 | Driveshaft dustproof rubber sleeve BB1251020B $7.37 |
B1251020B | $7.37 | |
| 3 | Earless stepless clamp φ46.3PJ00000907500100 $1.46 |
PJ00000907500100 | $1.46 | |
| 4 | Earless stepless clamp φ36.8PJ00000907500000 $1.22 |
PJ00000907500000 | $1.22 | |
| 5 | Driveshaft dustproof rubber sleeve AB1251020A $8.75 |
B1251020A | $8.75 | |
| 6 | Drive shaft bearing carrier assembly (FYHPP207)B12560000 $87.93 |
B12560000 | $87.93 | |
| 7 | Self-locking nut M10BGB6187.2-M10 $0.49 |
BGB6187.2-M10 | $0.49 | |
| 8 | Bolt,spring washer and flat washer assy M10×28PJ00000903480500 $6.08 |
PJ00000903480500 | $6.08 | |
| 9 | Front drive shaft assemblyB12521000 $236.36 |
B12521000 | $236.36 | |
| 10 | Metal insert hex flange lock nut M8BGB6187-M8 $0.36 |
BGB6187-M8 | $0.36 | |
| 11 | Plain washer φ8.5×φ16×3.5PJ00000906050400 $0.54 |
PJ00000906050400 | $0.54 | |
| 12 | Φ12 304 stainless steel clamp with coatingPJ00000907400400 $1.94 |
PJ00000907400400 | $1.94 | |
| 13 | Hex bolt with flange M8× 35PJ00000903490000 $0.53 |
PJ00000903490000 | $0.53 | |
| 14 | Driveshaft connector IB12521110 $32.60 |
B12521110 | $32.60 | |
| 15 | Driveshaft connector IIIB12521310 $58.60 |
B12521310 | $58.60 | |
| 16 | Drive shaft shieldB15113200 $34.02 |
B15113200 | $34.02 | |
| 17 | Hex bolt with flange M6× 16BGB16674-M6×16 $0.16 |
BGB16674-M6×16 | $0.16 | |
| 18 | Φ 32 304 stainless steel adhesive clamp（ Φ6）PJ00000907400700 $3.65 |
PJ00000907400700 | $3.65 |
Description
drive shaft el diablo
