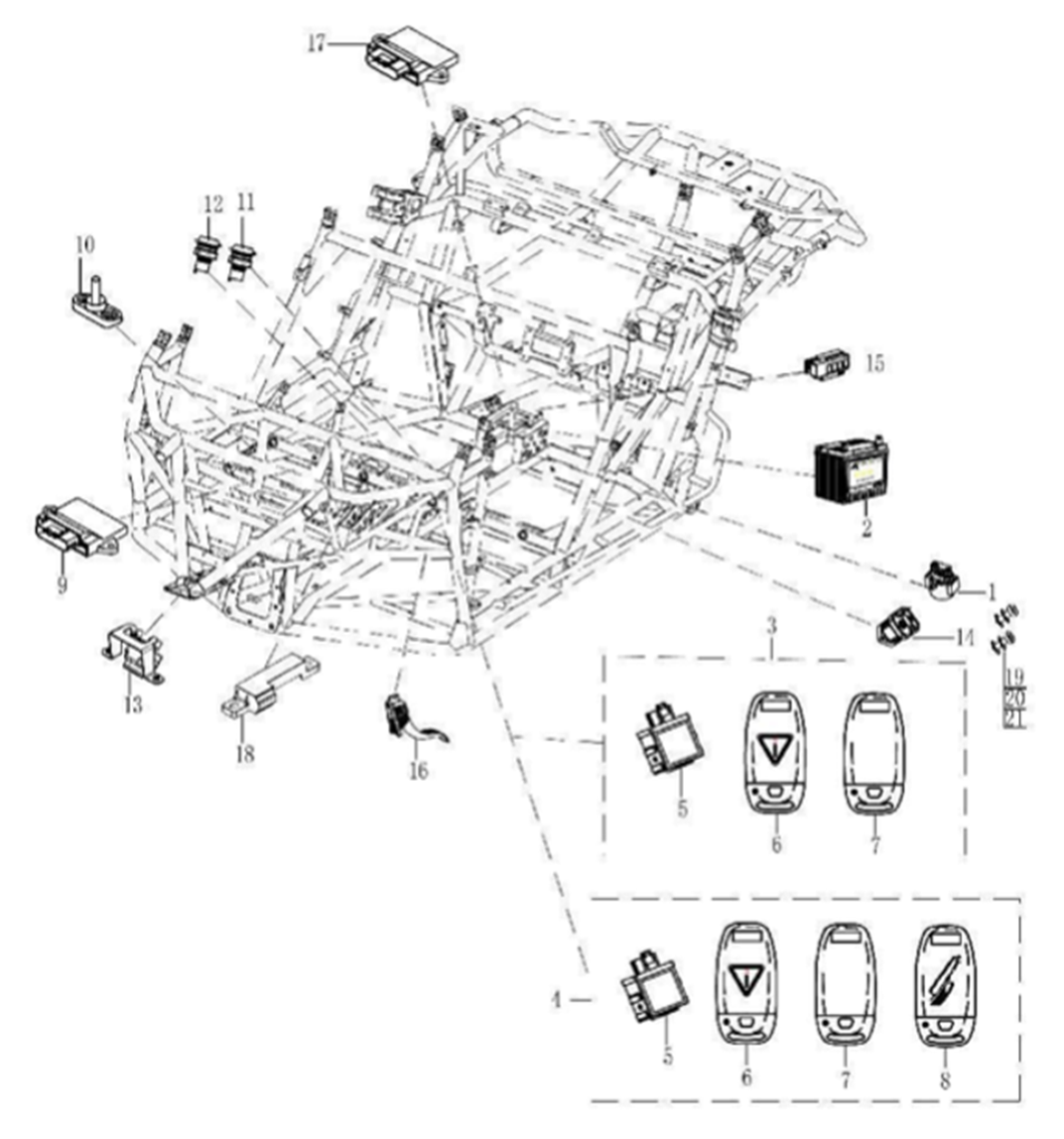

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Stator RelayB13770500 $18.31 |
B13770500 | $18.31 | |
| 2 | Battery ComponentsB13220000 $276.05 |
B13220000 | $276.05 | |
| 3 | PKE Controller kit（pke and two keys matched to a set）B13861100 $253.17 |
B13861100 | $253.17 | |
| 4 | PKE Controller kit（pke and three keys matched to a set）B13861110 $322.99 |
B13861110 | $322.99 | |
| 5 | PKE ControllerB13861001 $113.52 |
B13861001 | $113.52 | |
| 6 | valet key（with triangle logo）B13865011 $71.85 |
B13865011 | $71.85 | |
| 7 | Common key（no logo）B13865010 $69.82 |
B13865010 | $69.82 | |
| 8 | speed key(with speed logo)B13865012 $69.82 |
B13865012 | $69.82 | |
| 9 | BCM ControllerB13783000 $152.56 |
B13783000 | $152.56 | |
| 10 | Positive TerminalB13251400 $13.45 |
B13251400 | $13.45 | |
| 11 | DC socket combinationB13717500 $14.05 |
B13717500 | $14.05 | |
| 12 | USB output base combinationB13253000 $52.93 |
B13253000 | $52.93 | |
| 13 | Front CameraB13610100 $58.81 |
B13610100 | $58.81 | |
| 14 | Main RelayB13773510 $41.43 |
B13773510 | $41.43 | |
| 15 | 200A FUSE BOXPJ00000383500200 $45.81 |
PJ00000383500200 | $45.81 | |
| 16 | Accelerator Pedel ModuleP321001379410001 $66.34 |
P321001379410001 | $66.34 | |
| 17 | ECU controller componentsB13920030 $3,240.08 |
B13920030 | $3,240.08 | |
| 18 | Low Frequency AntennaB13862000 $17.98 |
B13862000 | $17.98 | |
| 19 | bolt M4×20BGB70-M4×20 $0.12 |
BGB70-M4×20 | $0.12 | |
| 20 | Flat washer 4BGB97.1-4 $0.08 |
BGB97.1-4 | $0.08 | |
| 21 | Flat washer 4BGB97.1-4 $0.08 |
BGB97.1-4 | $0.08 |
Description
Electrical Components
