Tailgate outer panel

$99.71 View Item

Nut clamp M6×6

$0.36 View Item

Tailgate handle

$5.91 View Item

Slotted pin φ6×148

$1.94 View Item

Tailgate connector

$0.85 View Item

Split ring 5

$0.08 View Item

Tailgate latch assembly Ⅱ

$16.24 View Item

Non-metallic insert hex flange lock nut M6

$0.20 View Item

Door latch mount I

$1.46 View Item

Inner hex bolt with washer M6×16

$0.24 View Item

Hexagon socket bolt with disc M6×20

$0.32 View Item

Tailgate latch assembly

$16.24 View Item

Tailgate latch lever

$2.11 View Item

Door latch mount II

$3.48 View Item

Inner hex step bolt M8×15-φ10×14.5

$2.15 View Item

Tailgate latch turning lever

$3.52 View Item

Torsion spring 0A (tailgate latch switch)

$0.97 View Item

Tailgate handle assembly

$18.23 View Item

Inner hex bolt with washer M6×16

$0.24 View Item

Tailgate reinforcement tube

$42.53 View Item

Inner hex bolt with washer M6×35

$0.45 View Item

Inner hex bolt with washer M6×35

$0.45 View Item

Inner hex bolt with washer M6×35

$0.45 View Item

Inner hex bolt with washer M6×35

$0.45 View Item

Inner hex bolt with washer M6×35

$0.45 View Item

Product Mapper

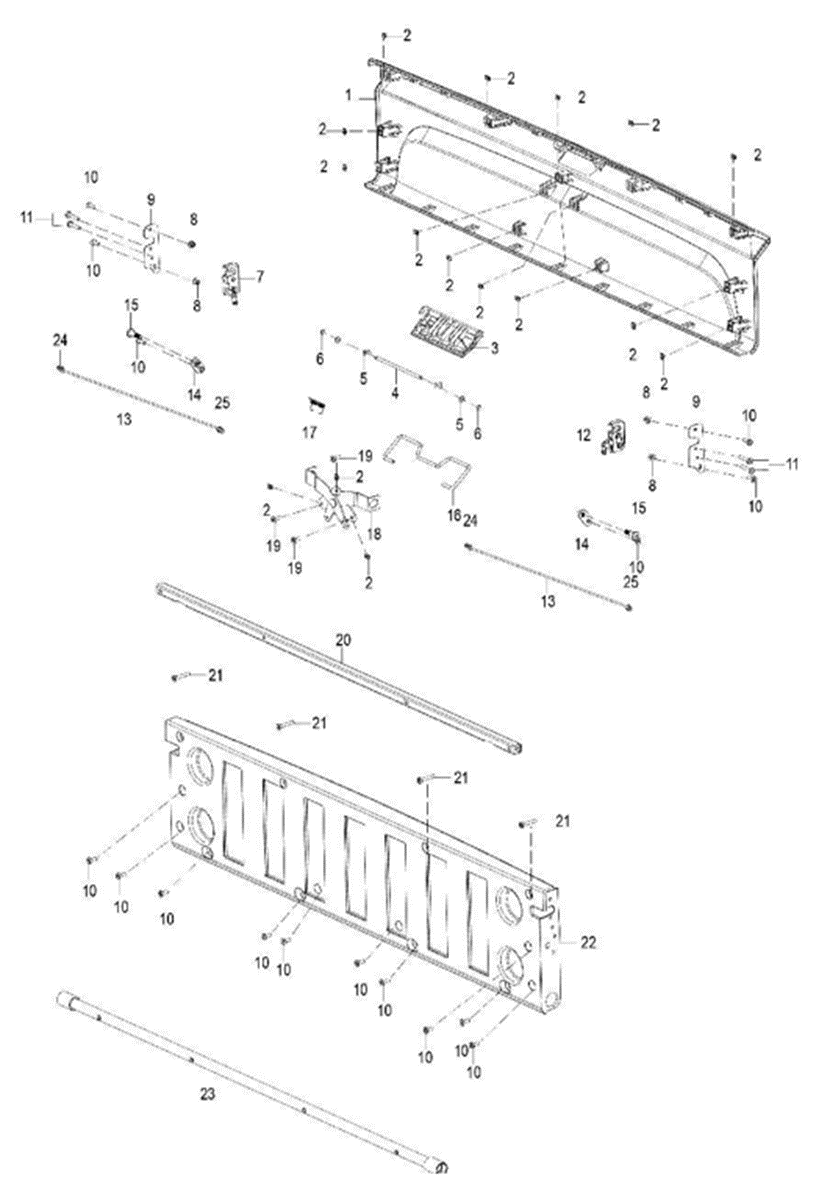

Item Number Description Part Number Price
1
Tailgate outer panel
B18270400 $99.71 		B18270400 $99.71
2
Nut clamp M6×6
PJ00000903500200 $0.36 		PJ00000903500200 $0.36
3
Tailgate handle
B18271500 $5.91 		B18271500 $5.91
4
Slotted pin φ6×148
B19297200 $1.94 		B19297200 $1.94
5
Tailgate connector
B15111400 $0.85 		B15111400 $0.85
6
Split ring 5
BGB896-5 $0.08 		BGB896-5 $0.08
7
Tailgate latch assembly Ⅱ
B18953500 $16.24 		B18953500 $16.24
8
Non-metallic insert hex flange lock nut M6
BGB6183.2-M6 $0.20 		BGB6183.2-M6 $0.20
9
Door latch mount I
B15192300 $1.46 		B15192300 $1.46
10
Inner hex bolt with washer M6×16
PJ00000902250100 $0.24 		PJ00000902250100 $0.24
11
Hexagon socket bolt with disc M6×20
PJ00000902250400 $0.32 		PJ00000902250400 $0.32
12
Tailgate latch assembly
B18953000 $16.24 		B18953000 $16.24
13
Tailgate latch lever
B18953100 $2.11 		B18953100 $2.11
14
Door latch mount II
P315001519240000 $3.48 		P315001519240000 $3.48
15
Inner hex step bolt M8×15-φ10×14.5
PJ00000902270100 $2.15 		PJ00000902270100 $2.15
16
Tailgate latch turning lever
B18955100 $3.52 		B18955100 $3.52
17
Torsion spring 0A (tailgate latch switch)
B1933000A $0.97 		B1933000A $0.97
18
Tailgate handle assembly
B18955000 $18.23 		B18955000 $18.23
19
Inner hex bolt with washer M6×16
PJ00000902250100 $0.24 		PJ00000902250100 $0.24
20
Tailgate reinforcement tube
B15150K00 $42.53 		B15150K00 $42.53
21
Inner hex bolt with washer M6×35
PJ00000902251000 $0.45 		PJ00000902251000 $0.45
22
Inner hex bolt with washer M6×35
PJ00000902251000 $0.45 		PJ00000902251000 $0.45
23
Inner hex bolt with washer M6×35
PJ00000902251000 $0.45 		PJ00000902251000 $0.45
24
Inner hex bolt with washer M6×35
PJ00000902251000 $0.45 		PJ00000902251000 $0.45
25
Inner hex bolt with washer M6×35
PJ00000902251000 $0.45 		PJ00000902251000 $0.45
Description
tailgate el diablo
