Bulkhead assembly

$4,887.30 View Item

Bulkhead upper plate assembly

$12.23 View Item

Front swaybar fixing plate

$34.43 View Item

Hex bolt with flange M10×30

$0.53 View Item

Washer 10×22×2.5

$0.32 View Item

Hex bolt with flange M10×1.25×40

$2.57 View Item

Metal hex flange lock nut M10×1.25

$0.57 View Item

Hex bolt with flange M10×25

$3.24 View Item

Product Mapper

Item Number Description Part Number Price
1
Bulkhead assembly
E02710000 $4,887.30 		E02710000 $4,887.30
2
Bulkhead upper plate assembly
B15110500 $12.23 		B15110500 $12.23
3
Front swaybar fixing plate
B15166800 $34.43 		B15166800 $34.43
4
Hex bolt with flange M10×30
BGB70.1-M10×1.25x30 $0.53 		BGB70.1-M10×1.25x30 $0.53
5
Washer 10×22×2.5
PJ00000906000600 $0.32 		PJ00000906000600 $0.32
6
Hex bolt with flange M10×1.25×40
BGB16674-M10×1.25×40 $2.57 		BGB16674-M10×1.25×40 $2.57
7
Metal hex flange lock nut M10×1.25
BGB6187-M10X1.25 $0.57 		BGB6187-M10X1.25 $0.57
8
Hex bolt with flange M10×25
BGB16674-M10×25 $3.24 		BGB16674-M10×25 $3.24
Description

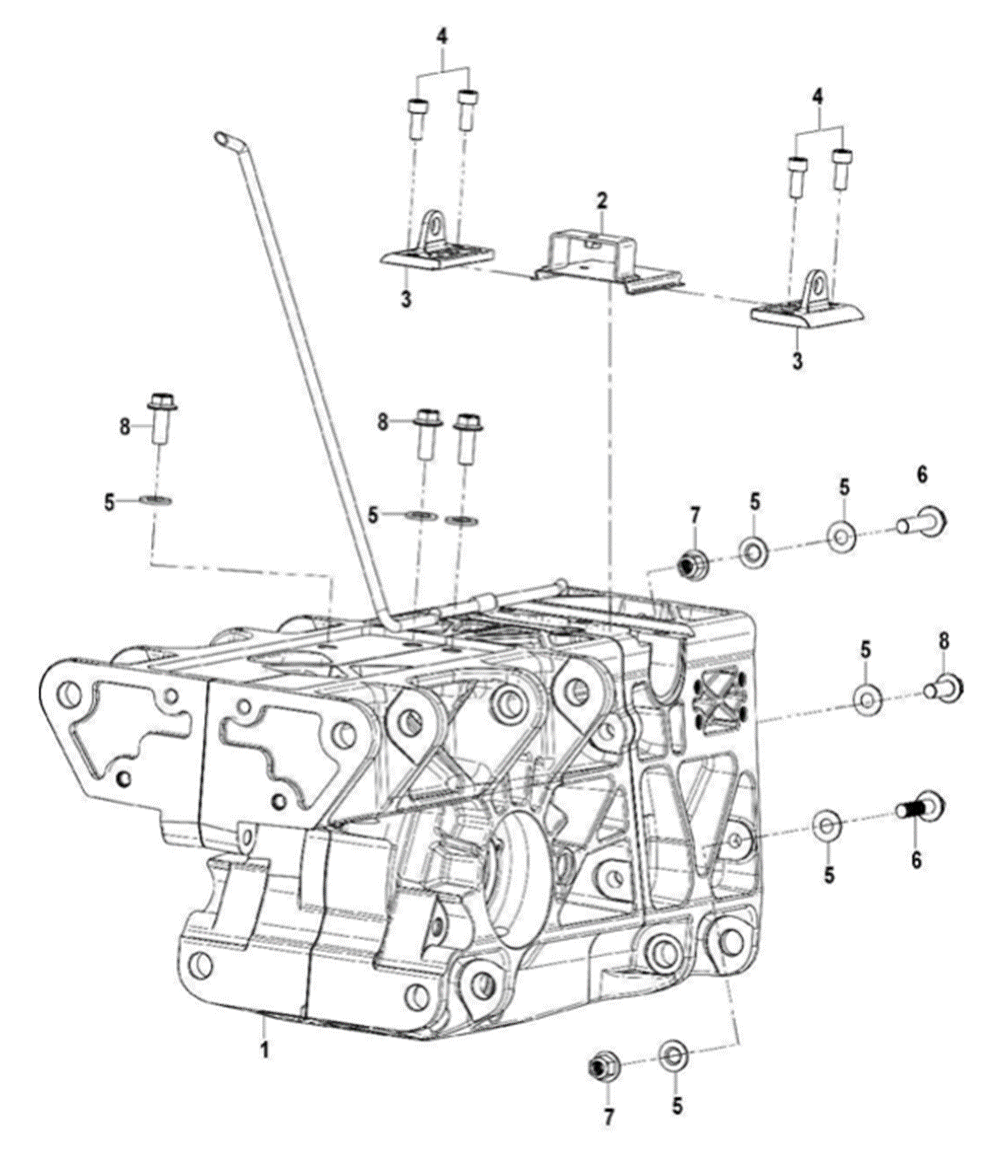

Front Differential Mounting
