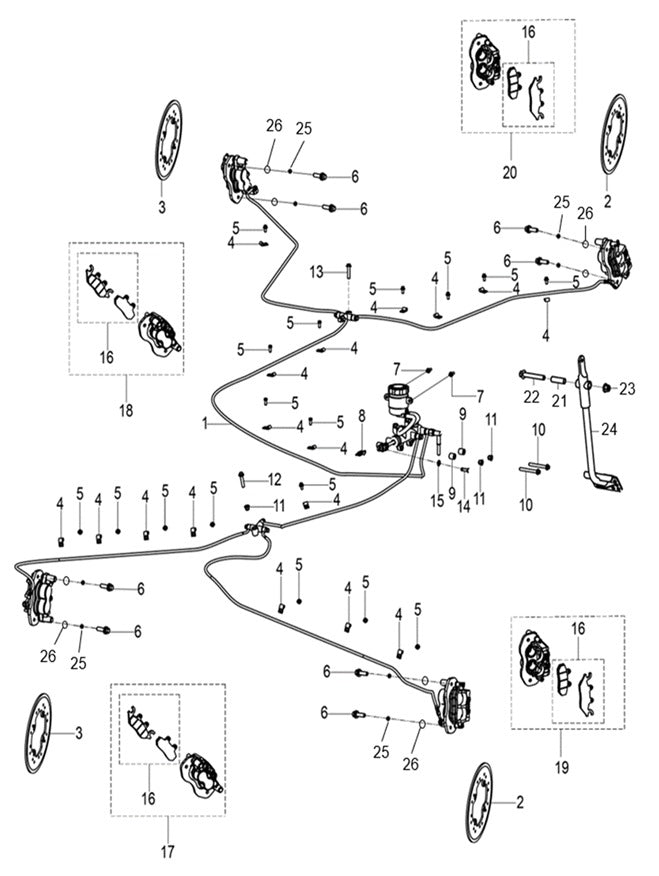

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Brake assembly IB14410001 $1,102.37 |
B14410001 | $1,102.37 | |
| 2 | Front left brake discB14445100 $92.34 |
B14445100 | $92.34 | |
| 3 | Front rear brake discB14445200 $67.03 |
B14445200 | $67.03 | |
| 4 | Brake oil tube clampB14445300 $5.71 |
B14445300 | $5.71 | |
| 5 | Hex bolt with flange M6×12BGB16674-M6×12 $0.12 |
BGB16674-M6×12 | $0.12 | |
| 6 | Bolt、spring washer & flat washer assy M10×26PJ00000903480400 $2.30 |
PJ00000903480400 | $2.30 | |
| 7 | Hex bolt with flange M6× 16BGB5787-M6×16 $0.16 |
BGB5787-M6×16 | $0.16 | |
| 8 | Tension spring 0A (brake pedal return spring)B1961000A $0.45 |
B1961000A | $0.45 | |
| 9 | Cylindrical bushing φ8×φ16×16B19290B00 $2.51 |
B19290B00 | $2.51 | |
| 10 | Hex bolt with flange M8×65PJ00000903490100 $2.20 |
PJ00000903490100 | $2.20 | |
| 11 | Metal insert hex flange lock nut M8BGB6187-M8 $0.36 |
BGB6187-M8 | $0.36 | |
| 12 | Hex bolt with flange M8× 40BGB16674-M8×40 $0.41 |
BGB16674-M8×40 | $0.41 | |
| 13 | Hex bolt with flange M8× 35BGB16674-M8×35 $0.36 |
BGB16674-M8×35 | $0.36 | |
| 14 | PinB14445400 $5.71 |
B14445400 | $5.71 | |
| 15 | Washer φ8×φ16B14445500 $30.00 |
B14445500 | $30.00 | |
| 16 | Front Brake shoe combinationPDDC007441120000 $72.90 |
PDDC007441120000 | $72.90 | |
| 17 | Front right brake caliper assyB14412000 $250.00 |
B14412000 | $250.00 | |
| 18 | Rear right brake caliper assyB14422000 $250.00 |
B14422000 | $250.00 | |
| 19 | Front left brake caliper assyB14411000 $250.00 |
B14411000 | $250.00 | |
| 20 | Rear left brake caliper assyB14421000 $250.00 |
B14421000 | $250.00 | |
| 21 | Rear left brake caliper assyB14421000 $250.00 |
B14421000 | $250.00 | |
| 22 | Rear left brake caliper assyB14421000 $250.00 |
B14421000 | $250.00 | |
| 23 | Rear left brake caliper assyB14421000 $250.00 |
B14421000 | $250.00 | |
| 24 | Rear left brake caliper assyB14421000 $250.00 |
B14421000 | $250.00 | |
| 25 | Rear left brake caliper assyB14421000 $250.00 |
B14421000 | $250.00 |
Description
Brakes El Jefe
