Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Needle bearing SCH10891101000002 $95.59 |
91101000002 | $95.59 | |
| 2 | Front diff main gearE02710100 $247.76 |
E02710100 | $247.76 | |
| 3 | Deep-groove ball bearing 6208BGB276-6208 $49.57 |
BGB276-6208 | $49.57 | |
| 4 | Circlip for shaft d0=4091002000005 $0.32 |
91002000005 | $0.32 | |
| 5 | Main gear gasket22008337001 $13.93 |
22008337001 | $13.93 | |
| 6 | Circlip for hole d0=10091004000002 $11.66 |
91004000002 | $11.66 | |
| 7 | Input shaft integrate sleeve22009337001 $61.92 |
22009337001 | $61.92 | |
| 8 | Circlip for shaft d0=5591002000006 $7.30 |
91002000006 | $7.30 | |
| 9 | Bearing flat washer22010337001 $17.02 |
22010337001 | $17.02 | |
| 10 | Deep-groove ball bearing 1601128911337004 $52.68 |
28911337004 | $52.68 | |
| 11 | Bearing flat washer22010337001 $17.02 |
22010337001 | $17.02 | |
| 12 | Front diff input spline sleeveE02717201 $163.84 |
E02717201 | $163.84 | |
| 13 | Saddle gasket semi circlip22011337001 $17.99 |
22011337001 | $17.99 | |
| 14 | Saddle gasket circlip22012337001 $9.58 |
22012337001 | $9.58 | |
| 15 | Saddle gasket22013337001 $19.93 |
22013337001 | $19.93 | |
| 16 | Friction disc circlip22014337001 $9.96 |
22014337001 | $9.96 | |
| 17 | Driving friction disc22015337001 $1.79 |
22015337001 | $1.79 | |
| 18 | driven friction disc22016337001 $1.79 |
22016337001 | $1.79 | |
| 19 | Friction disc circlip22014337001 $9.96 |
22014337001 | $9.96 | |
| 20 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 | |
| 21 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 | |
| 22 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 | |
| 23 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 | |
| 24 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 | |
| 25 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 | |
| 26 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 | |
| 27 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 | |
| 28 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 | |
| 29 | Input shaft bearing washer φ40×φ50×590602000009 $7.63 |
90602000009 | $7.63 |
Description

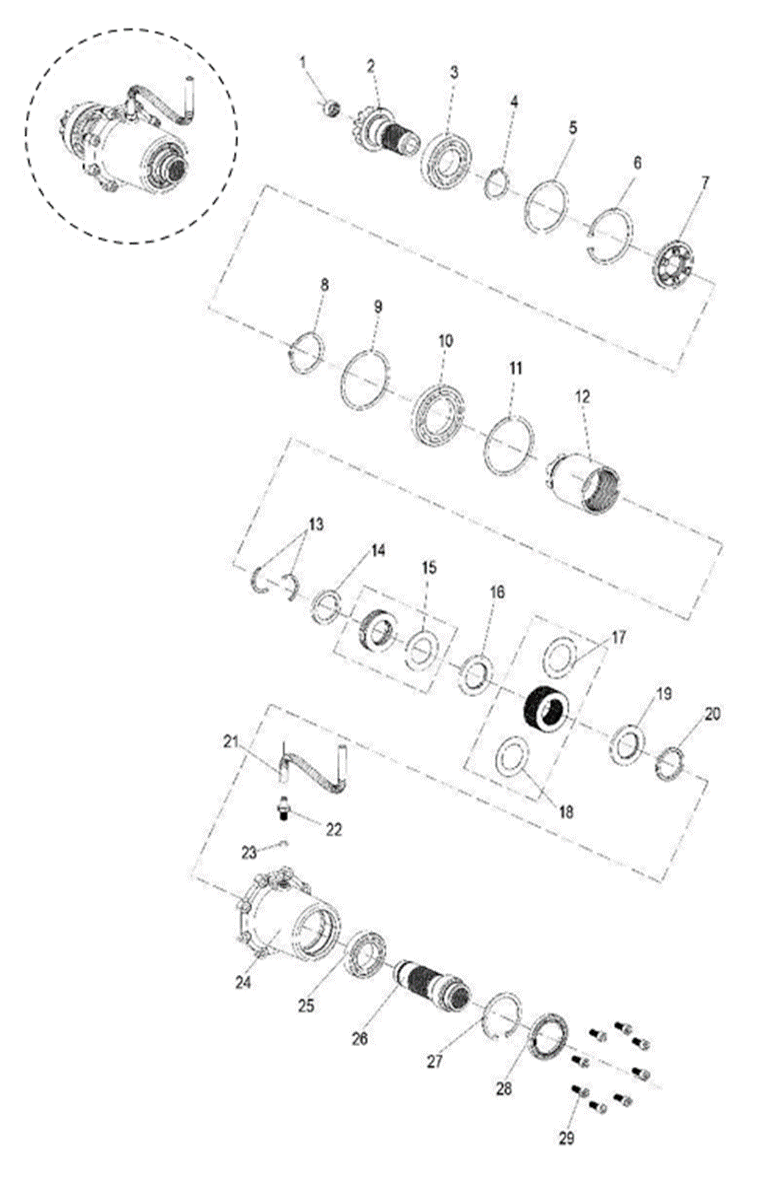

Front Differential Output
