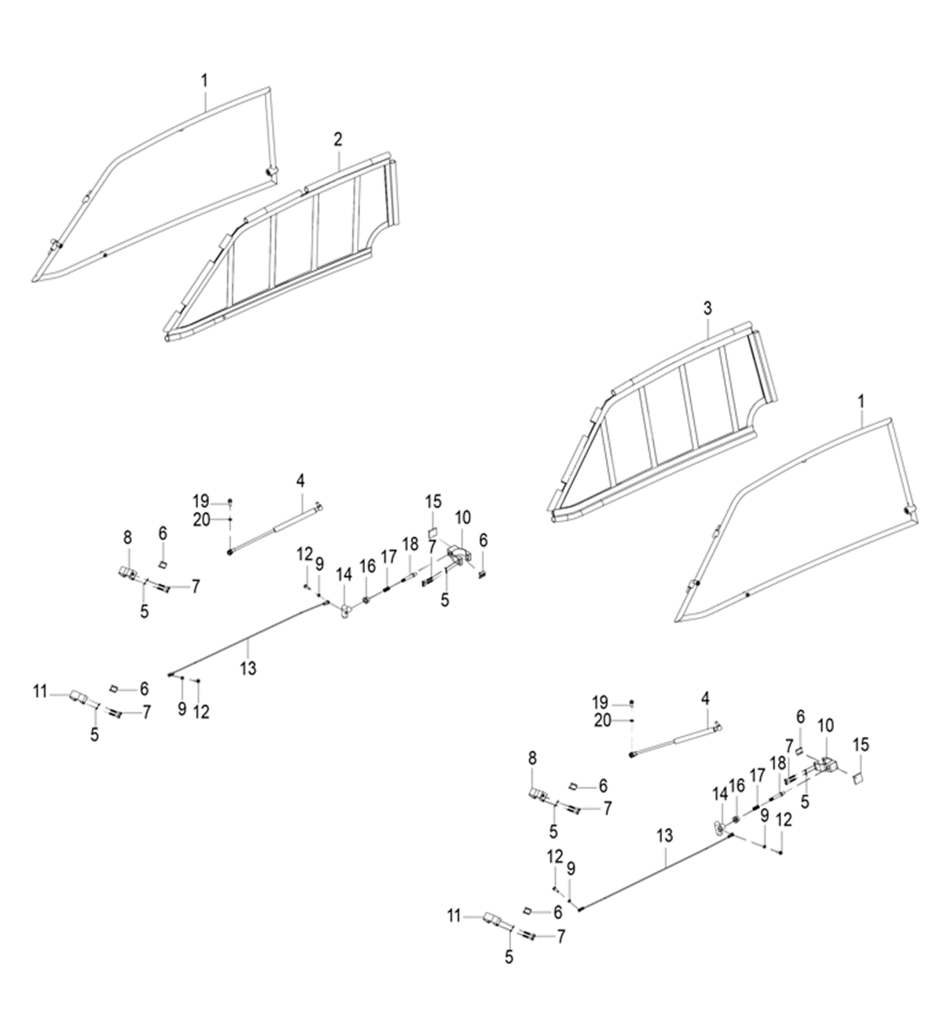

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Door welding assy(Upper)B15190A01 $73.99 |
B15190A01 | $73.99 | |
| 2 | Window net FRB17525001 $53.91 |
B17525001 | $53.91 | |
| 3 | Window net FLB17524001 $53.91 |
B17524001 | $53.91 | |
| 4 | Door gas spring assembly IB18450300 $44.35 |
B18450300 | $44.35 | |
| 5 | Spring Washer 6BGB93-6 $0.12 |
BGB93-6 | $0.12 | |
| 6 | Door hinge connect plateB18450H00 $2.03 |
B18450H00 | $2.03 | |
| 7 | Inner hex cylinder head screw M6×40$0.20 |
$0.20 | ||
| 8 | Upper door clamp IIB18450B00 $9.48 |
B18450B00 | $9.48 | |
| 9 | Flat washer φ6.4×φ12×1.6BGB97.1-6 $0.08 |
BGB97.1-6 | $0.08 | |
| 10 | Upper door clamp IVB18450D10 $9.60 |
B18450D10 | $9.60 | |
| 11 | Upper door clamp IB18450A00 $8.51 |
B18450A00 | $8.51 | |
| 12 | Inner hex bolt with washer M6×16PJ00000902250100 $0.24 |
PJ00000902250100 | $0.24 | |
| 13 | Door cable BB17293A02 $7.98 |
B17293A02 | $7.98 | |
| 14 | Upper door handle assemblyB18450E00 $11.91 |
B18450E00 | $11.91 | |
| 15 | Foam pad 30x28x5B19401010 $0.41 |
B19401010 | $0.41 | |
| 16 | Upper door lock pin position sleeveB18450F00 $4.94 |
B18450F00 | $4.94 | |
| 17 | Upper door switch springB19620022 $0.61 |
B19620022 | $0.61 | |
| 18 | Upper door fixing pinB18450G00 $3.32 |
B18450G00 | $3.32 | |
| 19 | Inner hex cylinder head screw M8×20BGB70.1-M8×20 $0.41 |
BGB70.1-M8×20 | $0.41 | |
| 20 | Washer 8BGB97.1-8 $0.12 |
BGB97.1-8 | $0.12 |
Description
accessories window nets el diablo
