Tension plate bolt M8×45

$2.69 View Item

Chain tensioning guide

$94.78 View Item

Chain guide

$19.25 View Item

Timing chain M9-6.35-146

$103.27 View Item

Intake camshaft assembly

$149.45 View Item

Exhaust camshaft assembly

$170.59 View Item

Positioning pin φ8×φ6.5×12

$0.10 View Item

Intake camshaft bracket

$33.43 View Item

Exhaust camshaft bracket

$33.19 View Item

Chain skid plate

$16.86 View Item

Hex bolt with flange M6×40

$0.97 View Item

Hex bolt with flange M6× 25

$0.82 View Item

Tensioner assembly

$51.04 View Item

Tensioner gasket

$1.30 View Item

Product Mapper

Item Number Description Part Number Price
1
Tension plate bolt M8×45
E01450100 $2.69 		E01450100 $2.69
2
Chain tensioning guide
E01451B01 $94.78 		E01451B01 $94.78
3
Chain guide
E01452B00 $19.25 		E01452B00 $19.25
4
Timing chain M9-6.35-146
E01430200 $103.27 		E01430200 $103.27
5
Intake camshaft assembly
E01421A00 $149.45 		E01421A00 $149.45
6
Exhaust camshaft assembly
E01422A00 $170.59 		E01422A00 $170.59
7
Positioning pin φ8×φ6.5×12
PJ00000908020100 $0.10 		PJ00000908020100 $0.10
8
Intake camshaft bracket
E01421400 $33.43 		E01421400 $33.43
9
Exhaust camshaft bracket
E01422300 $33.19 		E01422300 $33.19
10
Chain skid plate
E01452600 $16.86 		E01452600 $16.86
11
Hex bolt with flange M6×40
BGB5787-M6×40 $0.97 		BGB5787-M6×40 $0.97
12
Hex bolt with flange M6× 25
BGB5787-M6×25 $0.82 		BGB5787-M6×25 $0.82
13
Tensioner assembly
E01453001 $51.04 		E01453001 $51.04
14
Tensioner gasket
P002000145080000 $1.30 		P002000145080000 $1.30
Description

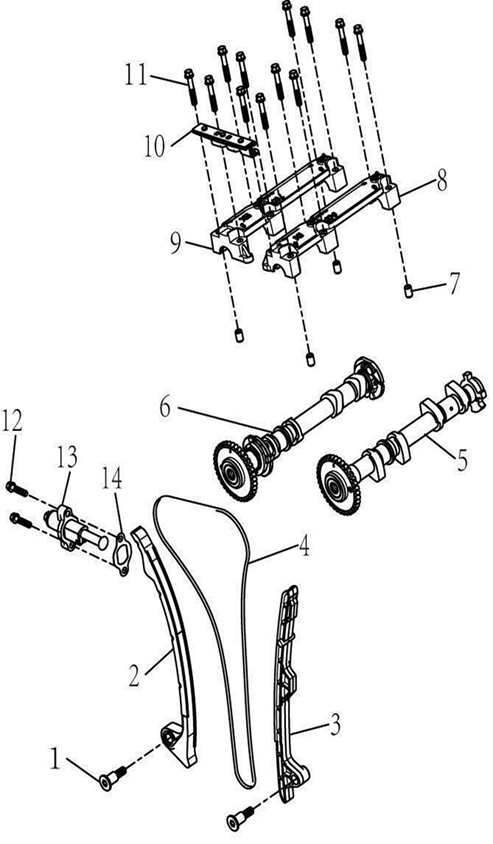

ENGINE - VALVE MECHANISM ASSEMBLY
