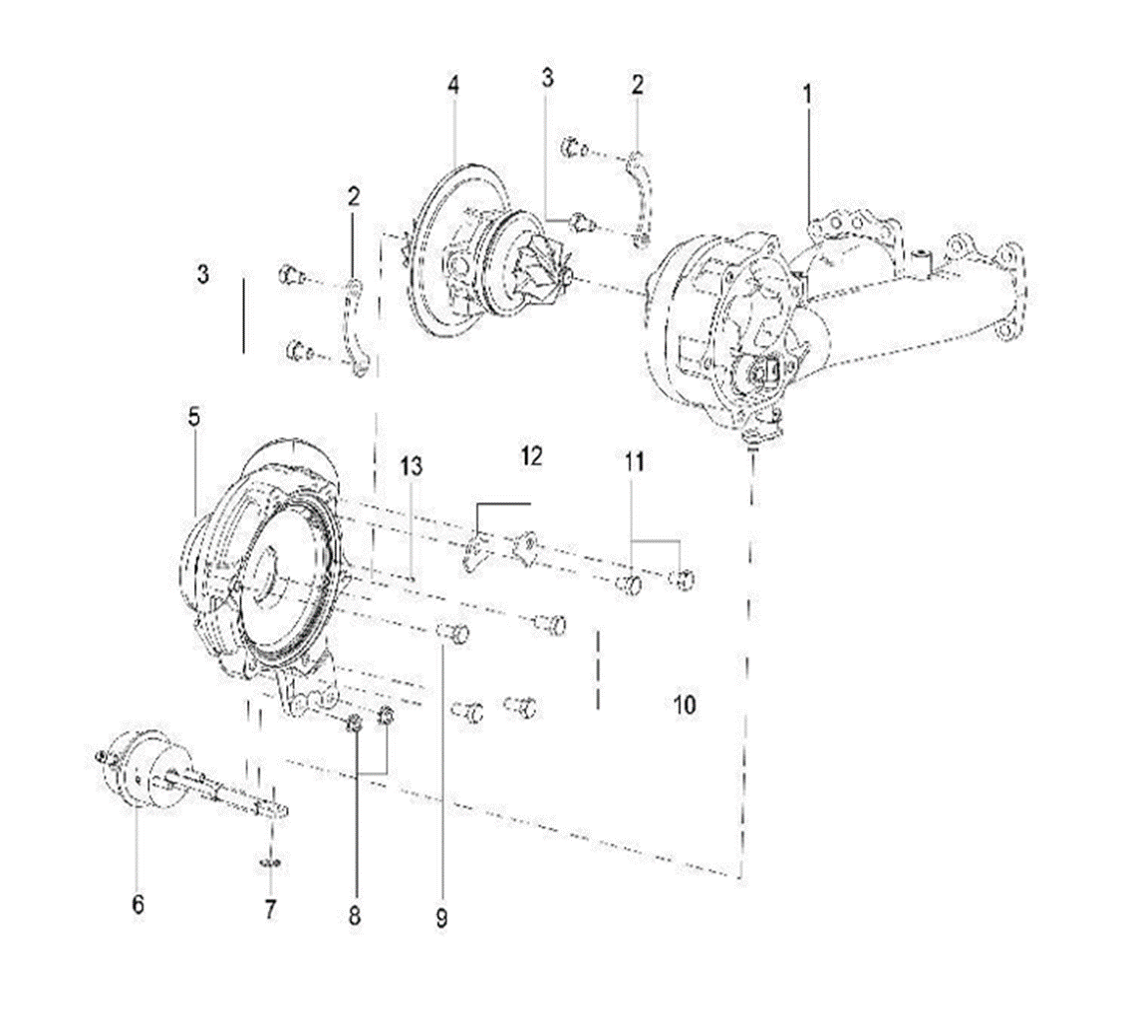

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Turbine housing assembly18005337002 $2,474.55 |
18005337002 | $2,474.55 | |
| 2 | Vortex end pressure plate18033337002 $9.11 |
18033337002 | $9.11 | |
| 3 | Bolt 3/4$3.65 |
$3.65 | ||
| 4 | intermediate18030337001 $1,458.00 |
18030337001 | $1,458.00 | |
| 5 | Turbine compressor casing18029337001 $1,093.50 |
18029337001 | $1,093.50 | |
| 6 | Actuator18031337001 $303.75 |
18031337001 | $303.75 | |
| 7 | Circlip91001000007 $3.04 |
91001000007 | $3.04 | |
| 8 | Hexagon flange nut M590303000015 $4.25 |
90303000015 | $4.25 | |
| 9 | bolt M8×16×5/890101000009 $4.25 |
90101000009 | $4.25 | |
| 10 | bolt M8×18×5/890101000010 $4.86 |
90101000010 | $4.86 | |
| 11 | bolt M8×12×5/890101000008 $4.25 |
90101000008 | $4.25 | |
| 12 | Pressure end pressing plate18033337001 $12.15 |
18033337001 | $12.15 | |
| 13 | Locating pin 2×590901000012 $1.22 |
90901000012 | $1.22 |
Description
Turbo Assembly
