Lower crankcase

$499.61 View Item

Hex bolt with flange M8× 35

$0.36 View Item

Hex bolt with flange M6×45

$0.24 View Item

Hex bolt with flange M8× 60

$0.53 View Item

Hex bolt with flange M8×70

$0.61 View Item

Hex bolt with flange M8×90

$0.81 View Item

Hex bolt with flange M10×105-32

$3.12 View Item

Hex bolt with flange M6×10

$0.12 View Item

Aluminum washer 6×12×1.5

$0.41 View Item

Hex bolt with flange M6× 20

$0.16 View Item

Oil filter cover

$5.99 View Item

O-ring 61.5×2.4

$3.32 View Item

Oil Filter

$18.23 View Item

Hex bolt with flange M10× 1.25×25

$0.69 View Item

Hex bolt with flange M12×1.25×310

$19.93 View Item

Lower engine mount

$97.20 View Item

Cylindrical pin φ6×12

$0.53 View Item

Nut M12× 1.25×16.5

$2.51 View Item

Front engine mount

$127.58 View Item

Flat washer 14

$0.20 View Item

Flat washer 14

$0.20 View Item

Flat washer 14

$0.20 View Item

Flat washer 14

$0.20 View Item

Flat washer 14

$0.20 View Item

Flat washer 14

$0.20 View Item

Product Mapper

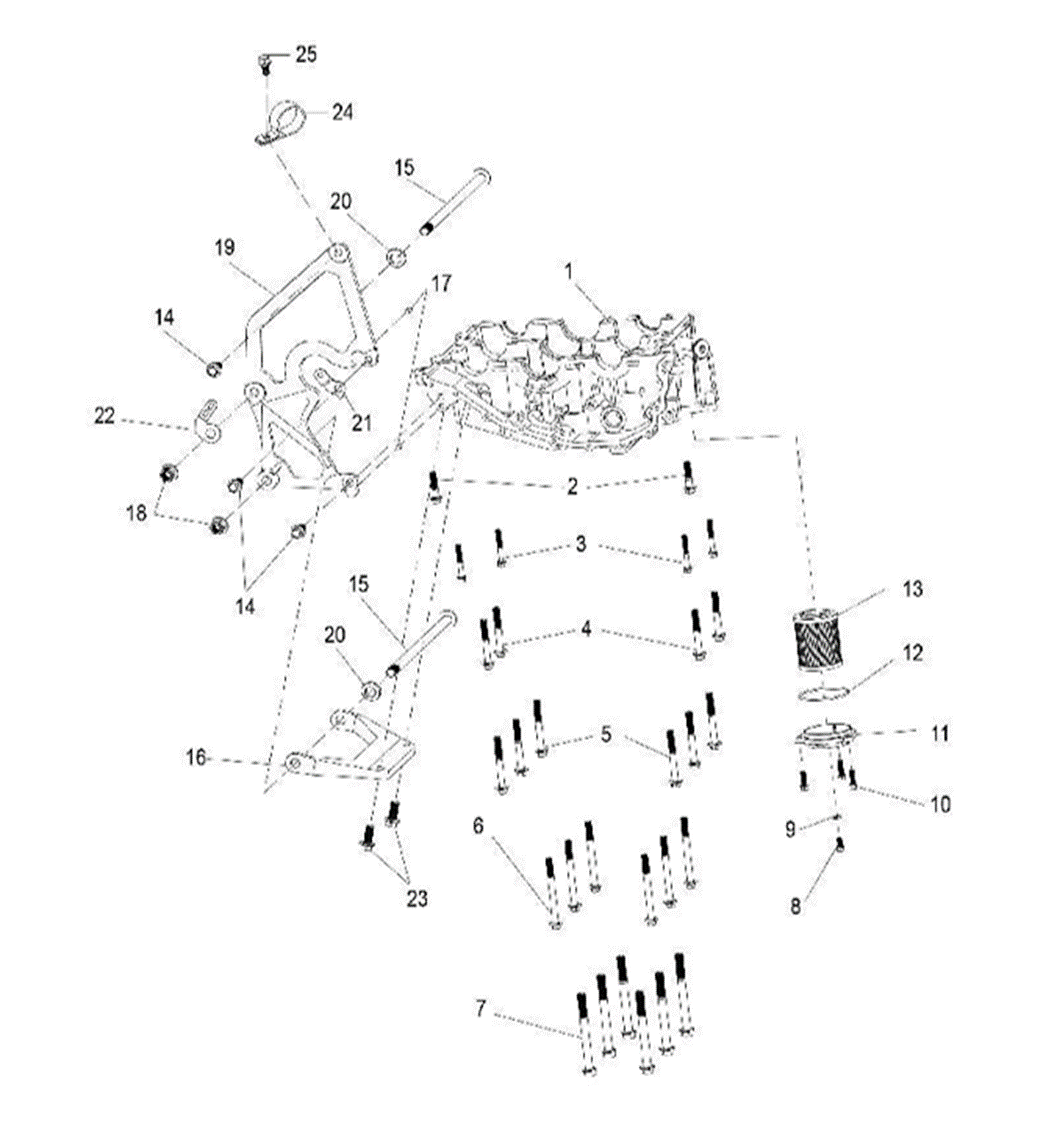

Item Number Description Part Number Price
1
Lower crankcase
E01120000 $499.61 		E01120000 $499.61
2
Hex bolt with flange M8× 35
BGB16674-M8×35 $0.36 		BGB16674-M8×35 $0.36
3
Hex bolt with flange M6×45
BGB5787-M6×45 $0.24 		BGB5787-M6×45 $0.24
4
Hex bolt with flange M8× 60
BGB16674-M8×60 $0.53 		BGB16674-M8×60 $0.53
5
Hex bolt with flange M8×70
BGB16674-M8×70 $0.61 		BGB16674-M8×70 $0.61
6
Hex bolt with flange M8×90
BGB16674-M8×90 $0.81 		BGB16674-M8×90 $0.81
7
Hex bolt with flange M10×105-32
BGB16674-M10×105-32 $3.12 		BGB16674-M10×105-32 $3.12
8
Hex bolt with flange M6×10
BGB5787-M6×10 $0.12 		BGB5787-M6×10 $0.12
9
Aluminum washer 6×12×1.5
PJ00000906010100 $0.41 		PJ00000906010100 $0.41
10
Hex bolt with flange M6× 20
BGB5787-M6×20 $0.16 		BGB5787-M6×20 $0.16
11
Oil filter cover
E01520500 $5.99 		E01520500 $5.99
12
O-ring 61.5×2.4
PJ00000912016400 $3.32 		PJ00000912016400 $3.32
13
Oil Filter
E01522A00 $18.23 		E01522A00 $18.23
14
Hex bolt with flange M10× 1.25×25
BGB16674-M10×1.25×25 $0.69 		BGB16674-M10×1.25×25 $0.69
15
Hex bolt with flange M12×1.25×310
E02720300 $19.93 		E02720300 $19.93
16
Lower engine mount
E00010400 $97.20 		E00010400 $97.20
17
Cylindrical pin φ6×12
PJ00000908010100 $0.53 		PJ00000908010100 $0.53
18
Nut M12× 1.25×16.5
B19030200 $2.51 		B19030200 $2.51
19
Front engine mount
E00010300 $127.58 		E00010300 $127.58
20
Flat washer 14
BGB97.1-14 $0.20 		BGB97.1-14 $0.20
21
Flat washer 14
BGB97.1-14 $0.20 		BGB97.1-14 $0.20
22
Flat washer 14
BGB97.1-14 $0.20 		BGB97.1-14 $0.20
23
Flat washer 14
BGB97.1-14 $0.20 		BGB97.1-14 $0.20
24
Flat washer 14
BGB97.1-14 $0.20 		BGB97.1-14 $0.20
25
Flat washer 14
BGB97.1-14 $0.20 		BGB97.1-14 $0.20
Description
lower crankcase assembly 1 el jefe
