1
2
3
4
5
6
7
8
9
10

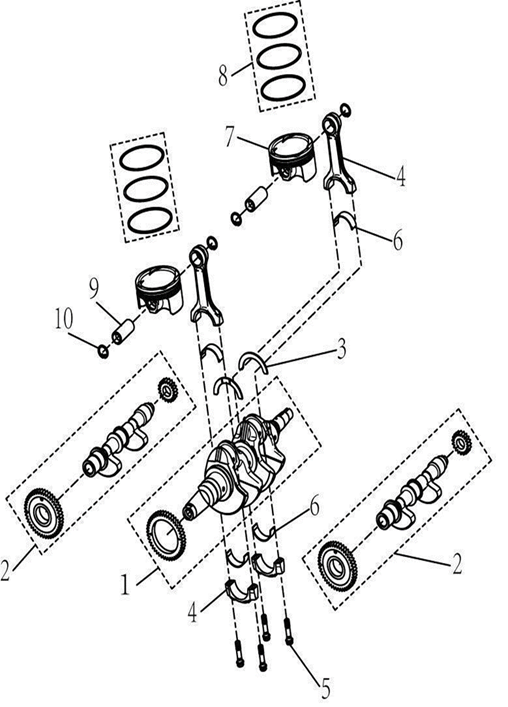

Product Mapper

Item Number Description Part Number Price
1
Crankshaft assembly
E01341A00 $1,468.88
E01341A00 $1,468.88
2
Balance shaft assembly
E01331A00 $194.06
E01331A00 $194.06
3
Limiting plate
E05193000 $8.27
E05193000 $8.27
4
Connection rod assembly
E01342A00 $152.65
E01342A00 $152.65
5
Connection Rod Bolt M10 × 0.75
E01342300 $3.70
E01342300 $3.70
6
Bearing shell ∅48×18×1.5 green (connecting rod)
E09220401 $15.65
E09220401 $15.65
7
Piston
E01310100 $229.30
E01310100 $229.30
8
Piston ring assembly
E01311A01 $69.89
E01311A01 $69.89
9
Piston pin
E01310200 $11.42
E01310200 $11.42
10
Piston pin retaining ring
E01310700 $0.54
E01310700 $0.54
Description
ENGINE - CRANKSHAFT & PISTON
