Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | 2WD/4WD shifting forkB11715700 $50.54 |
B11715700 | $50.54 | |
| 2 | Fork shaft (2WD/4WD)22019337001 $10.67 |
22019337001 | $10.67 | |
| 3 | Differential housing22020337001 $249.32 |
22020337001 | $249.32 | |
| 4 | CVJ gear washer φ47×φ57×1.114407337001 $4.32 |
14407337001 | $4.32 | |
| 5 | Front left CVJ gearE02712304 $52.33 |
E02712304 | $52.33 | |
| 6 | Planetary gear shaft I22021337001 $30.38 |
22021337001 | $30.38 | |
| 7 | Elastic Round Pin 4×4090903000011 $0.81 |
90903000011 | $0.81 | |
| 8 | Planetary gearE02712303 $30.13 |
E02712303 | $30.13 | |
| 9 | Planetary gear housing22022337001 $12.07 |
22022337001 | $12.07 | |
| 10 | Planetary gear shaft Ⅱ22023337001 $7.05 |
22023337001 | $7.05 | |
| 11 | Front diff driven gearE02712300 $672.00 |
E02712300 | $672.00 | |
| 12 | Inner hex cylindrical head screw M8×2090507000007 $0.95 |
90507000007 | $0.95 | |
| 13 | Deep-groove ball bearing 16013BGB276-16013 $44.35 |
BGB276-16013 | $44.35 | |
| 14 | Fork shaft (diffrential)22024337001 $10.67 |
22024337001 | $10.67 | |
| 15 | Diffrential forkB11715800 $54.55 |
B11715800 | $54.55 | |
| 16 | 2WD/4WD integrate sleeve22025337001 $51.60 |
22025337001 | $51.60 | |
| 17 | Circlip for holeGB/T893.1-1986 $5.00 |
GB/T893.1-1986 | $5.00 | |
| 18 | Deep-groove ball bearing 16013BGB276-16013 $44.35 |
BGB276-16013 | $44.35 | |
| 19 | Oil guide plate bearing column22026337001 $12.02 |
22026337001 | $12.02 | |
| 20 | Oil guide plate22027337001 $15.88 |
22027337001 | $15.88 | |
| 21 | Oil guide plate22027337001 $15.88 |
22027337001 | $15.88 | |
| 22 | Oil guide plate22027337001 $15.88 |
22027337001 | $15.88 |
Description

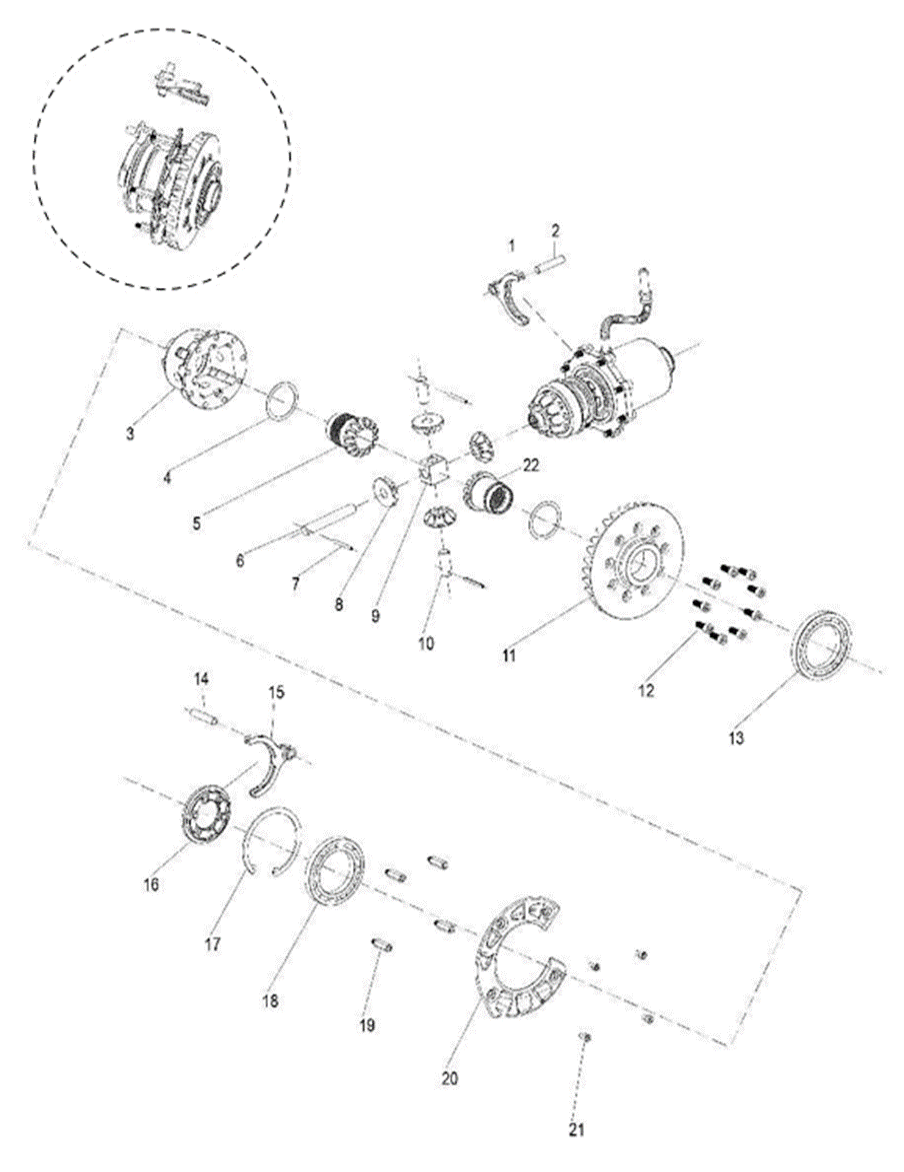

Front Differential Assembly
