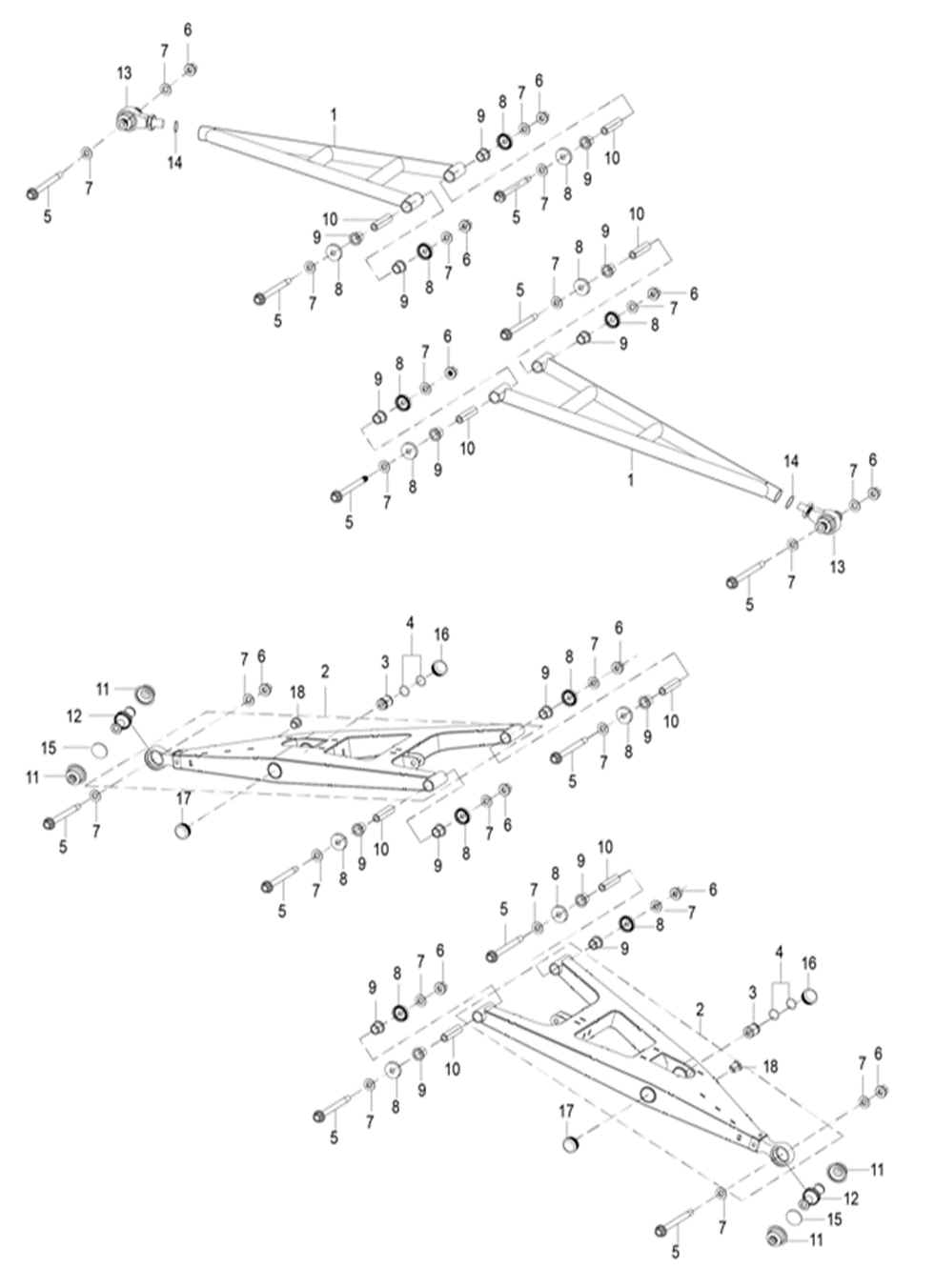

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Front upper A-arm weld asembly (orange)B15230A00 $399.00 |
B15230A00 | $399.00 | |
| 2 | Front Lower A-arm weld asembly (orange)B15235A11 $713.73 |
B15235A11 | $713.73 | |
| 3 | Rear A-arm lower damping bushingB15510400 $6.60 |
B15510400 | $6.60 | |
| 4 | O-ring 20.7×2.6PJ00000912013000 $2.15 |
PJ00000912013000 | $2.15 | |
| 5 | Bolt M12× 1.25×132B19010200 $24.99 |
B19010200 | $24.99 | |
| 6 | Nut M12× 1.25×16.5B19030200 $2.51 |
B19030200 | $2.51 | |
| 7 | Washer 12×27×2B19060100 $4.73 |
B19060100 | $4.73 | |
| 8 | A arm dust capB15211700 $5.10 |
B15211700 | $5.10 | |
| 9 | Flanged bushing φ18×φ22×20B19293B00 $12.10 |
B19293B00 | $12.10 | |
| 10 | Cylindrical bushing φ12×φ18×70B1929A100 $10.00 |
B1929A100 | $10.00 | |
| 11 | Rubber boot BB1525A200 $4.78 |
B1525A200 | $4.78 | |
| 12 | Knuckle ball stud assy BB15251000 $52.25 |
B15251000 | $52.25 | |
| 13 | Knuckle ball stud BB15250000 $96.71 |
B15250000 | $96.71 | |
| 14 | Double-lapped lock washer M22B15250300 $1.58 |
B15250300 | $1.58 | |
| 15 | Helical elastic circlip-EH38B15250200 $1.82 |
B15250200 | $1.82 | |
| 16 | Front A arm shock bolt plastic capB19244004 $0.41 |
B19244004 | $0.41 | |
| 17 | Cicular plastic plug φ38B19244003 $2.50 |
B19244003 | $2.50 | |
| 18 | Jack SupportB15235ABD $3.73 |
B15235ABD | $3.73 |
Description
Front Suspension Arms
