Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Deep-groove ball bearing 6903BGB276-6903 $12.16 |
BGB276-6903 | $12.16 | |
| 2 | Deep-groove ball bearing 6207BGB276-6207 $43.74 |
BGB276-6207 | $43.74 | |
| 3 | Needle bearing NK404712BGB 290-NK404712 $16.37 |
BGB 290-NK404712 | $16.37 | |
| 4 | Deep-groove ball bearing 6205BGB276-6205 $19.10 |
BGB276-6205 | $19.10 | |
| 5 | Guid plate20008337001 $5.35 |
20008337001 | $5.35 | |
| 6 | Deep-groove ball bearing 6205BGB276-6205 $19.10 |
BGB276-6205 | $19.10 | |
| 7 | Deep-groove ball bearing 6010BGB276-6010 $42.43 |
BGB276-6010 | $42.43 | |
| 8 | Input shaft oil seal φ35×φ52×790704000010 $13.02 |
90704000010 | $13.02 | |
| 9 | Output CVJ oil seal φ45×φ72×890704000009 $28.78 |
90704000009 | $28.78 | |
| 10 | Hex flat round head screw M4×1290506000017 $0.32 |
90506000017 | $0.32 | |
| 11 | O-ring 106×2.590701000038 $8.59 |
90701000038 | $8.59 | |
| 12 | X bearing seat gasket20009337001 $5.83 |
20009337001 | $5.83 | |
| 13 | Deep-groove ball bearing 6208BGB276-6208 $49.57 |
BGB276-6208 | $49.57 | |
| 14 | X bearing seatH01121100 $42.38 |
H01121100 | $42.38 | |
| 15 | Hex bolt with flange M6× 20BGB5787-M6×20 $0.65 |
BGB5787-M6×20 | $0.65 | |
| 16 | Circlip for shaft φ38BGB894.1-38 $1.94 |
BGB894.1-38 | $1.94 | |
| 17 | Flat washer φ35.2×φ43×0.790609000015 $5.18 |
90609000015 | $5.18 | |
| 18 | double row angular contact ball bearing 3207-2RS91104000001 $88.94 |
91104000001 | $88.94 | |
| 19 | Needle bearing NK60722591101000003 $145.07 |
91101000003 | $145.07 | |
| 20 | Output shaft oil seal φ35×φ72×1090704000011 $20.84 |
90704000011 | $20.84 | |
| 21 | Circlip for hole d0=72BGB894.1-d0=72 $6.80 |
BGB894.1-d0=72 | $6.80 | |
| 22 | Circlip for hole d0=72BGB894.1-d0=72 $6.80 |
BGB894.1-d0=72 | $6.80 |
Description

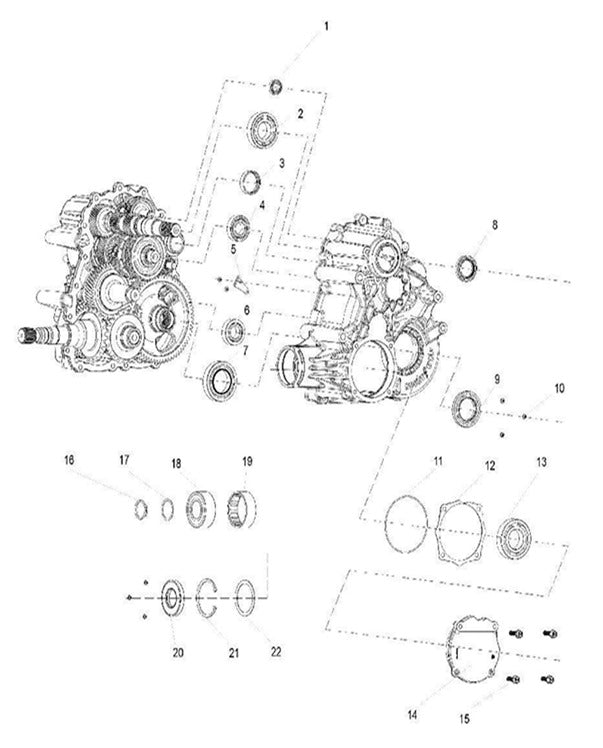

Transmission Rear Differential Case El Jefe
