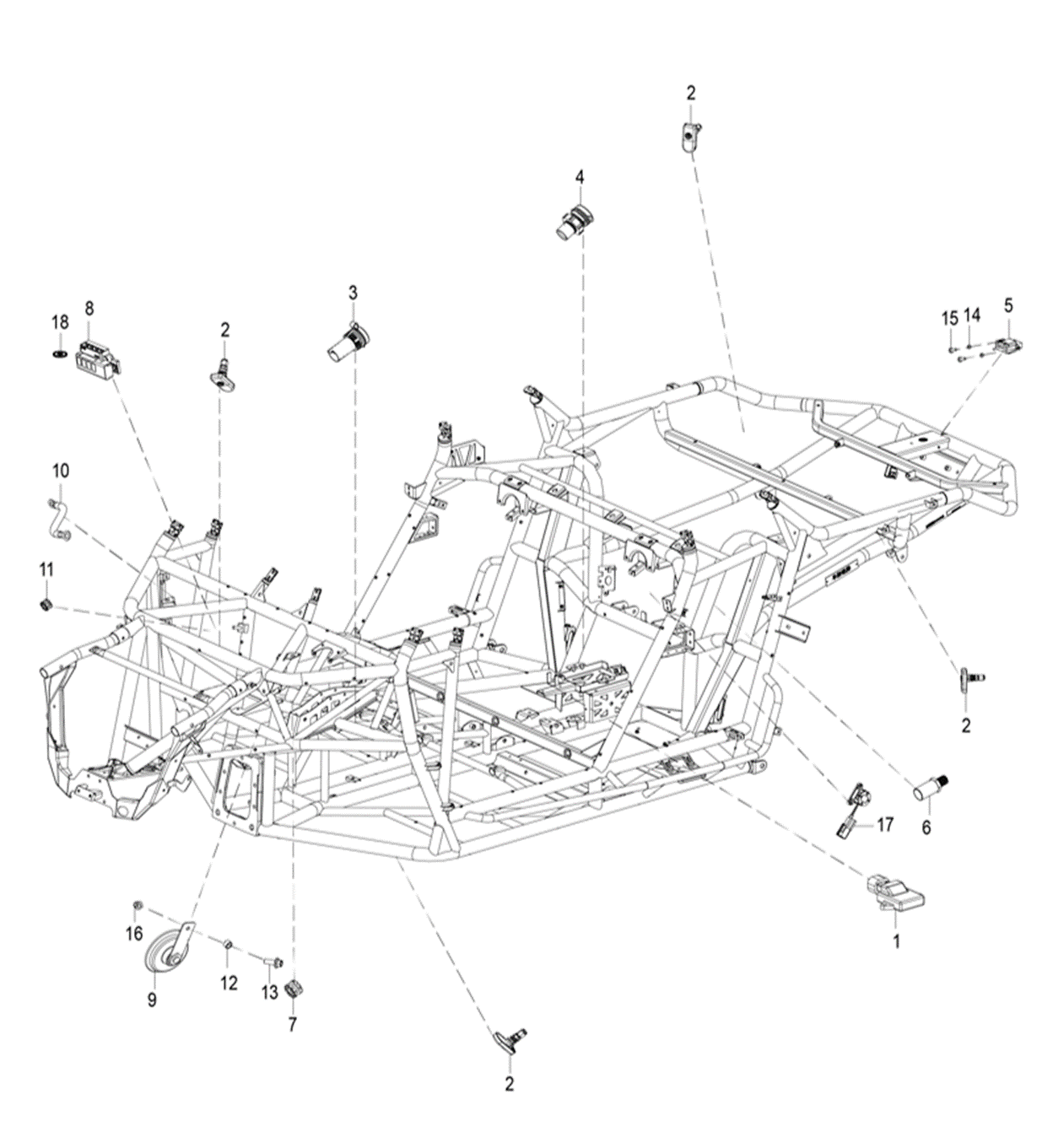

Product Mapper

Item Number Description Part Number Price
1
Gyroscope
B13782000 $180.79
B13782000 $180.79
2
TPM Sensor
B13863000 $86.51
B13863000 $86.51
3
DC socket combination
B13253000 $52.93
B13253000 $52.93
4
USB Power Socket
B13717500 $14.05
B13717500 $14.05
5
Rear Camera
B13610110 $64.80
B13610110 $64.80
6
Belt TEMP Sensor
B13917001 $205.78
B13917001 $205.78
7
Round Hole and Slot Cushioning Pad
PJ00000931250100 $0.20
PJ00000931250100 $0.20
8
Four-way Fuse Box
B12911000 $62.33
B12911000 $62.33
9
Horn
P1150003461A0000 $20.53
P1150003461A0000 $20.53
10
Auxiliary instrument wiring
B13412300 $67.88
B13412300 $67.88
11
Round hole clamp slot damping pad φ9×2.5
PJ00000931250200 $0.24
PJ00000931250200 $0.24
12
Cylindrical bushing φ7×φ20×10
PJ00000929000900 $3.24
PJ00000929000900 $3.24
13
Hex bolt with flange M6×30
BGB16674-M6×30 $0.20
BGB16674-M6×30 $0.20
14
Flat washer 4
BGB97.1-4 $0.08
BGB97.1-4 $0.08
15
Inner hex cylindrical head screw M4×20
BGB70-M4×20 $0.12
BGB70-M4×20 $0.12
16
Lock nut M6
BGB6183.2-M6 $0.20
BGB6183.2-M6 $0.20
17
Gear display sensor
B13655000 $110.97
B13655000 $110.97
18
Interal and external serrated gasket M6x22-0.7
BGB861.2-M6×22-0.7 $0.28
BGB861.2-M6×22-0.7 $0.28
Description
digital bundle el diablo
