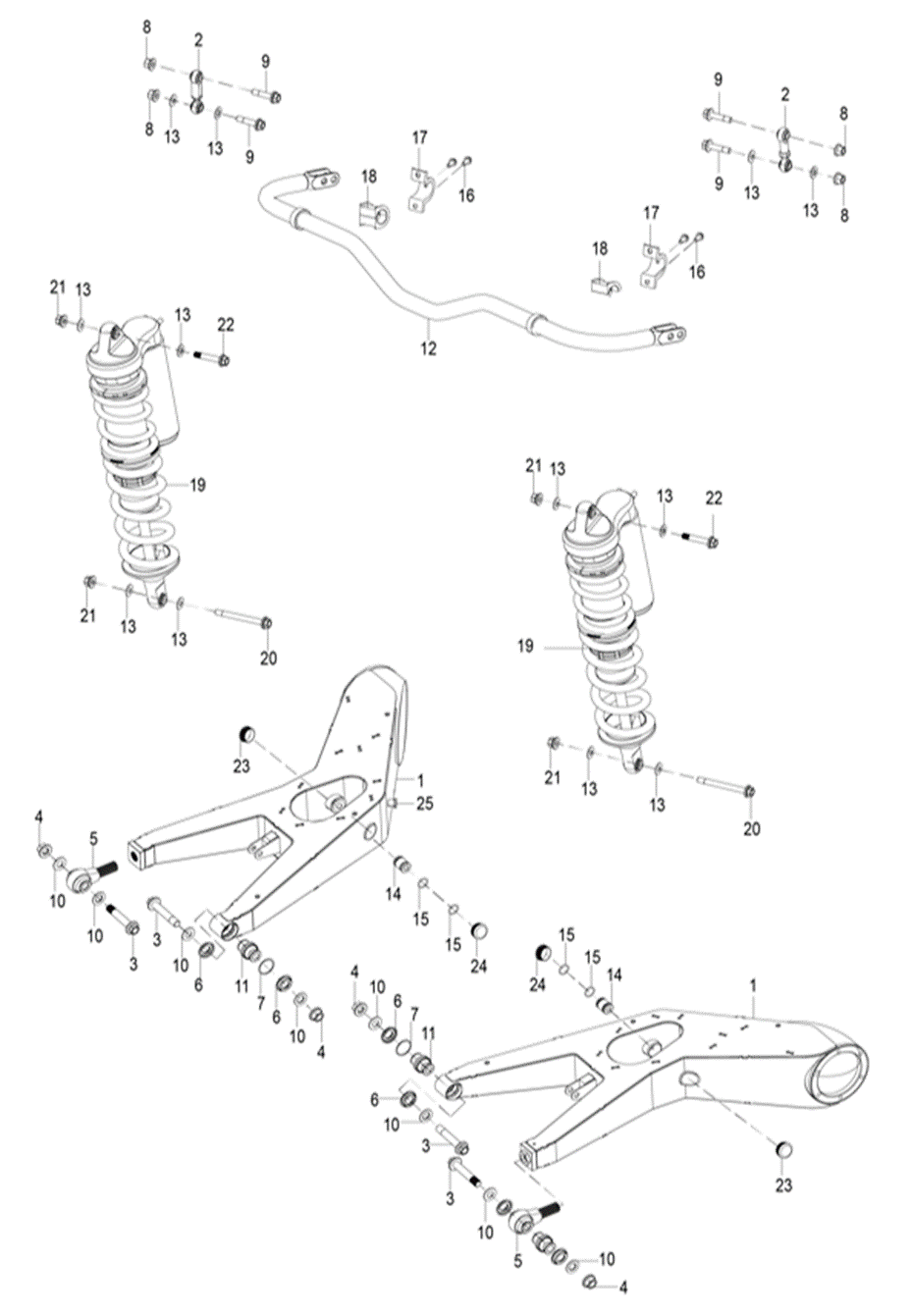

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Rear A-arm welding assy (orange)5580A-B1-11 $1,020.52 |
5580A-B1-11 | $1,020.52 | |
| 2 | Rear swaybar tie rod assembly55750-B1-00 $24.26 |
55750-B1-00 | $24.26 | |
| 3 | Bolt M16× 1.5×90B19010100 $6.60 |
B19010100 | $6.60 | |
| 4 | Nut M16×1.5×16.5B19030100 $2.59 |
B19030100 | $2.59 | |
| 5 | Knuckle ball stud A assemblyB15550000 $76.30 |
B15550000 | $76.30 | |
| 6 | Ball stud boot AB15550100 $2.51 |
B15550100 | $2.51 | |
| 7 | Helical elastic circlip-EH38B15250200 $1.82 |
B15250200 | $1.82 | |
| 8 | Nut M12× 1.25×16.5195447002134 $2.51 |
195447002134 | $2.51 | |
| 9 | Bolt M12× 1.25×52B19010700 $3.36 |
B19010700 | $3.36 | |
| 10 | Washer 16×32×2.5B19060200 $1.54 |
B19060200 | $1.54 | |
| 11 | Knuckle ball stud AB15551000 $36.45 |
B15551000 | $36.45 | |
| 12 | Rear swaybar weld assemblyB15574A00 $170.10 |
B15574A00 | $170.10 | |
| 13 | Washer 12×27×2B19060100 $1.42 |
B19060100 | $1.42 | |
| 14 | shock slidding bushingB15510400 $6.60 |
B15510400 | $6.60 | |
| 15 | O-ring 20.7×2.6PJ00000912013000 $2.15 |
PJ00000912013000 | $2.15 | |
| 16 | Bolt、spring washer & flat washer assy M10×26PJ00000903480400 $0.93 |
PJ00000903480400 | $0.93 | |
| 17 | Press plate of rear stabilizer barB15574701 $32.76 |
B15574701 | $32.76 | |
| 18 | Rear swaybar rubber sleeveB19314000 $7.37 |
B19314000 | $7.37 | |
| 19 | Rear shock absorber assembly (black)B25510000 $3,417.47 |
B25510000 | $3,417.47 | |
| 20 | Bolt M12× 1.25×122B19010600 $5.31 |
B19010600 | $5.31 | |
| 21 | Bolt M12× 1.25×122B19010600 $5.31 |
B19010600 | $5.31 | |
| 22 | Bolt M12× 1.25×122B19010600 $5.31 |
B19010600 | $5.31 | |
| 23 | Bolt M12× 1.25×122B19010600 $5.31 |
B19010600 | $5.31 | |
| 24 | Bolt M12× 1.25×122B19010600 $5.31 |
B19010600 | $5.31 | |
| 25 | Bolt M12× 1.25×122B19010600 $5.31 |
B19010600 | $5.31 |
Description
rear suspension eldiablo
