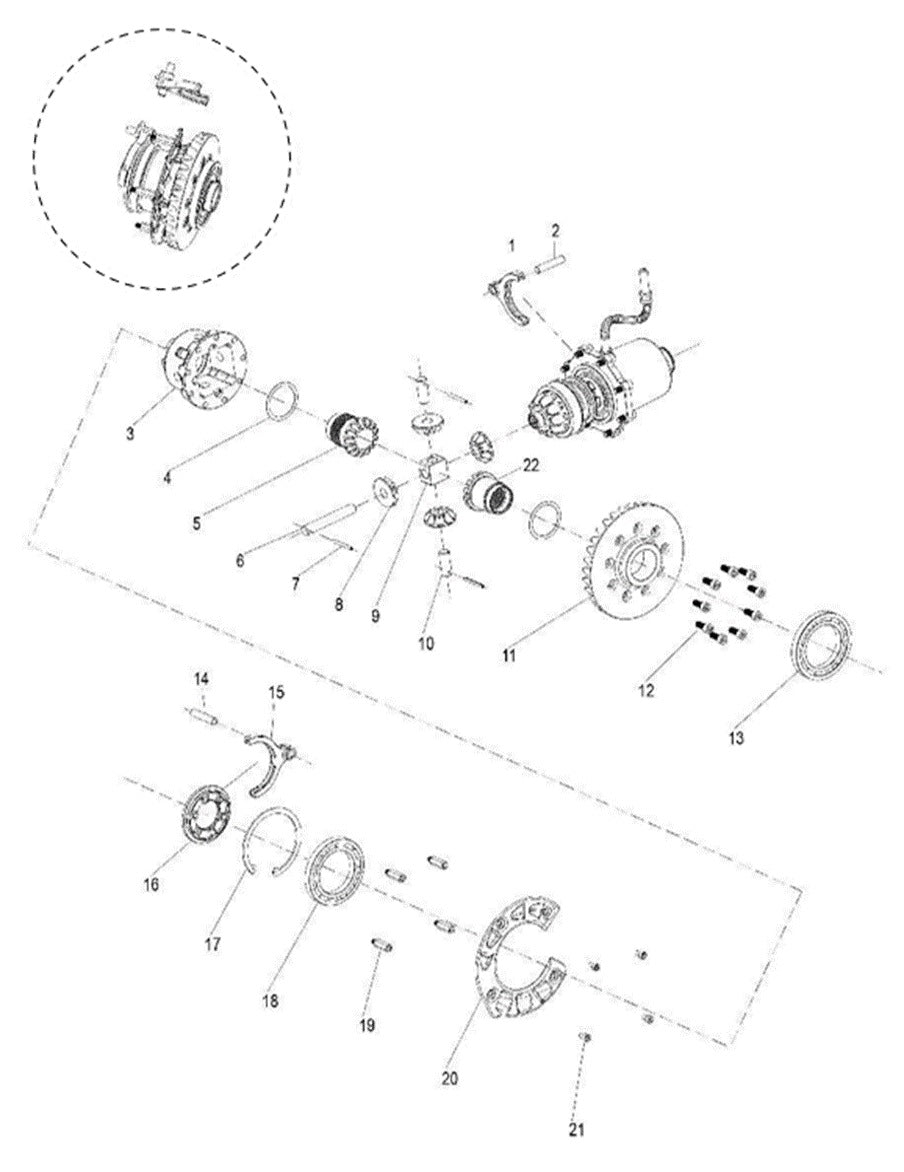

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | 2WD/4WD shifting forkB11715700 $60.65 |
B11715700 | $60.65 | |
| 2 | Fork shaft (2WD/4WD)22019337001 $12.80 |
22019337001 | $12.80 | |
| 3 | Differential housing22020337001 $299.18 |
22020337001 | $299.18 | |
| 4 | CVJ gear washer φ47×φ57×0.914407337002 $5.18 |
14407337002 | $5.18 | |
| 5 | Front left CVJ gearE02712304 $62.80 |
E02712304 | $62.80 | |
| 6 | Planetary gear shaft I22021337001 $36.46 |
22021337001 | $36.46 | |
| 7 | Elastic Round Pin 4×4090903000011 $0.97 |
90903000011 | $0.97 | |
| 8 | Planetary gearE02712303 $36.16 |
E02712303 | $36.16 | |
| 9 | Planetary gear housing22022337001 $14.48 |
22022337001 | $14.48 | |
| 10 | Planetary gear shaft Ⅱ22023337001 $8.46 |
22023337001 | $8.46 | |
| 11 | Front diff driven gearE02712300 $567.31 |
E02712300 | $567.31 | |
| 12 | Inner hex cylindrical head screw M8×2090507000007 $1.14 |
90507000007 | $1.14 | |
| 13 | Deep-groove ball bearing 16013BGB276-16013 $53.22 |
BGB276-16013 | $53.22 | |
| 14 | Fork shaft (diffrential)22024337001 $12.80 |
22024337001 | $12.80 | |
| 15 | Diffrential forkB11715800 $65.46 |
B11715800 | $65.46 | |
| 16 | 2WD/4WD integrate sleeve22025337001 $61.92 |
22025337001 | $61.92 | |
| 17 | Circlip for holeGB/T893.1-1986 $6.00 |
GB/T893.1-1986 | $6.00 | |
| 18 | Deep-groove ball bearing 16013BGB276-16013 $53.22 |
BGB276-16013 | $53.22 | |
| 19 | Oil guide plate bearing column22026337001 $14.42 |
22026337001 | $14.42 | |
| 20 | Oil guide plate22027337001 $19.06 |
22027337001 | $19.06 | |
| 21 | Inner hex cylindrical head screw M6×1890507000019 $0.49 |
90507000019 | $0.49 | |
| 22 | Inner hex cylindrical head screw M6×1890507000019 $0.49 |
90507000019 | $0.49 |
Description
transmission front differential assembly el jefe
