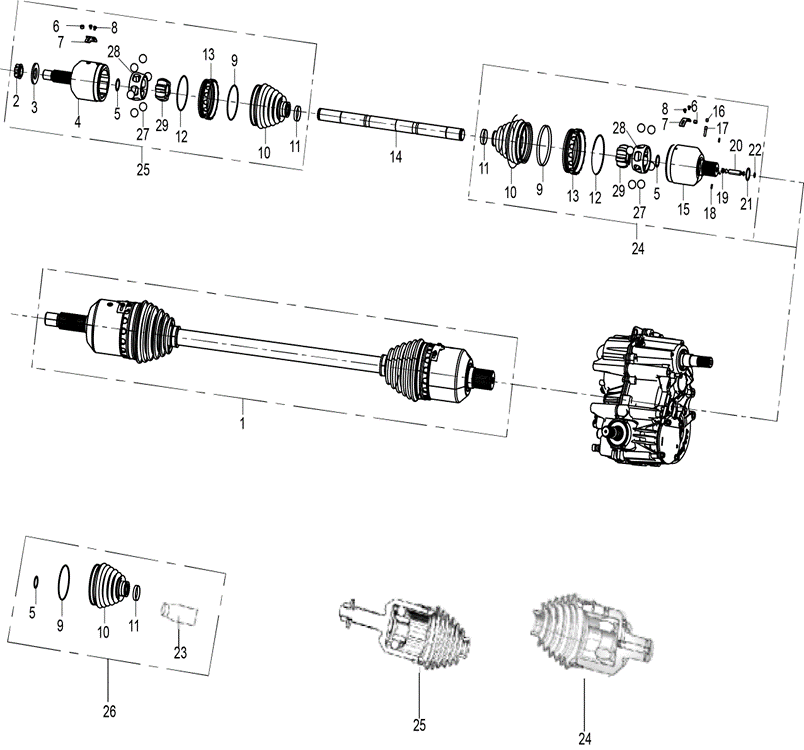

Item Number | Description | Part Number | Price | |
---|---|---|---|---|
1 | Rear CV shaft assemblyB12630000 $551.21 |
B12630000 | $551.21 | |
2 | CV shaft nut M22×1.5B12611100 $17.42 |
B12611100 | $17.42 | |
3 | Arc gasketB12611300 $11.21 |
B12611300 | $11.21 | |
4 | Inner ball cageB126300AA $87.48 |
B126300AA | $87.48 | |
5 | Spiral retaineB1263000Z $6.48 |
B1263000Z | $6.48 | |
6 | Plug ⅡB1263000X $0.41 |
B1263000X | $0.41 | |
7 | Locking plateB1263000G $9.72 |
B1263000G | $9.72 | |
8 | Screw M4×0.7B1263000F $0.68 |
B1263000F | $0.68 | |
9 | Retainer ball cage sheath clamp BB12611500 $26.49 |
B12611500 | $26.49 | |
10 | Retainer ball cage sheath FB12611600 $7.56 |
B12611600 | $7.56 | |
11 | Retainer ball cage sheath clamp AB12611400 $7.56 |
B12611400 | $7.56 | |
12 | O-ring 82×1.8B1263000M $6.08 |
B1263000M | $6.08 | |
13 | flangeB1263000N $34.99 |
B1263000N | $34.99 | |
14 | Intermediate shaftB126300AE $68.04 |
B126300AE | $68.04 | |
15 | Outer ball cageB1261000C $82.13 |
B1261000C | $82.13 | |
16 | Plug ⅡB1263000X $0.41 |
B1263000X | $0.41 | |
17 | Sliding pin ⅡB1263000W $6.08 |
B1263000W | $6.08 | |
18 | Sliding pin ⅠB1263000T $6.08 |
B1263000T | $6.08 | |
19 | Compression springB1263000S $9.72 |
B1263000S | $9.72 | |
20 | Sliding shaftB1263000R $7.90 |
B1263000R | $7.90 | |
21 | Retaining ring φ26B1263000Q $1.08 |
B1263000Q | $1.08 | |
22 | Retaining ring φ26B1263000Q $1.08 |
B1263000Q | $1.08 | |
23 | Retaining ring φ26B1263000Q $1.08 |
B1263000Q | $1.08 | |
24 | Retaining ring φ26B1263000Q $1.08 |
B1263000Q | $1.08 | |
25 | Retaining ring φ26B1263000Q $1.08 |
B1263000Q | $1.08 | |
26 | Retaining ring φ26B1263000Q $1.08 |
B1263000Q | $1.08 | |
27 | Retaining ring φ26B1263000Q $1.08 |
B1263000Q | $1.08 | |
28 | Retaining ring φ26B1263000Q $1.08 |
B1263000Q | $1.08 | |
29 | Retaining ring φ26B1263000Q $1.08 |
B1263000Q | $1.08 |
