Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Parking pawl20013337001 $8.06 |
20013337001 | $8.06 | |
| 2 | Parking return spring20014337001 $3.38 |
20014337001 | $3.38 | |
| 3 | Parking shaft sleeve20015337001 $10.08 |
20015337001 | $10.08 | |
| 4 | Parking arm shaft20016337001 $9.56 |
20016337001 | $9.56 | |
| 5 | Gear shift wheelE02320200 $10.65 |
E02320200 | $10.65 | |
| 6 | Gear shifting driven gearE02321200 $16.61 |
E02321200 | $16.61 | |
| 7 | Parking camE02320300 $21.38 |
E02320300 | $21.38 | |
| 8 | Gear shift drum spring20017337001 $4.19 |
20017337001 | $4.19 | |
| 9 | Shifting drumE02320100 $610.58 |
E02320100 | $610.58 | |
| 10 | O-ring 13×1.5B1641000Z $1.62 |
B1641000Z | $1.62 | |
| 11 | Gear positioning detent assy20018337001 $16.61 |
20018337001 | $16.61 | |
| 12 | MSRP: |
MSRP: |
Liquid error (snippets/part-product-form line 13): product form must be given a product
|
|
| 13 | Gear shift arm shaft20019337001 $37.75 |
20019337001 | $37.75 | |
| 14 | Shifting main gearE02332100 $31.10 |
E02332100 | $31.10 | |
| 15 | Flat washer φ10×φ16×290609000019 $1.22 |
90609000019 | $1.22 | |
| 16 | C type elastic circlip d0=24BGB894.1-1986 $0.61 |
BGB894.1-1986 | $0.61 | |
| 17 | Fork Ⅱ assyE02310200 $89.51 |
E02310200 | $89.51 | |
| 18 | Fork bush20020337001 $8.30 |
20020337001 | $8.30 | |
| 19 | R gear spring20021337001 $3.11 |
20021337001 | $3.11 | |
| 20 | Fork bush20020337001 $8.30 |
20020337001 | $8.30 | |
| 21 | Fork bush20020337001 $8.30 |
20020337001 | $8.30 | |
| 22 | Fork bush20020337001 $8.30 |
20020337001 | $8.30 | |
| 23 | Fork bush20020337001 $8.30 |
20020337001 | $8.30 |
Description

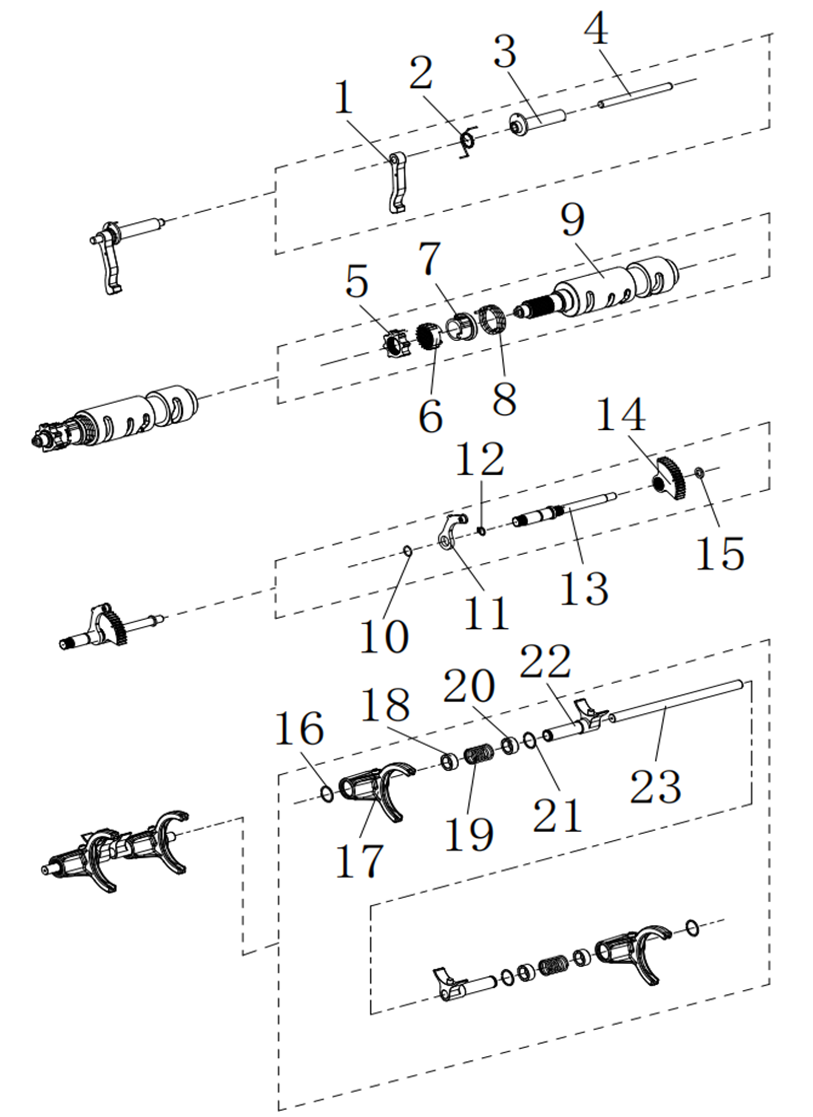

PARK, SHIFT & GEAR DRUM
