Turbocharger

$3,028.37 View Item

Copper gasket 14×21×2

$3.89 View Item

Oil hole bolt M14×1.5×28.5

$8.75 View Item

Turbo water outlet pipe (iron)

$25.22 View Item

Copper washer 12×20×2

$3.08 View Item

Banjo bolt 7/16-24×25

$7.92 View Item

Turbo oil inlet pipe (iron)

$47.09 View Item
Liquid error (snippets/part-product-form line 13): product form must be given a product

View Item

Engine hoisting lug

$3.11 View Item

Hex bolt with flange M8× 16

$0.43 View Item

Cover nut M8×32

$5.18 View Item

DIN25201 Lock washer

$7.30 View Item

Exhaust gasket

$7.73 View Item

Stud M8×45 (stainless steel)

$8.75 View Item

Turbo water inlet pipe (iron)

$30.28 View Item

Compress clamp Gφ21

$1.36 View Item

Pressure resistant rubber hose φ14×210

$8.75 View Item

Screw lock clamp A（φ12～φ20）

$2.14 View Item

Alu. foil insulated bellow φ27×390㎜

$12.88 View Item

Turbo oil-return bracket gasket

$4.52 View Item

Turbo oil-return bracket gasket

$4.52 View Item

Turbo oil-return bracket gasket

$4.52 View Item

Turbo oil-return bracket gasket

$4.52 View Item

Turbo oil-return bracket gasket

$4.52 View Item

Turbo oil-return bracket gasket

$4.52 View Item

Product Mapper

Item Number Description Part Number Price
1
Turbocharger
E01740000 $3,028.37 		E01740000 $3,028.37
2
Copper gasket 14×21×2
PJ00000906003100 $3.89 		PJ00000906003100 $3.89
3
Oil hole bolt M14×1.5×28.5
P004000153030000 $8.75 		P004000153030000 $8.75
4
Turbo water outlet pipe (iron)
E01746000 $25.22 		E01746000 $25.22
5
Copper washer 12×20×2
PJ00000906020600 $3.08 		PJ00000906020600 $3.08
6
Banjo bolt 7/16-24×25
E01530600 $7.92 		E01530600 $7.92
7
Turbo oil inlet pipe (iron)
E01743000 $47.09 		E01743000 $47.09
8
MSRP: 		MSRP:
Liquid error (snippets/part-product-form line 13): product form must be given a product
9
Engine hoisting lug
E00060100 $3.11 		E00060100 $3.11
10
Hex bolt with flange M8× 16
BGB16674-M8×16 $0.43 		BGB16674-M8×16 $0.43
11
Cover nut M8×32
PJ00000903460200 $5.18 		PJ00000903460200 $5.18
12
DIN25201 Lock washer
BDIN25201-8 $7.30 		BDIN25201-8 $7.30
13
Exhaust gasket
E01800100 $7.73 		E01800100 $7.73
14
Stud M8×45 (stainless steel)
BGB901-M8×45-B $8.75 		BGB901-M8×45-B $8.75
15
Turbo water inlet pipe (iron)
E01745000 $30.28 		E01745000 $30.28
16
Compress clamp Gφ21
PJ00000907200600 $1.36 		PJ00000907200600 $1.36
17
Pressure resistant rubber hose φ14×210
E01745100 $8.75 		E01745100 $8.75
18
Screw lock clamp A（φ12～φ20）
PJ00000907300000 $2.14 		PJ00000907300000 $2.14
19
Alu. foil insulated bellow φ27×390㎜
E01745200 $12.88 		E01745200 $12.88
20
Turbo oil-return bracket gasket
E01742400 $4.52 		E01742400 $4.52
21
Turbo oil-return bracket gasket
E01742400 $4.52 		E01742400 $4.52
22
Turbo oil-return bracket gasket
E01742400 $4.52 		E01742400 $4.52
23
Turbo oil-return bracket gasket
E01742400 $4.52 		E01742400 $4.52
24
Turbo oil-return bracket gasket
E01742400 $4.52 		E01742400 $4.52
25
Turbo oil-return bracket gasket
E01742400 $4.52 		E01742400 $4.52
Description

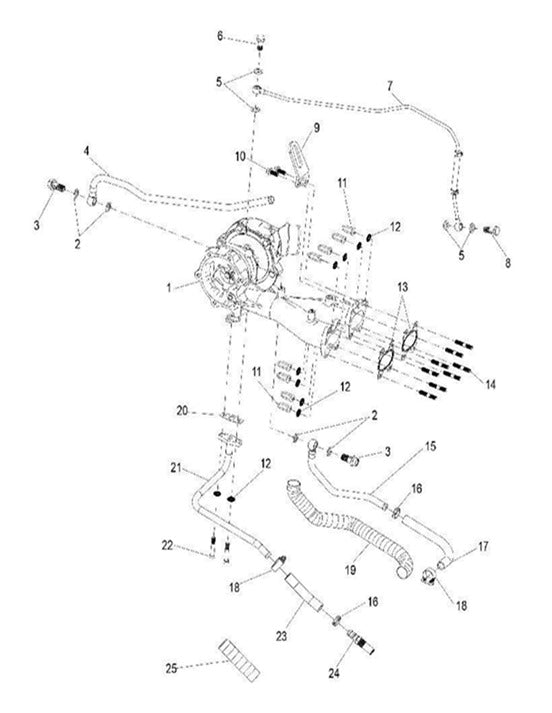

Engine Exhaust Assembly El Jefe
