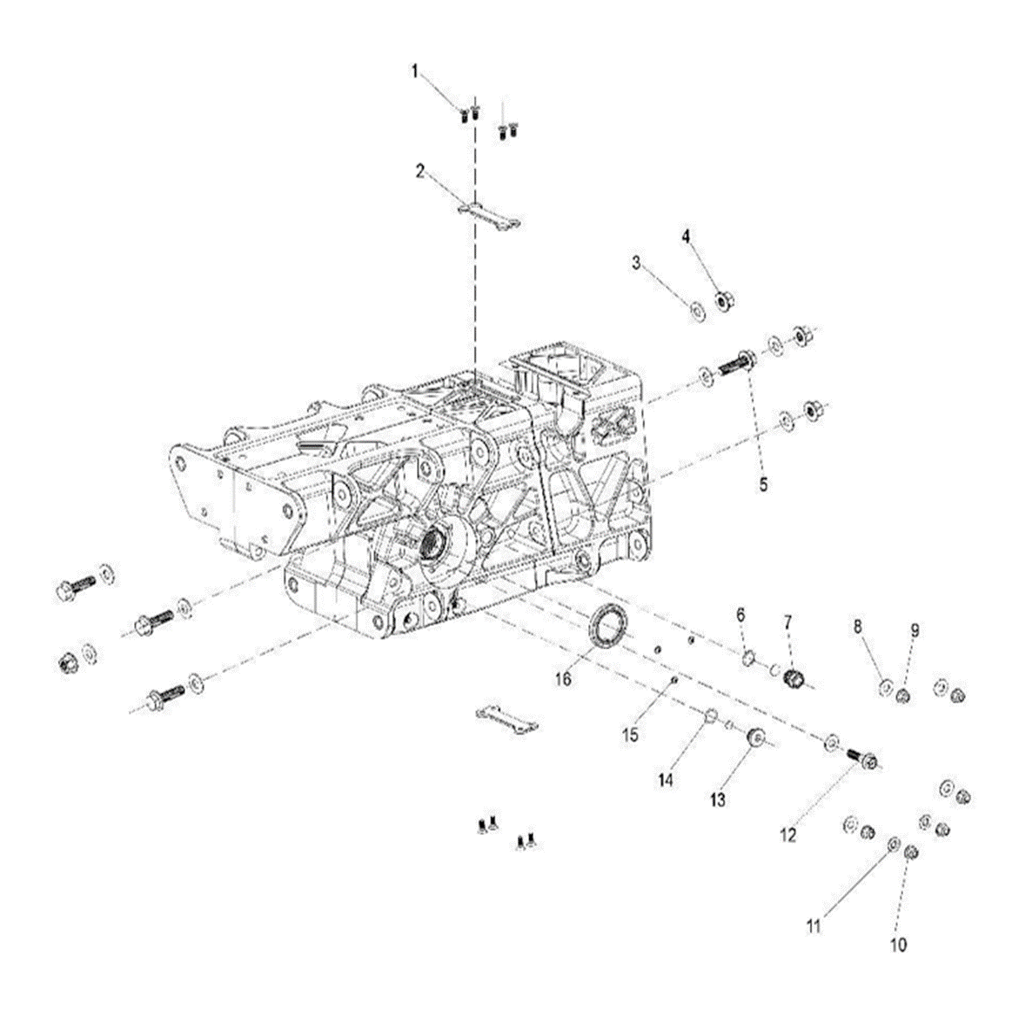

Product Mapper

Item Number Description Part Number Price
1
Hex countersunk screw M6×16
PJ00000902880000 $0.28
PJ00000902880000 $0.28
2
Connection plate
22001337001 $16.74
22001337001 $16.74
3
Flat washer 12 φ13.5×φ24×2.5
90609000013 $0.41
90609000013 $0.41
4
Hex lock nut with flange M12
90301000009 $4.46
90301000009 $4.46
5
Hex bolt with flange M12×45
90102000170 $2.03
90102000170 $2.03
6
O-ring 16.4×2.2
BGB3452.1-16.4×2.2 $2.43
BGB3452.1-16.4×2.2 $2.43
7
Oil immersion lens M18×1.5
22002337001 $14.58
22002337001 $14.58
8
Flat washer 10
BGB97.1-10 $0.12
BGB97.1-10 $0.12
9
Hex lock nut with flange M10
90301000011 $3.78
90301000011 $3.78
10
Hex lock nut with flange M8
90301000010 $2.70
90301000010 $2.70
11
Flat washer 8
BGB97.1-8 $0.12
BGB97.1-8 $0.12
12
Hex bolt with flange M10×40
BGB16674-M10×40 $0.81
BGB16674-M10×40 $0.81
13
Drain plug M18×1.5
91201000003 $10.26
91201000003 $10.26
14
O-ring 16.4×2.2
BGB3452.1-16.4×2.2 $2.43
BGB3452.1-16.4×2.2 $2.43
15
Hex flat round head screw M4×12
90506000017 $0.27
90506000017 $0.27
16
Front diff U/Joint oil seal φ42×φ60×7
90704000007 $23.94
90704000007 $23.94
Description
transmission front differential case
