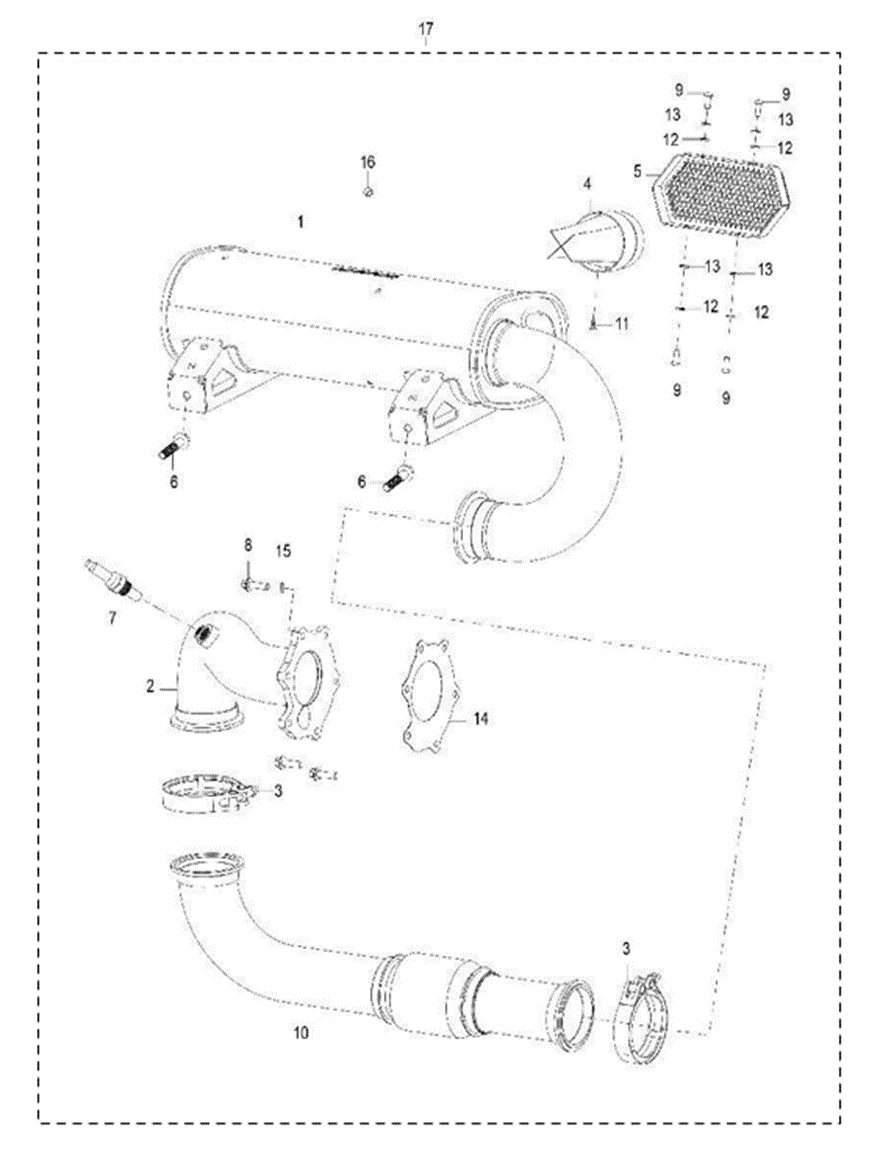

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Muffler weld assemblyB11810A00 $841.80 |
B11810A00 | $841.80 | |
| 2 | Exhaust tube weld assembly IB11821A01 $350.16 |
B11821A01 | $350.16 | |
| 3 | Exhaust tube clamp assembly（CSC275）B11804000 $18.23 |
B11804000 | $18.23 | |
| 4 | Spark arrestor weld assemblyB11830A00 $37.62 |
B11830A00 | $37.62 | |
| 5 | Muffler cover assemblyB11800400 $36.17 |
B11800400 | $36.17 | |
| 6 | Bolt、spring washer & flat washer assy M10×26PJ00000903480400 $2.30 |
PJ00000903480400 | $2.30 | |
| 7 | Wideband O2 sensorB13916011 $110.00 |
B13916011 | $110.00 | |
| 8 | Hex bolt M8×25(Stainless steel)BGB5783-M8×25-B $0.73 |
BGB5783-M8×25-B | $0.73 | |
| 9 | Inner hex cylinder head screw M6×16BGB70.2-M6×16-B $0.53 |
BGB70.2-M6×16-B | $0.53 | |
| 10 | Exhaust tube weld assembly IIB11825A00 $194.40 |
B11825A00 | $194.40 | |
| 11 | Hexagon socket flat round head tapping screw M4×12PJ00000902320100 $0.12 |
PJ00000902320100 | $0.12 | |
| 12 | Spring washer φ6-Stainless SteelBGB93-6-B $0.12 |
BGB93-6-B | $0.12 | |
| 13 | Flat washer φ6-Stainless SteelBGB97.1-85-6-B $0.12 |
BGB97.1-85-6-B | $0.12 | |
| 14 | Turbo housing gasketE01742100 $16.77 |
E01742100 | $16.77 | |
| 15 | DIN25201 Lock washerBDIN25201-8 $6.08 |
BDIN25201-8 | $6.08 | |
| 16 | Catalyst 114.3×100（7/0/1）B11840000 $761.44 |
B11840000 | $761.44 | |
| 17 | Muffler assemblyB118X0001 $2,421.90 |
B118X0001 | $2,421.90 |
Description
MUFFLER, EXHAUST
