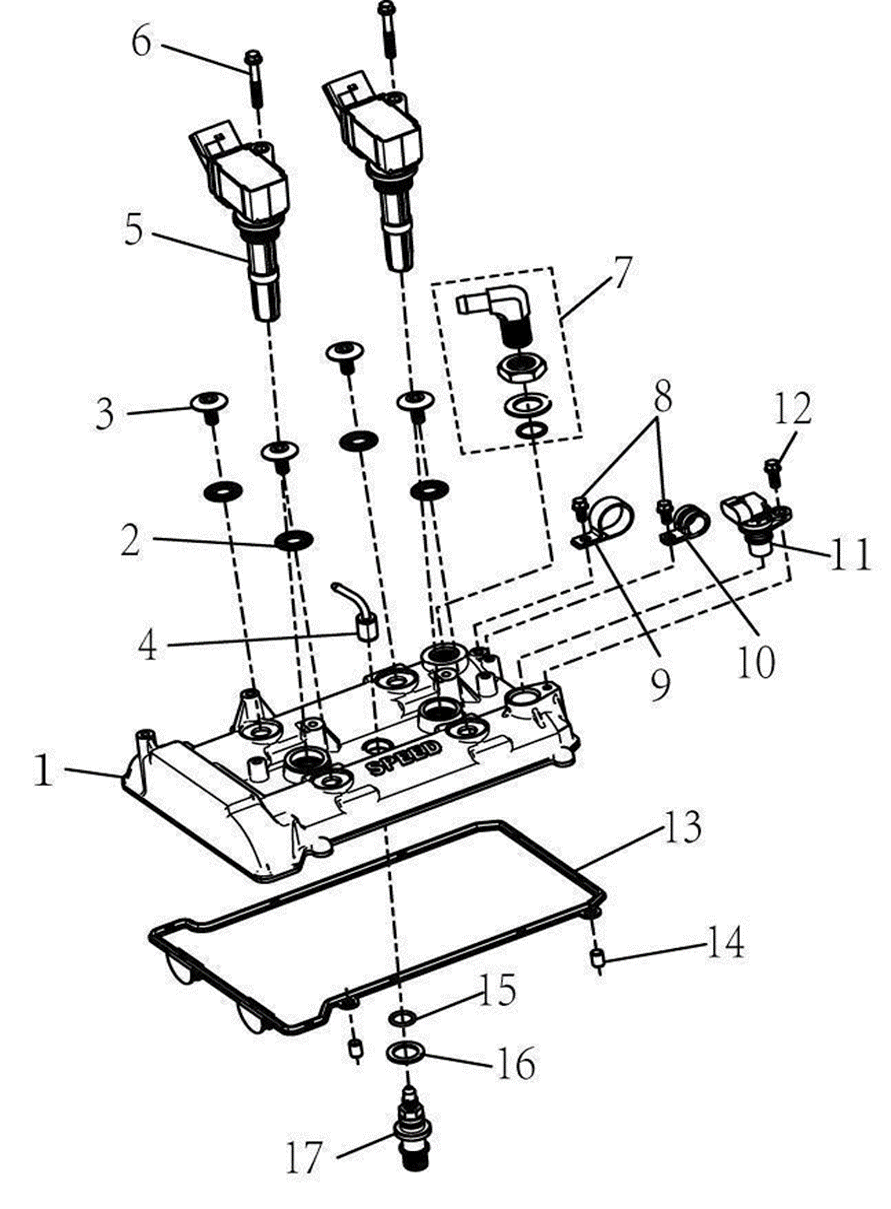

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | CYLINDER HEAD, COVERE01231100 $86.89 |
E01231100 | $86.89 | |
| 2 | CYLINDER HEAD, COVER, BOLT GASKETE01231500 $5.45 |
E01231500 | $5.45 | |
| 3 | BOLT, SPECIAL, CYLINDER HEAD, M8x1.25MM, Lx17.50MME01232600 $2.44 |
E01232600 | $2.44 | |
| 4 | VENT ASSEMBLYE01120800 $8.11 |
E01120800 | $8.11 | |
| 5 | IGNITION COIL 28454712E03451002 $90.00 |
E03451002 | $90.00 | |
| 6 | BOLT, HEX, FLANGED, M6x??, Lx45.00MMBGB5787-M6×45 $0.97 |
BGB5787-M6×45 | $0.97 | |
| 7 | Air Oil Seperator connector AB11742000 $21.14 |
B11742000 | $21.14 | |
| 8 | Hex bolt with flange M6× 16BGB5787-M6×16 $0.65 |
BGB5787-M6×16 | $0.65 | |
| 9 | Φ14 304 stainless steel clamp with coatingPJ00000907400100 $1.85 |
PJ00000907400100 | $1.85 | |
| 10 | Φ8 304 stainless steel clamp with coatingPJ00000907400000 $1.36 |
PJ00000907400000 | $1.36 | |
| 11 | Camshaft position sensorE01421501 $126.36 |
E01421501 | $126.36 | |
| 12 | Hex bolt with flange M6× 16BGB5787-M6×16 $0.65 |
BGB5787-M6×16 | $0.65 | |
| 13 | Cylinder head gasketE01231200 $89.92 |
E01231200 | $89.92 | |
| 14 | Positioning pin φ8×φ6.5×12PJ00000908020100 $0.10 |
PJ00000908020100 | $0.10 | |
| 15 | O-ring 12.5 × 2.4PJ00000912011200 $1.31 |
PJ00000912011200 | $1.31 | |
| 16 | Flat rubber washer 17.5×25.4×2E09311001 $20.90 |
E09311001 | $20.90 | |
| 17 | Breather connectorE01120900 $21.88 |
E01120900 | $21.88 |
