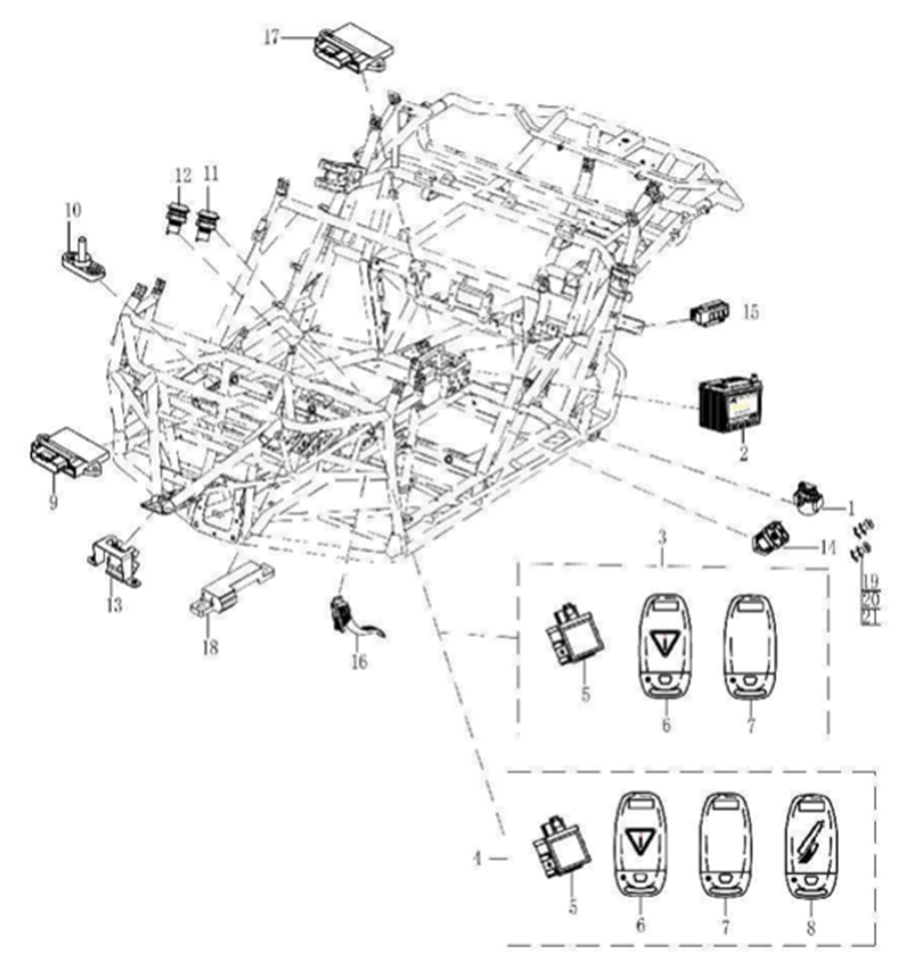

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Stator RelayB13770500 $21.97 |
B13770500 | $21.97 | |
| 2 | Battery ComponentsB13220000 $331.26 |
B13220000 | $331.26 | |
| 3 | PKE Controller kit（pke and two keys matched to a set）B13861100 $303.80 |
B13861100 | $303.80 | |
| 4 | PKE Controller kit（pke and two keys matched to a set）B13861100 $303.80 |
B13861100 | $303.80 | |
| 5 | PKE ControllerB13861001 $136.22 |
B13861001 | $136.22 | |
| 6 | valet key（with triangle logo）B13865011 $86.22 |
B13865011 | $86.22 | |
| 7 | Common key（no logo）B13865010 $83.78 |
B13865010 | $83.78 | |
| 8 | valet key（with triangle logo）B13865011 $86.22 |
B13865011 | $86.22 | |
| 9 | BCM ControllerB13783000 $183.07 |
B13783000 | $183.07 | |
| 10 | Positive TerminalB13251400 $16.14 |
B13251400 | $16.14 | |
| 11 | DC socket combinationB13717500 $16.86 |
B13717500 | $16.86 | |
| 12 | USB output base combinationB13253000 $63.52 |
B13253000 | $63.52 | |
| 13 | Front CameraB13610100 $270.00 |
B13610100 | $270.00 | |
| 14 | Main RelayB13773510 $49.72 |
B13773510 | $49.72 | |
| 15 | 200A FUSE BOXPJ00000383500200 $54.97 |
PJ00000383500200 | $54.97 | |
| 16 | Accelerator Pedal ModuleP321001379410001 $79.61 |
P321001379410001 | $79.61 | |
| 17 | ECU controller componentsB13920030 $3,888.10 |
B13920030 | $3,888.10 | |
| 18 | Low Frequency AntennaB13862000 $21.58 |
B13862000 | $21.58 | |
| 19 | bolt M4×20BGB70-M4×20 $0.49 |
BGB70-M4×20 | $0.49 | |
| 20 | Washer 4BGB97.1-4 $0.10 |
BGB97.1-4 | $0.10 | |
| 21 | Spring washer 4BGB93-4 $0.10 |
BGB93-4 | $0.10 |
Description
electrical components el jefe
