Wheel hub connector

$250.00 View Item

Inner hex screw M10× 1.25×25

$0.69 View Item

Biserial angular contact ball bearing DAC509040

$88.70 View Item

Two-layer circlip for hole φ97.76×φ6.35×2.82

$11.91 View Item

Disc brake inlay bracket

$33.41 View Item

Inner hex screw M10× 1.25×35

$0.69 View Item

Inner hex flat head screw M8×20

$0.32 View Item

Hub bolt M12×1.5

$3.16 View Item

Front left brake pad

$92.34 View Item

Brake caliper mount

$160.99 View Item

Arc gasket

$11.21 View Item

CV shaft nut M22×1.5

$17.42 View Item

Wheel nut lock plate

$7.70 View Item

Wheel hub gasket

$10.13 View Item

Inner hex cylinder head screw M5×20

$0.20 View Item

Rear right

$67.03 View Item

Product Mapper

Item Number Description Part Number Price
1
Wheel hub connector
B14611100 $250.00 		B14611100 $250.00
2
Inner hex screw M10× 1.25×25
B19050900 $0.69 		B19050900 $0.69
3
Biserial angular contact ball bearing DAC509040
B15210600 $88.70 		B15210600 $88.70
4
Two-layer circlip for hole φ97.76×φ6.35×2.82
B14101100 $11.91 		B14101100 $11.91
5
Disc brake inlay bracket
B14411300 $33.41 		B14411300 $33.41
6
Inner hex screw M10× 1.25×35
B19050800 $0.69 		B19050800 $0.69
7
Inner hex flat head screw M8×20
BGB70.2-M8×20 $0.32 		BGB70.2-M8×20 $0.32
8
Hub bolt M12×1.5
B19020100 $3.16 		B19020100 $3.16
9
Front left brake pad
B14445100 $92.34 		B14445100 $92.34
10
Brake caliper mount
B15330600 $160.99 		B15330600 $160.99
11
Arc gasket
B12611300 $11.21 		B12611300 $11.21
12
CV shaft nut M22×1.5
B12611100 $17.42 		B12611100 $17.42
13
Wheel nut lock plate
B15150B00 $7.70 		B15150B00 $7.70
14
Wheel hub gasket
B14651200 $10.13 		B14651200 $10.13
17
Inner hex cylinder head screw M5×20
BGB70.1-M5×20 $0.20 		BGB70.1-M5×20 $0.20
18
Rear right
B14445200 $67.03 		B14445200 $67.03
Description

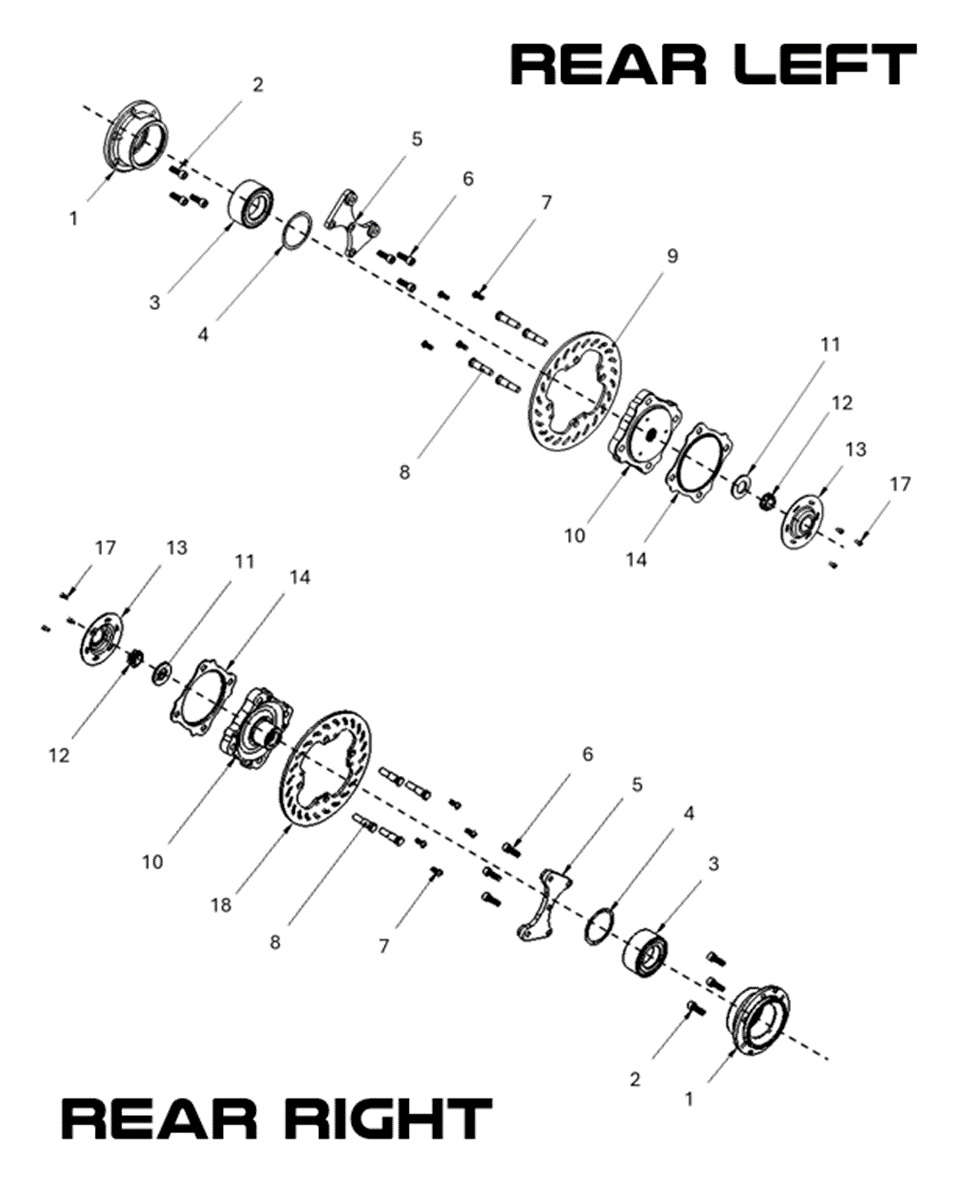

rear wheel hub eldiablo
